Disabling System
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2000 BMW Z3, 2000 BMW 328i, 2000 BMW 323i, 1999 BMW Z3, and 1999 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Retrieve fault codes before disconnecting battery. Ensure that ignition is off. Disconnect and shield the negative battery cable. Wait at least 5 minutes for energy capacitor in the SRS control unit to discharge.

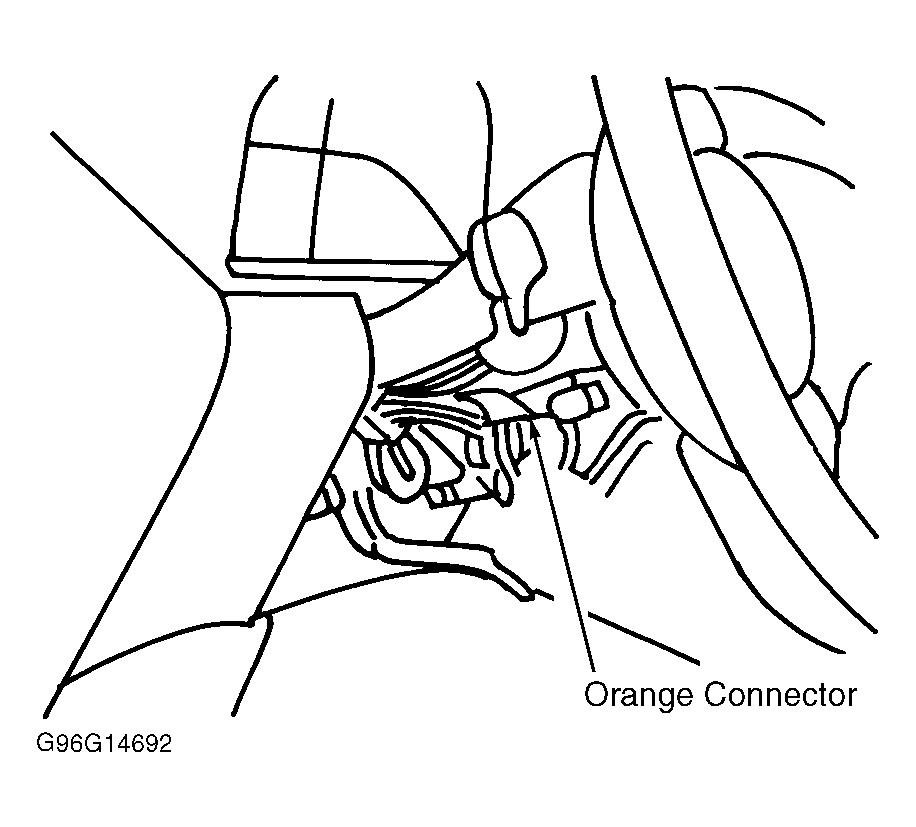

- Remove steering column lower casing cover. See Fig 1 . Remove Orange SRS connector from its holder on steering column. Disconnect Orange SRS connector. Remove glove box and disconnect both Orange SRS connectors from passenger-side air bag module. System is now disabled.
