84 11 610 Removing and installing/replacing eject box (cordless keypad handset)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

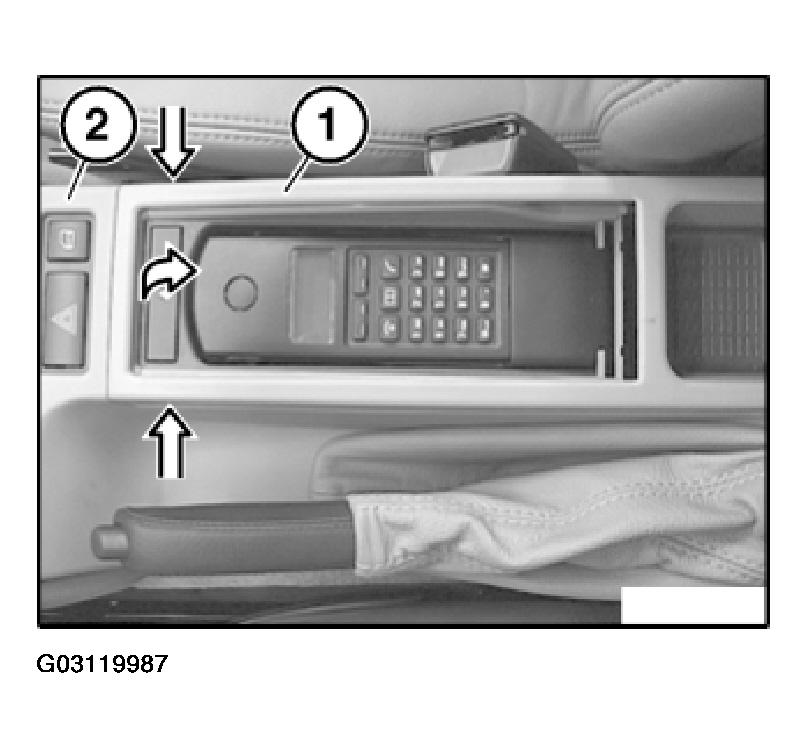

Unlock insert in storage tray (1) on both sides in direction of arrow and remove upwards from storage tray (2).

Fig 1: Unlocking Insert In Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

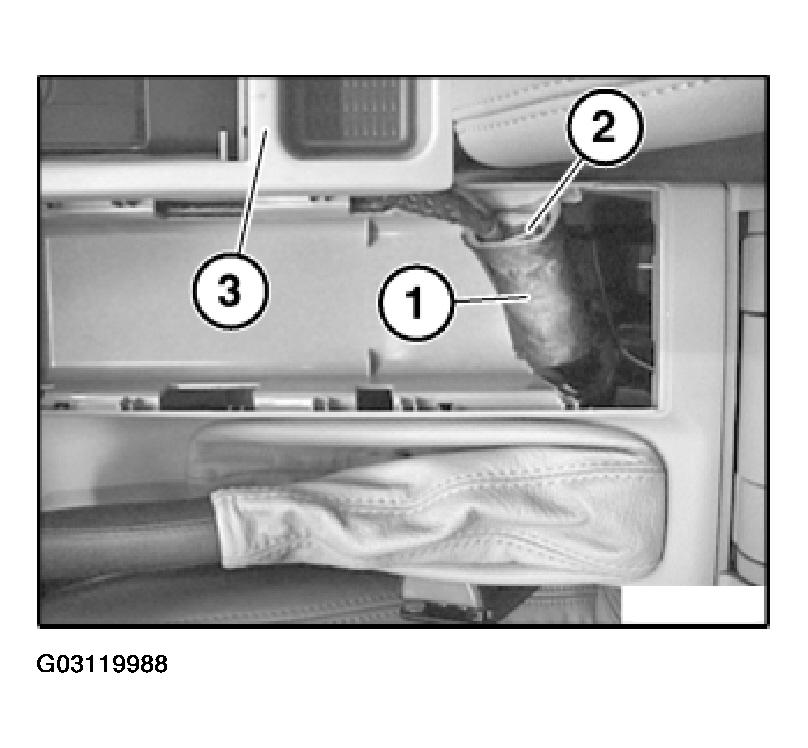

Push foam insulation (1) back a little and disconnect plug connection (2).

Fig 2: Removing Insert In Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insert in storage tray (3).

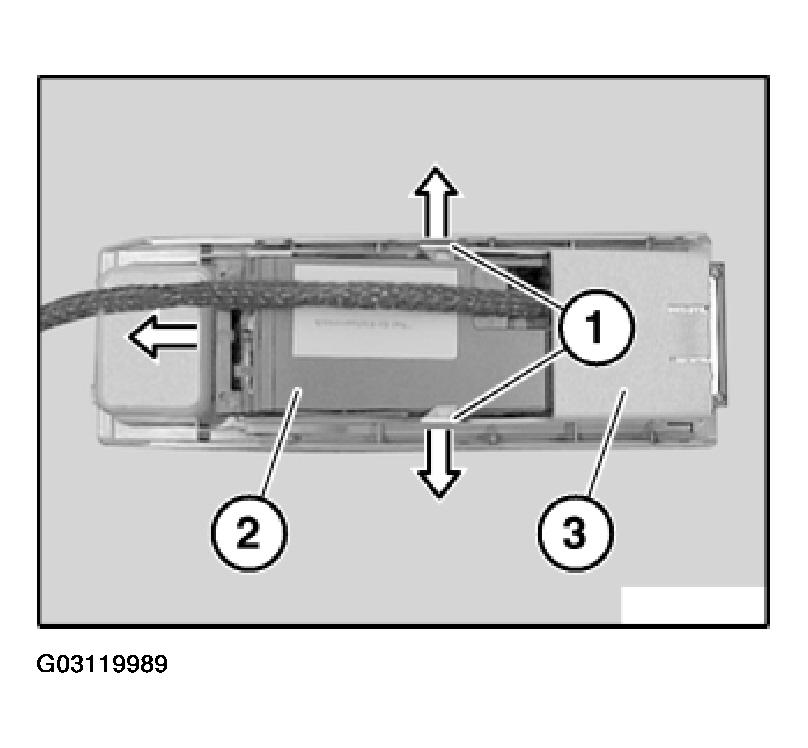

Unlock retainer (1) on both sides and remove eject box (2) in direction of arrow from insert in storage tray (3).

Fig 3: Removing Eject Box

Courtesy of BMW OF NORTH AMERICA, INC.
