84 11 530 Removing and installing / replacing interface for D-Network car phone
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install center console, refer to 51 16 200 REMOVING AND INSTALLING STORAGE TRAY .

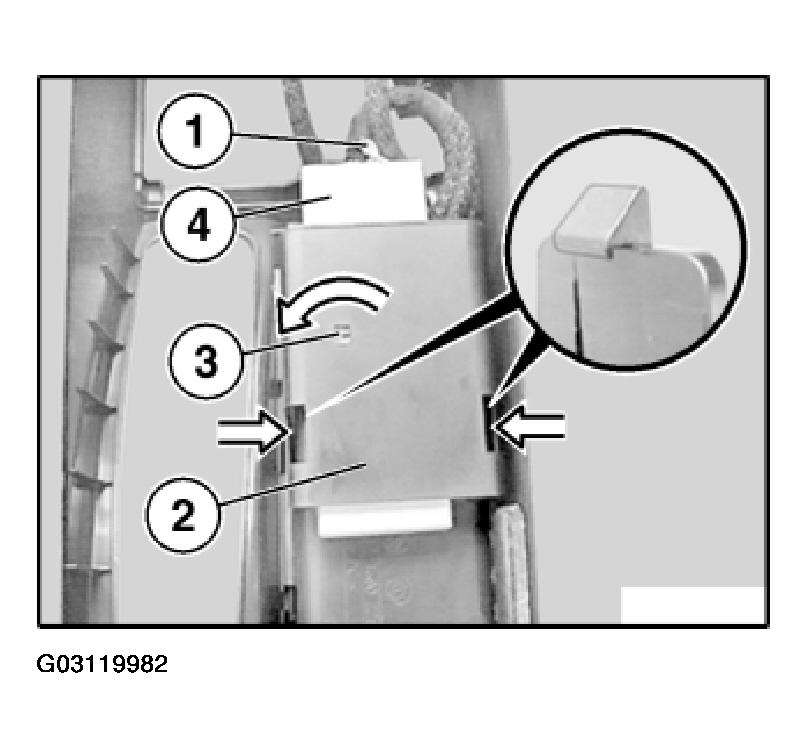

Unfasten plug connection (1). Unclip bracket (2). Remove interface (4).
Installation:
- Ensure guide (3) is correctly seated.
