84 50 050 Removing and installing / replacing basic antenna

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove oddments tray. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE TRAY .

Disconnect plug connection (1) and remove basic antenna (2).

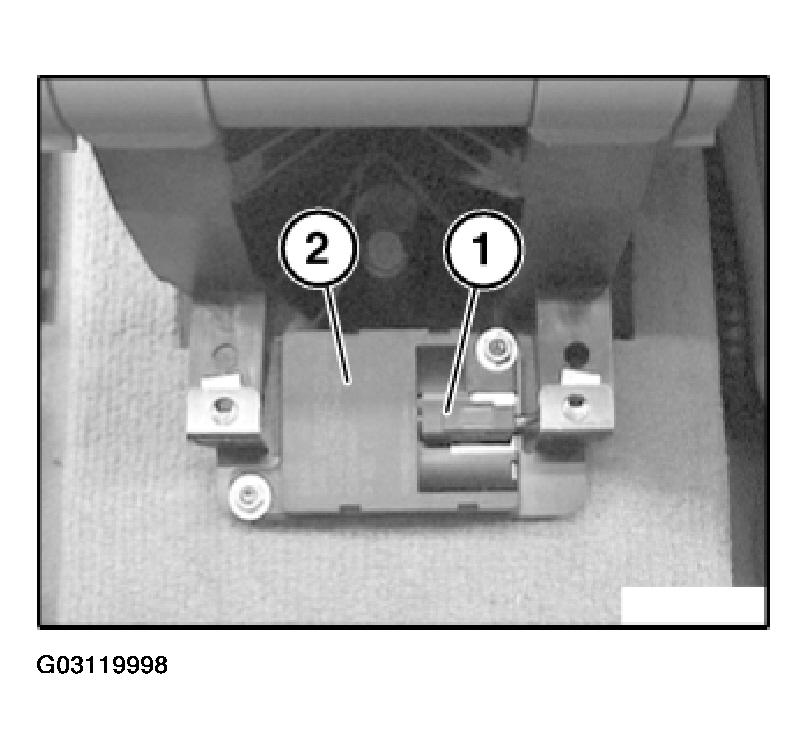

Fig 1: Removing Basic Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure basic antenna (2) is correctly positioned.

Replacement:

Unscrew nuts (1).

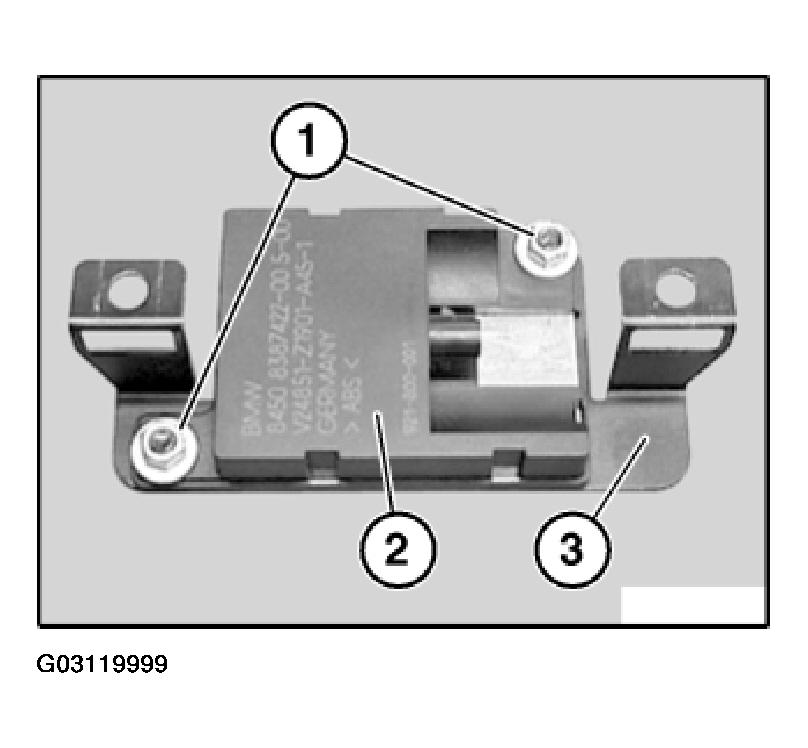

Fig 2: Removing Basic Antenna From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove basic antenna (2) from holder (3).
