65 81 060 Removing and installing/replacing external temperature sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020

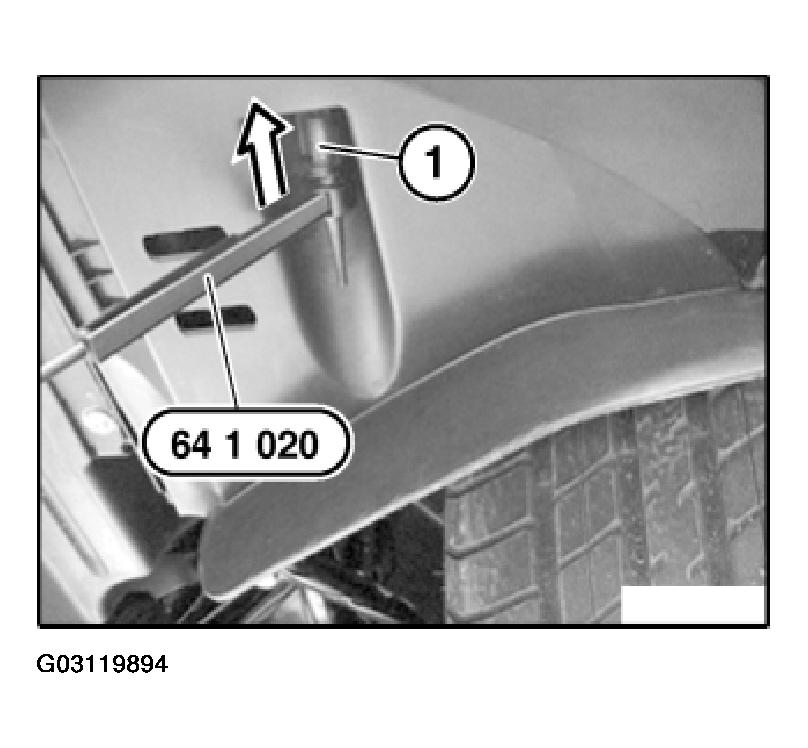

Expand mount for outside temperature sensor with special tool 64 1 020 and feed out outside temperature sensor (1) in direction of arrow.
Pull out ambient temperature sensor (1).
Disconnect plug connection and remove ambient temperature sensor (1).
Installation:
Make sure ambient temperature sensor (1) engages correctly in its mount.
