65 90 510 Removing and installing/replacing navigation computer with CD-drive: Touring:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in luggage compartment trim panel on left.

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.

Unlock plug connections behind and disconnect.

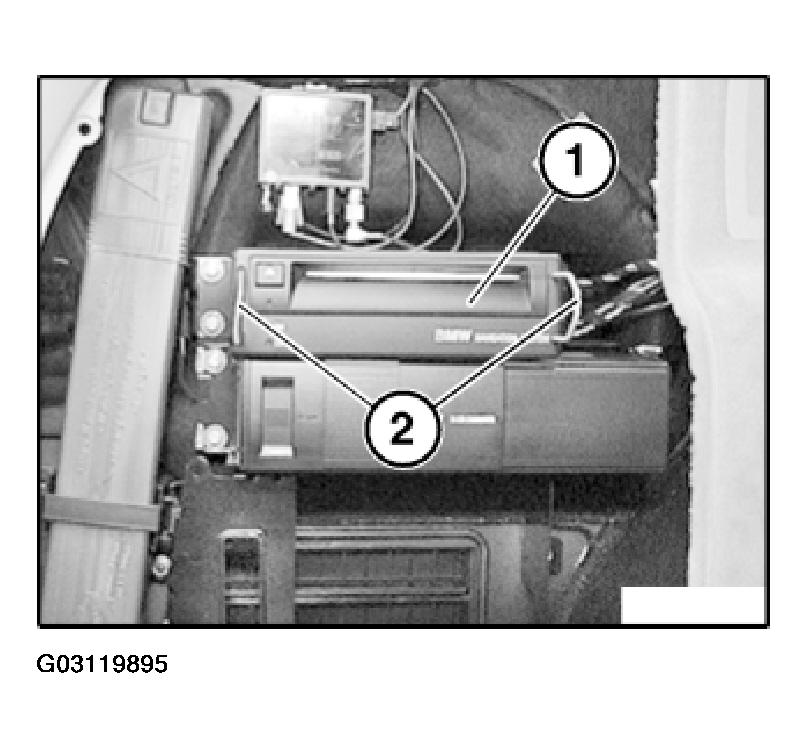

Fig 1: Removing Navigation Computer

Courtesy of BMW OF NORTH AMERICA, INC.
