65 75 565 Removing and installing/replacing ultrasound module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

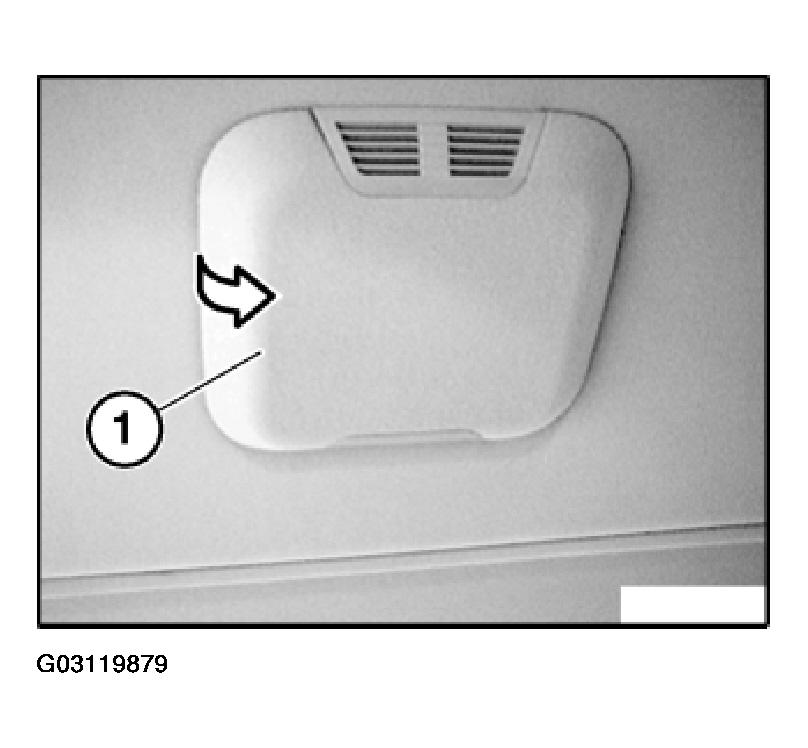

Remove trim (1) and disconnect plug connection.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

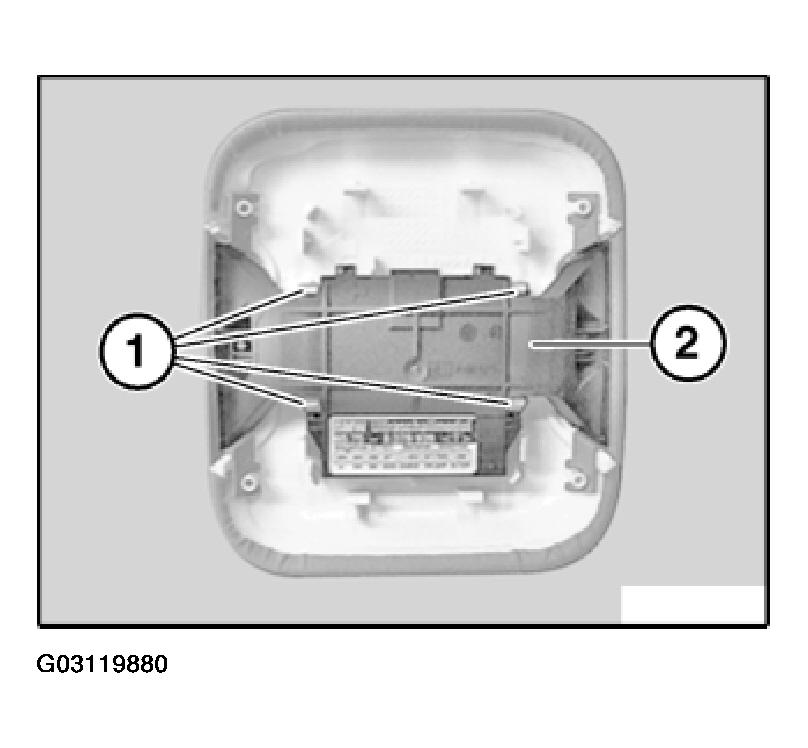

Lever out retaining clips (1) and remove ultrasound module (2).

Fig 2: Removing Ultrasound Module

Courtesy of BMW OF NORTH AMERICA, INC.
