Saloon/Sedan, Touring:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

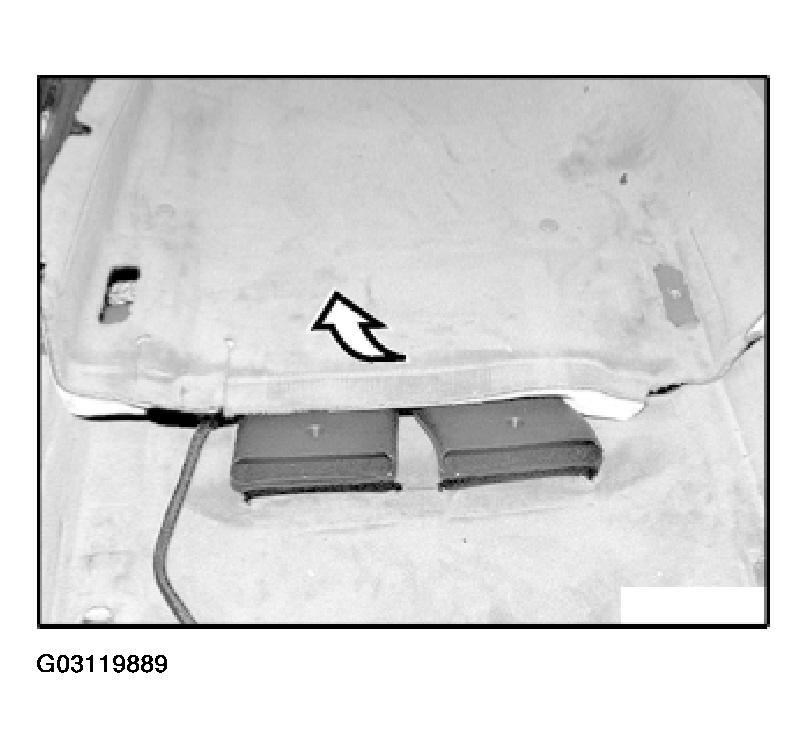

Fold up carpet in area of front seat. If necessary, remove rear compartment heating duct.

Fig 1: Removing Rear Compartment Heating Duct

Courtesy of BMW OF NORTH AMERICA, INC.

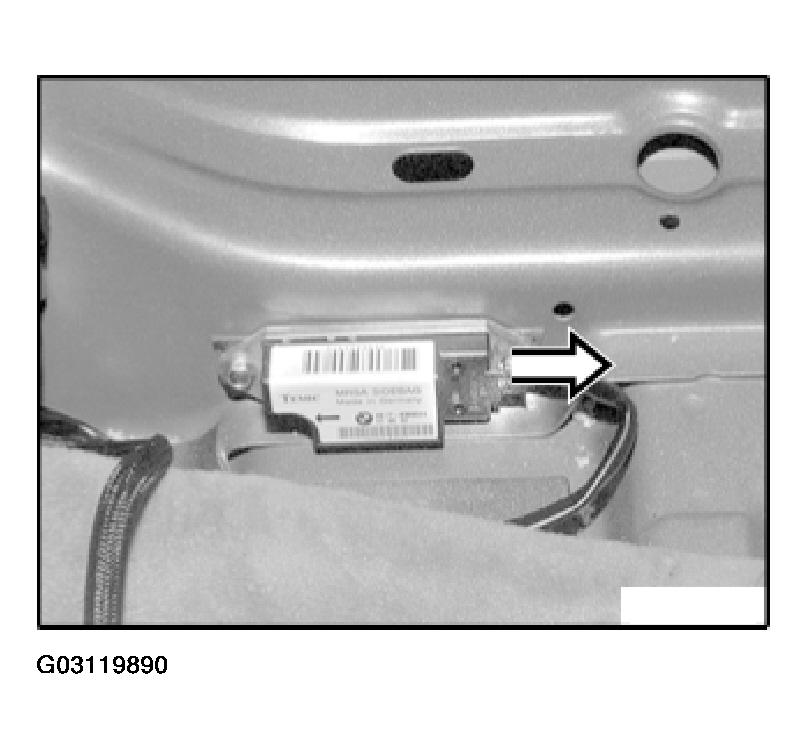

Disconnect plug.

Fig 2: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

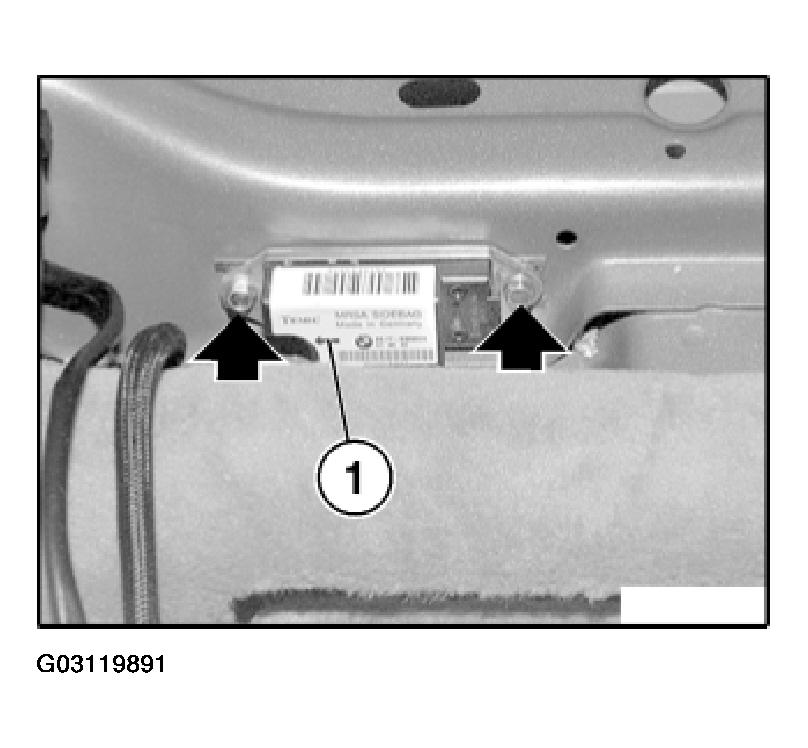

Release screws and remove impact sensor for side AIRBAG.

Fig 3: Removing Impact Sensor For Side AIRBAG

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Arrow (1) on impact sensor for side AIRBAG must point to sill.

Observe tightening torque, 5.5 Nm.
