64 11 992 Removing and installing/replacing solar sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim panel for instrument panel. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

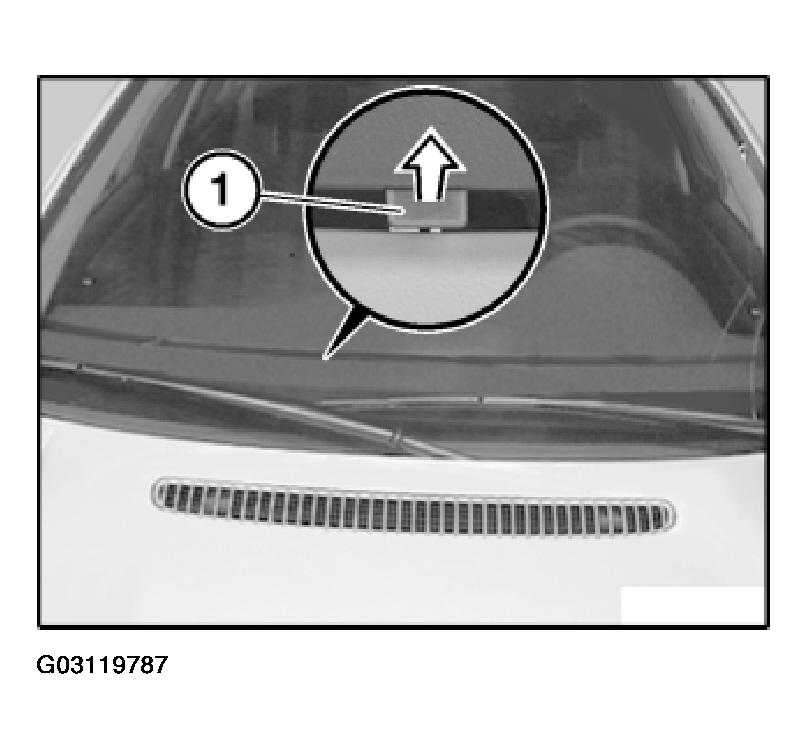

Unclip cable and pull out solar sensor (1) in direction of arrow.
Installation:
Make sure solar sensor (1) is correctly installed and wiring is properly routed.
