64 11 800 Replacing servodrive on gear for flap control (A/C control)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove housing for glovebox and cover on equipment carrier at bottom. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Move rotary knob (1) into position illustrated.

Fig 1: Moving Rotary Knob Into Position

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

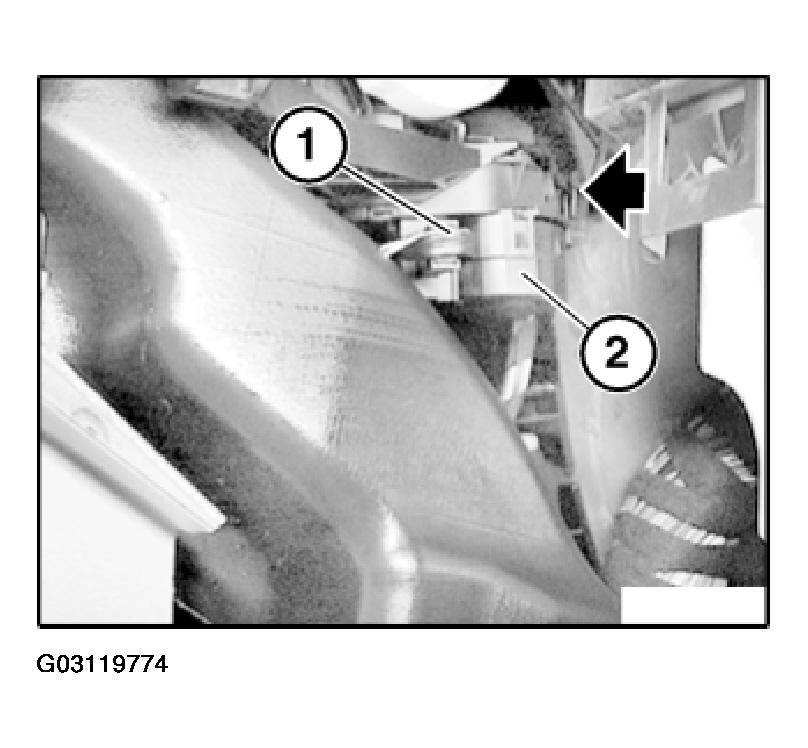

Fig 2: Removing Servo-Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock servo-drive (2) and remove towards bottom.

Installation:

If necessary, align shaft for defrosting flaps and drive (see illustration).

Fig 3: Aligning Shaft For Defrosting Flaps And Drive

Courtesy of BMW OF NORTH AMERICA, INC.
