64 53 510 Removing And Installing / Replacing Drier Flask For Air Conditioner

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A/C system is drawn off. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Follow instructions for dryer bottle replacement. Refer to 64 53... NOTES ON REPLACING DRIER BOTTLE OR DRIER INSERT .

M3 only:

Remove right headlight. Refer to 63 12 002 REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT or 63 12 006 REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT (XENON HEADLIGHT) .

All except M3:

Remove fluid reservoir for windshield washer system.

All:

Unfasten screws.

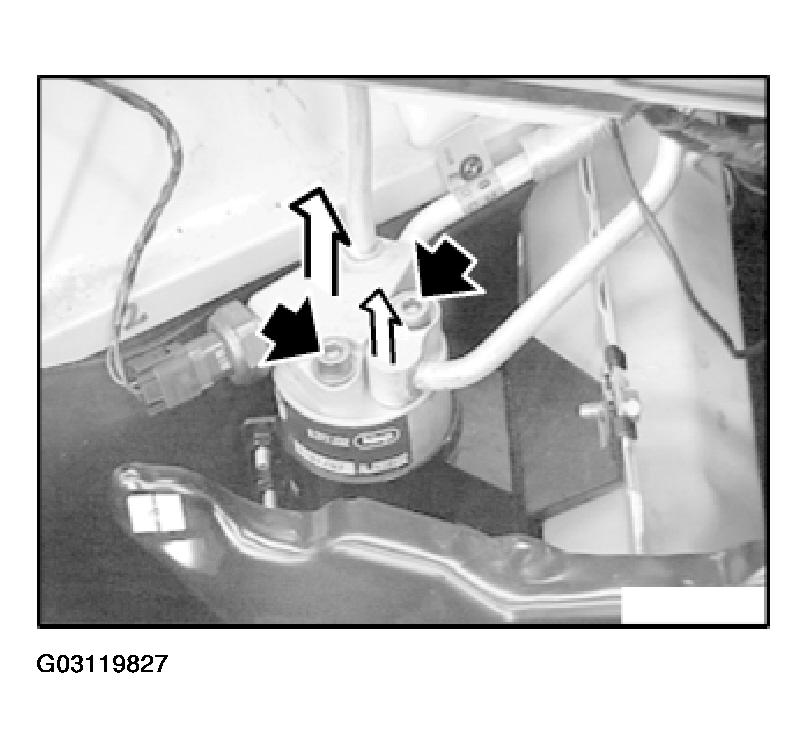

Fig 1: Detaching Pressure And Suction Pipes
