63 13 150 Removing And Installing/Replacing Complete Front Left Or Right Turn Signal Lamp: All:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

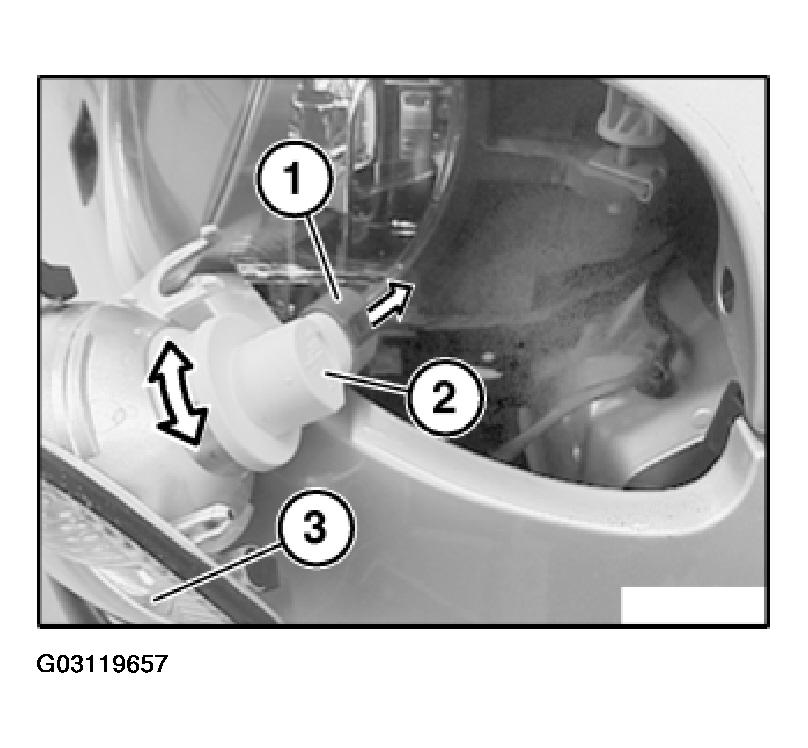

Fig 1: Removing Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Turn signal lamp, front left:

To release, turn bulb holder (2) clockwise.

Turn signal lamp, front right:

To release, turn bulb holder (2) counterclockwise.

Turn bulb holder (2) and remove turn signal lamp (3).

Installation:

Make sure seal is correctly seated between bulb holder (2) and turn signal lamp (3).
