63 99 295 Replacing bulb for auxiliary turn indicator light, front left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove additional front turn signal lamp. Refer to 63 13 200 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT ADDITIONAL TURN SIGNAL LAMP (COUPE, CONVERTIBLE, COMPACT) .

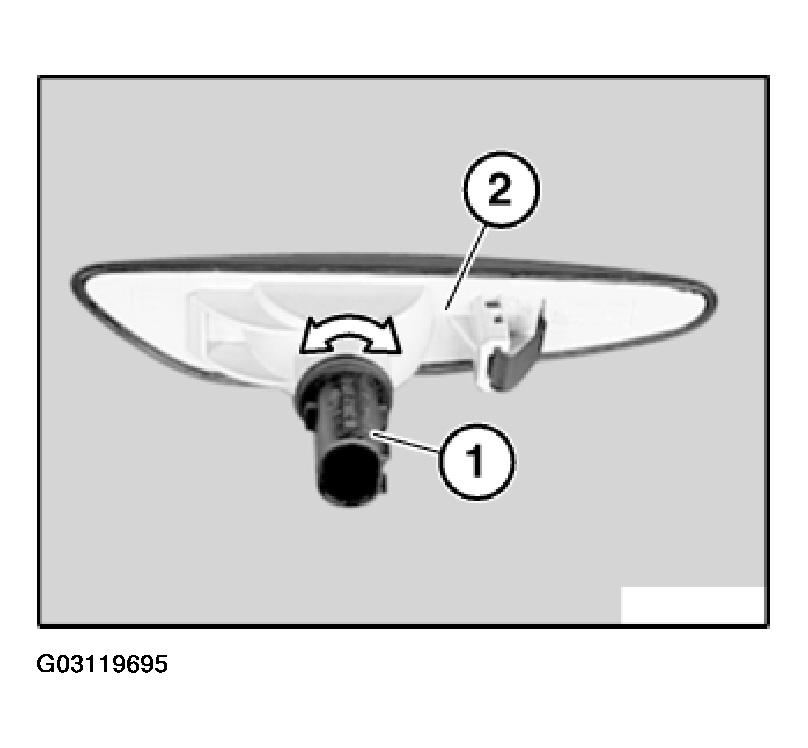

Turn bulb holder (1) and remove from additional front turn signal lamp (2).

Fig 1: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Additional turn signal lamp, front left:

To open, turn bulb holder (1) counterclockwise.

Additional turn signal lamp, front right:

Saloon/sedan, touring from 09/2001: To open, turn bulb holder (1) clockwise.

All others: To open, turn bulb holder (1) counterclockwise.

Pull bulb out of holder (1).

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - 3-SERIES (E46) .
