63 99 273 Replacing Bulb For Turn Indicator, Front Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Coupe/Convertible from 03/2003:

Turn bulb holder for turn indicator bulb (1) in direction of arrow and pull out of headlight (2) towards rear.

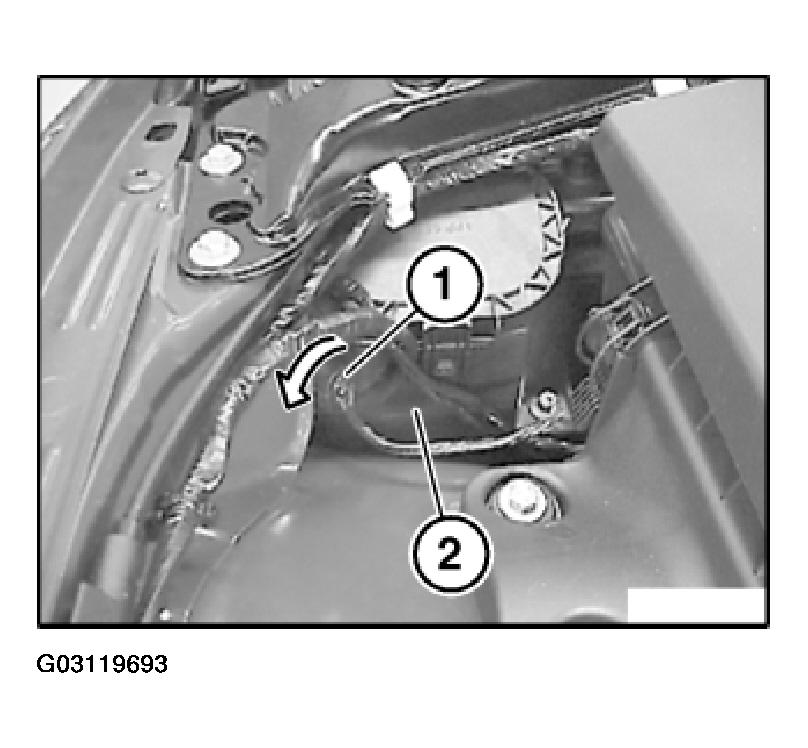

Fig 1: Removing Bulb Holder For Turn Indicator Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb for turn indicator (1) out of turn indicator bulb holder (2).

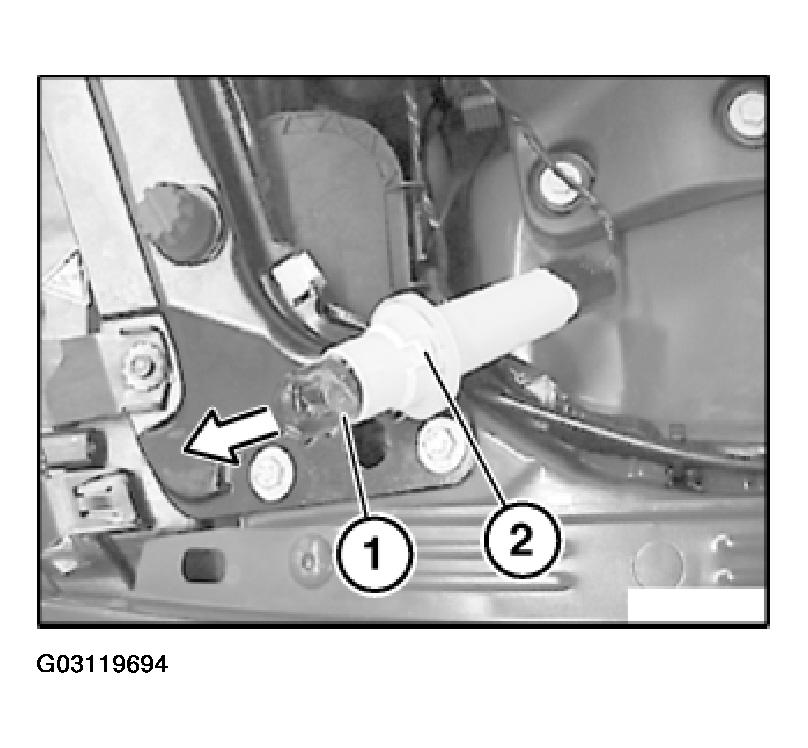

Fig 2: Removing Bulb For Turn Indicator

Courtesy of BMW OF NORTH AMERICA, INC.

All others:

Necessary preliminary tasks:

Remove complete front turn-signal lamp. Refer to 63 13 150 REMOVING AND INSTALLING/REPLACING COMPLETE FRONT LEFT OR RIGHT TURN SIGNAL LAMP .
Remove bulb.

All:

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - 3-SERIES (E46) .
