All models except US:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

M54 only:

Release intake filter housing and place to one side.

Turn bulb holder for side marker lamp in direction of arrow and pull out towards rear.

Fig 1: Removing Side Marker Lamp Bulb Holder
G03119690Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw bulb from bulb holder for side marker lamp.

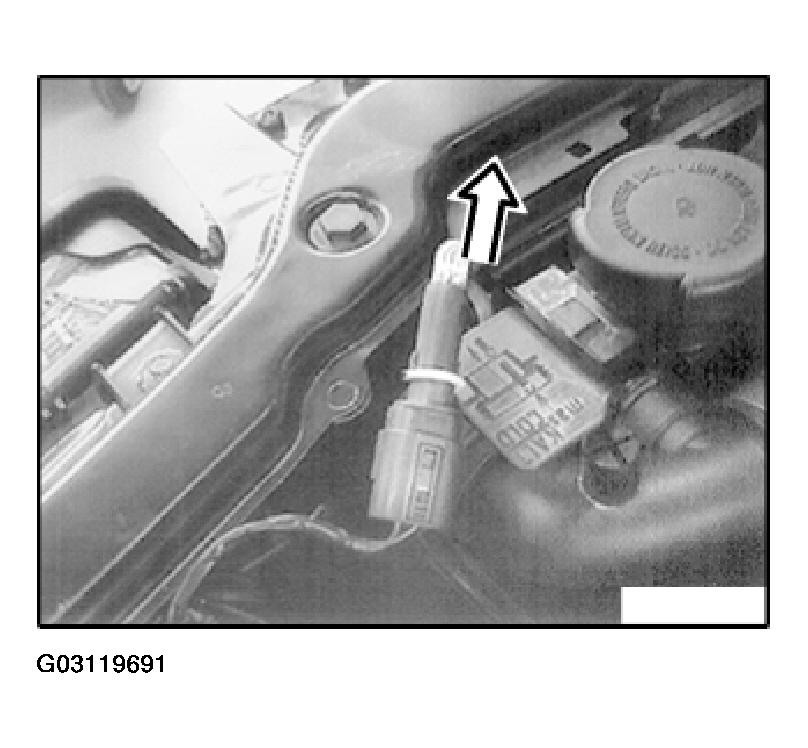

Fig 2: Removing Bulb From Bulb Holder
G03119691Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - 3-SERIES (E46) .
