Coupe/Convertible from 03/2003:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

N40 only:

Detach intake muffler housing and place to one side.

NOTE: For purposes of clarity, illustration shows removed headlight.

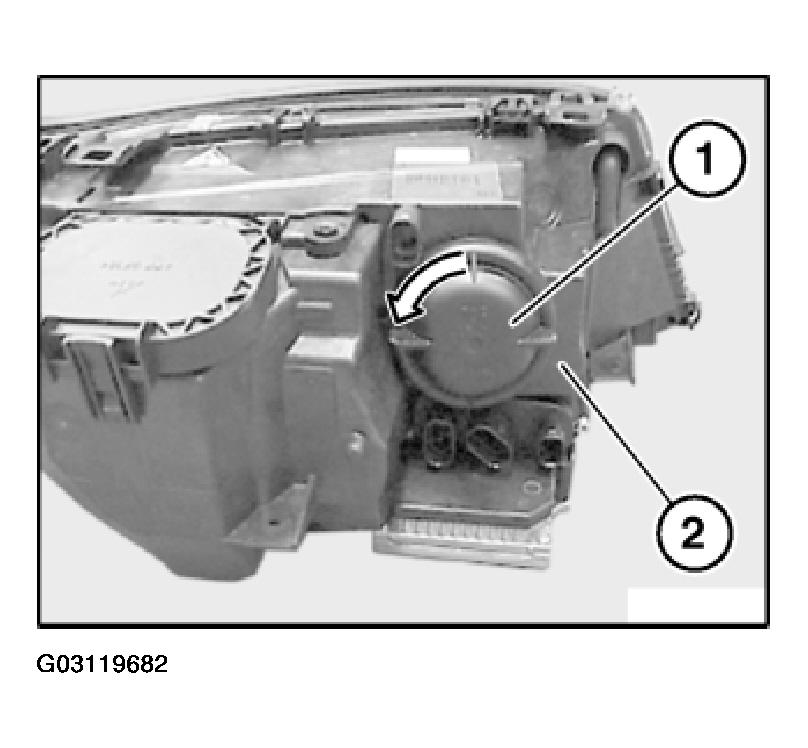

Turn protective cap (1) in direction of arrow and remove from headlight (2).

Fig 1: Removing Protective Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

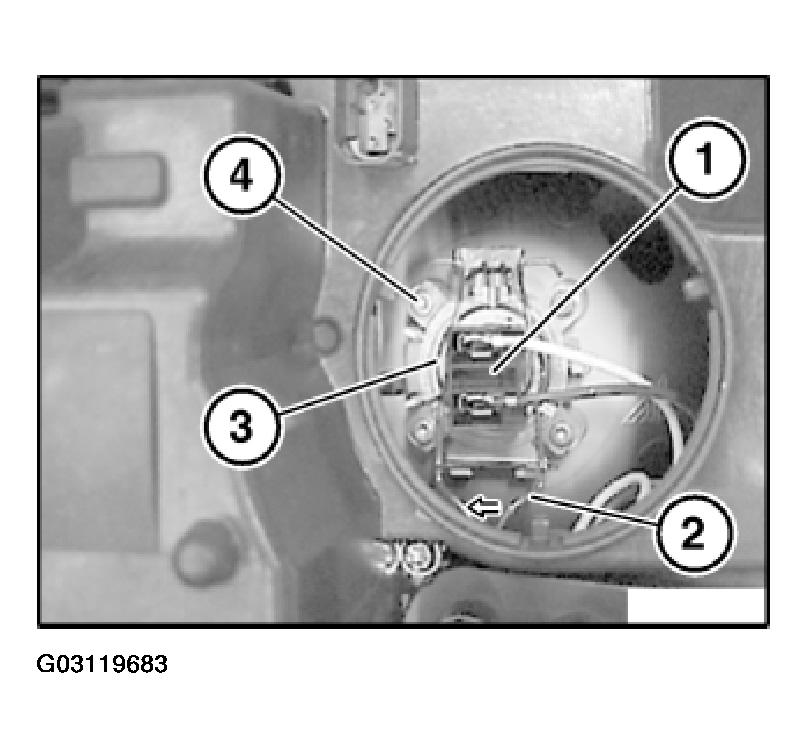

Fig 2: Removing Bulb From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect locking clip (2) in direction of arrow and fold upwards.

Remove bulb (3) from headlight (4).
