WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection and disconnect.

Turn retaining ring in direction of arrow and remove bulb holder towards rear.

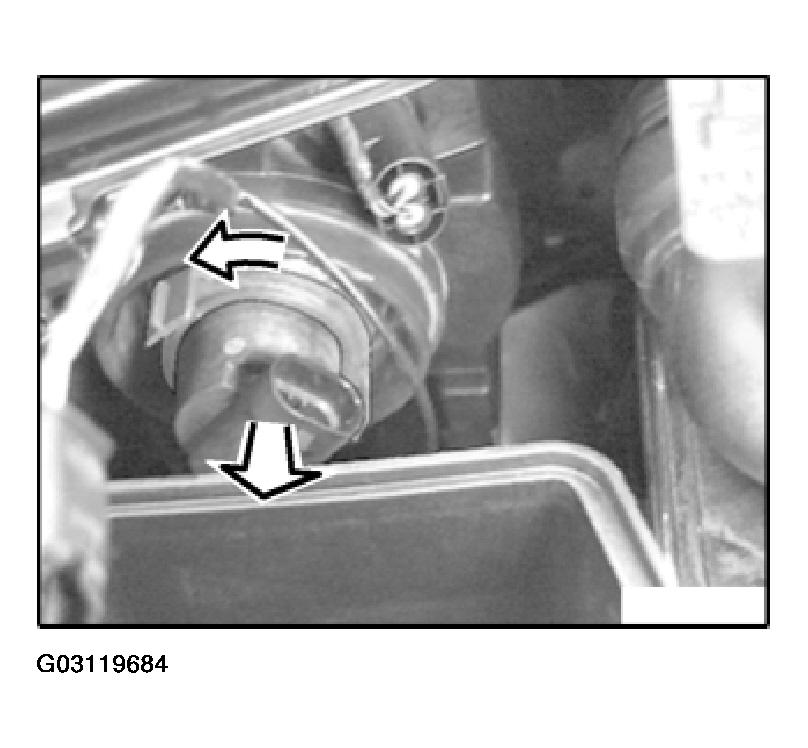

Fig 1: Removing Bulb Holder
G03119684Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: If retaining ring is tightly seated, press bulb holder forwards.

Remove bulb from bulb holder.
