63 12 895 Replacing Drive For Left Adaptive Directional Headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary preliminary tasks:

Remove left headlight. Refer to 63 12 010 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .

Release screws (1).

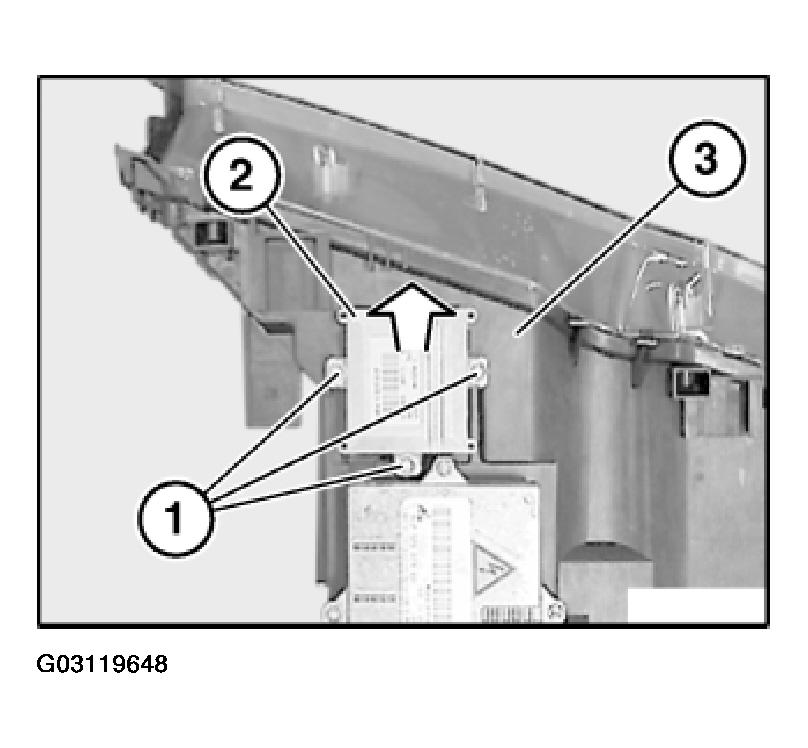

Fig 1: Removing Drive For Adaptive Directional Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive for adaptive directional headlight (2) in direction of arrow from headlight (3).

Installation:

Fit drive for adaptive directional headlight (1) exactly on headlight.

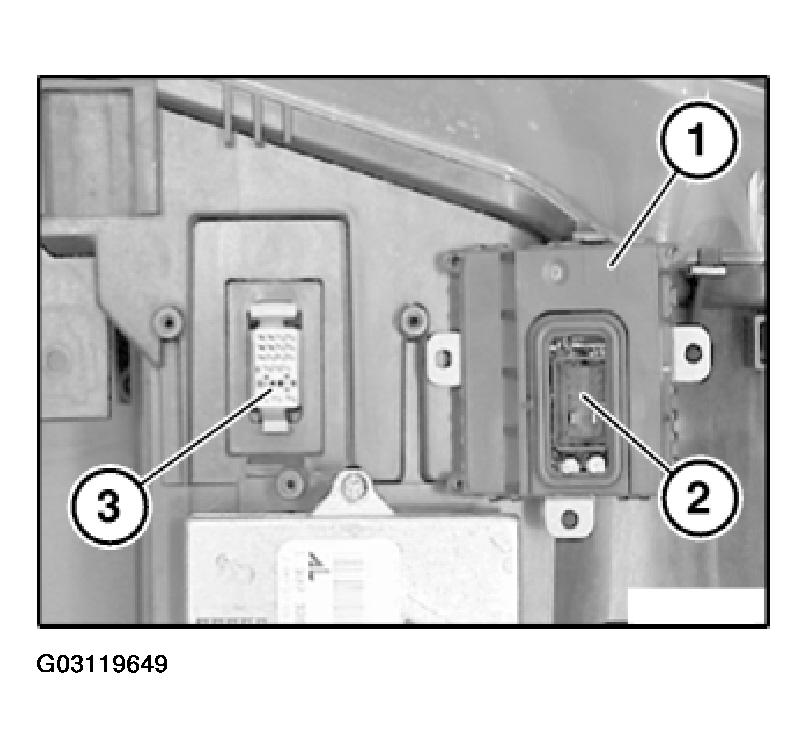

Fig 2: Fitting Drive For Adaptive Directional Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure pin housing (2) is correctly seated in plug housing (3).

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .
