Build status up to 03/2003:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left headlight (xenon headlight). Refer to 63 12 005 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .
Remove left headlight insert (xenon headlight). Refer to 67 16 011 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT VERTICAL AIM ADJUSTER (XENON HEADLIGHT) .

Unfasten plug connection (1) and disconnect.

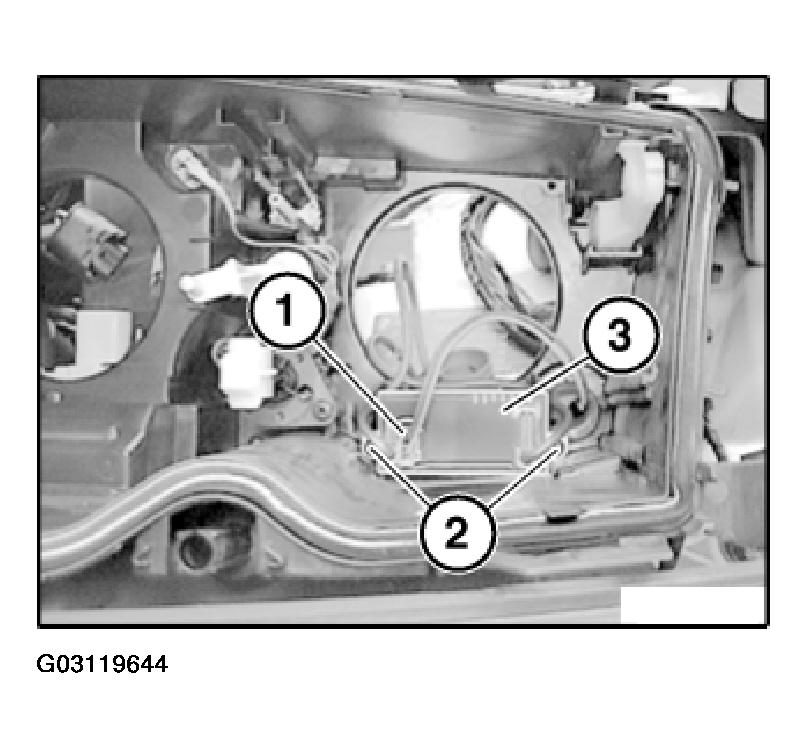

Fig 1: Removing Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove xenon headlight for xenon headlight (3).
