Build status from 03/2003:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

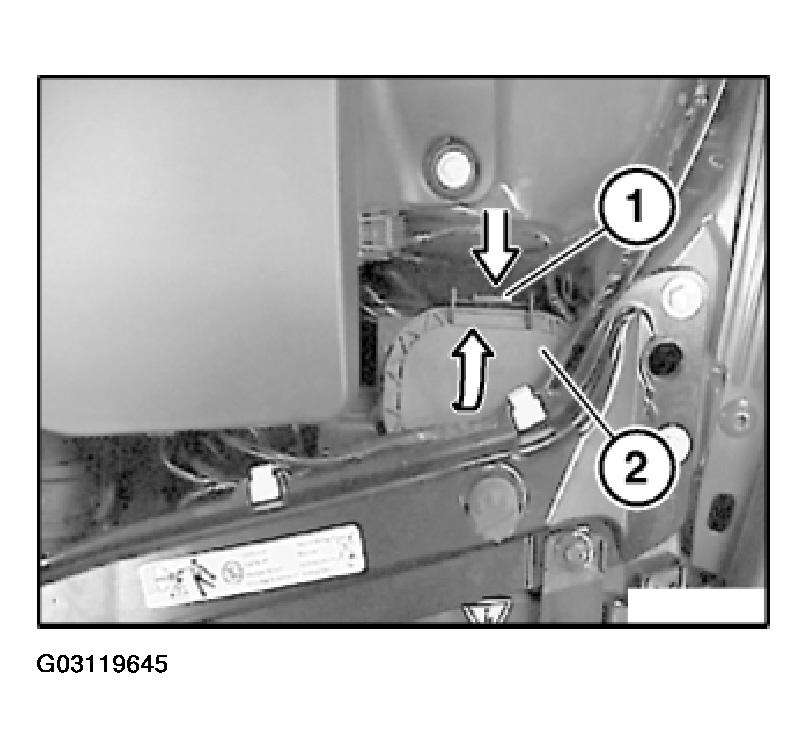

Unlock catch (1) and feed out/remove cover (2) in direction of arrow.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

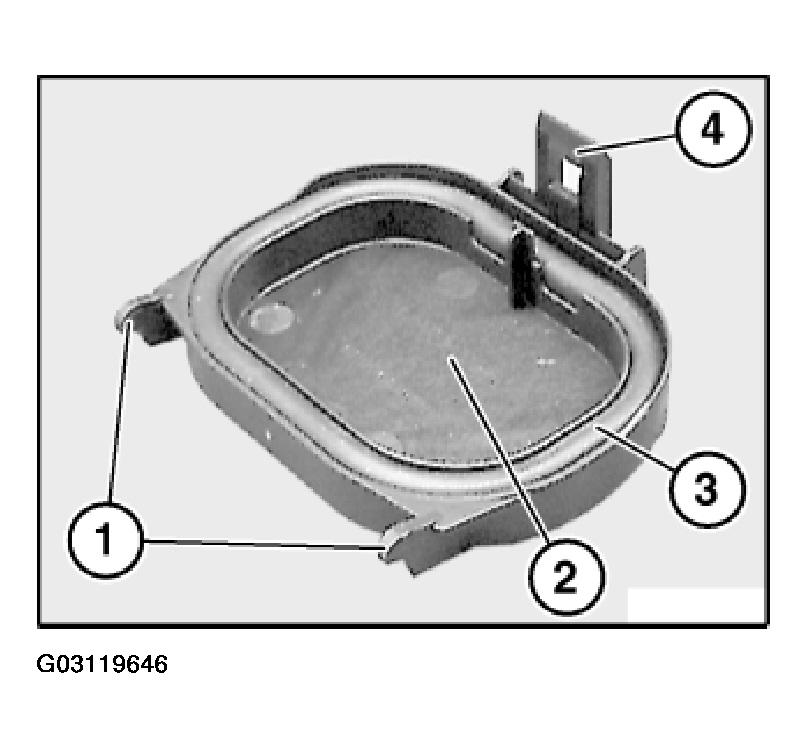

Make sure retaining lugs (1), cover (2) and seal (3) are exactly seated.

Fig 2: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Catch (4) must be fully locked.

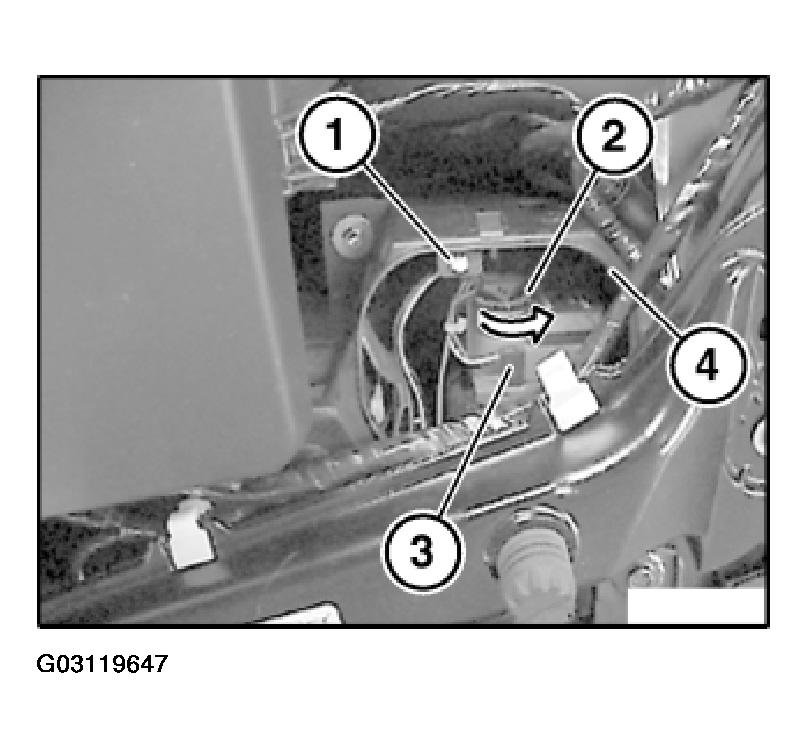

Unclip electrical lead at point (1).

Fig 3: Locating Electrical Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Turn ignition unit for xenon headlight (2) approx. 30° in direction of arrow and detach.

Plug connection (3) is automatically released by turning ignition unit for xenon headlight (2).

Installation:

Make sure ignition unit for xenon headlight (2) is correctly engaged.
