61 71 004 Adjusting windshield washer spray nozzles

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The sprays must strike in the center of the area. Measurements apply to LHD models.
Measurements are mirror-inverted for RHD models. Reference edge: windshield seal.

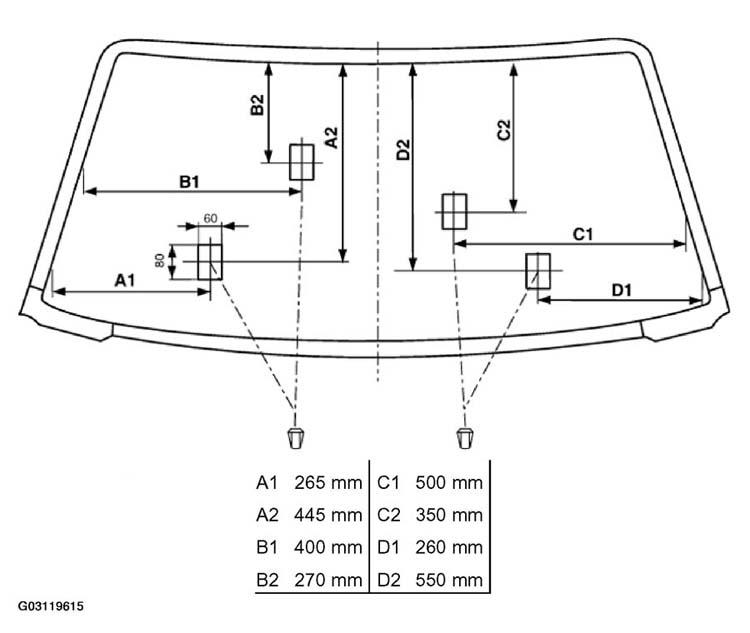

Fig 1: Identifying Dimensions Of Spray Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark points of contact with adhesive tape.

Adjust spray nozzles using special tool 00 9 200.

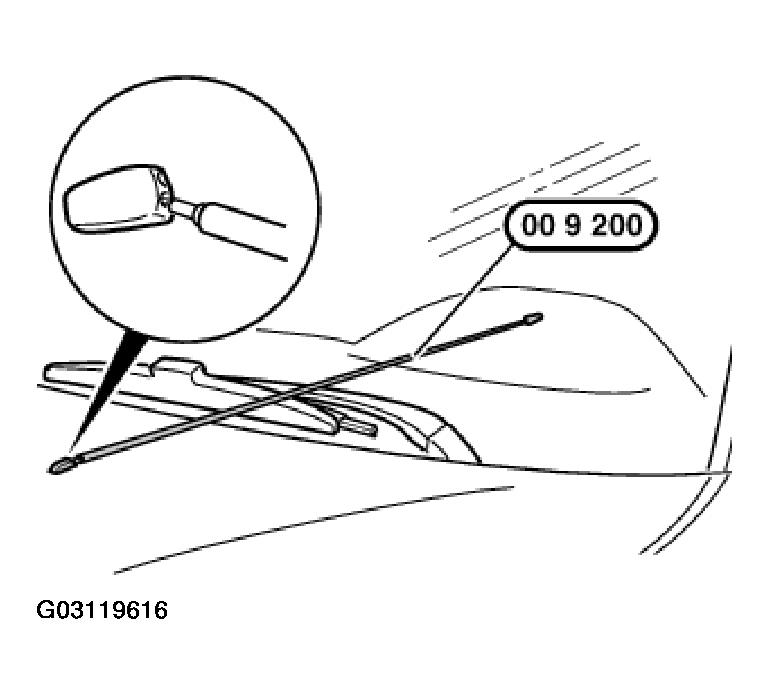

Fig 2: Adjusting Spray Nozzles

Courtesy of BMW OF NORTH AMERICA, INC.
