61 67 040 Adjusting Spray Nozzles For Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9100
64 1 020

For further information on special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3-Series (M54/E46) .

Low-beam headlamp:

The spray contact point must be located in the center of the low-beam headlamp.

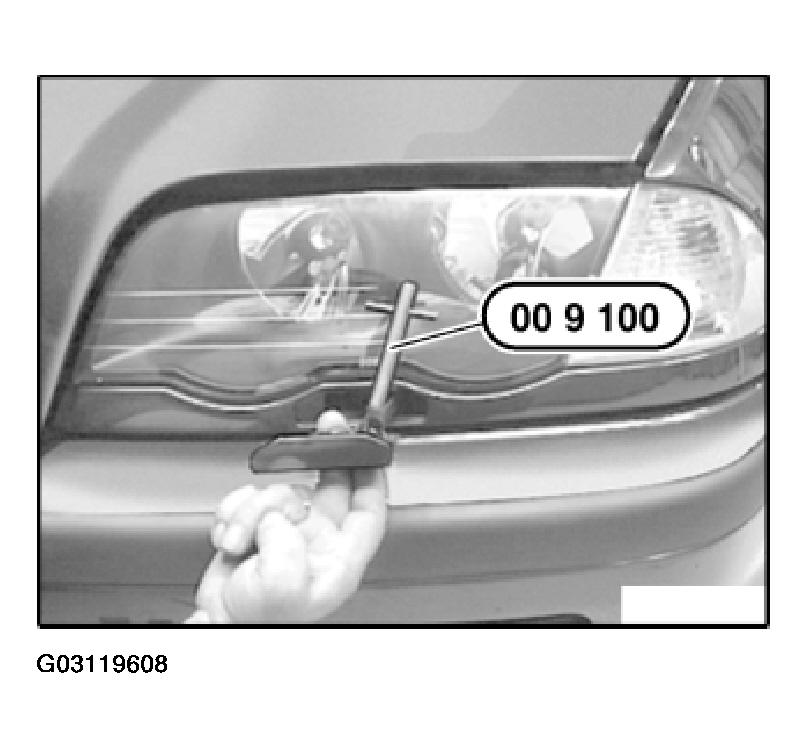

Fig 1: Adjusting Low-Beam Headlamp Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

To adjust, slowly pull out spray nozzle fully with aid of special tool 64 1 020 and adjust spray contact point with special tool 00 9 100.

High-beam headlamp:

The spray contact point must be located in the center of the high-beam headlamp.

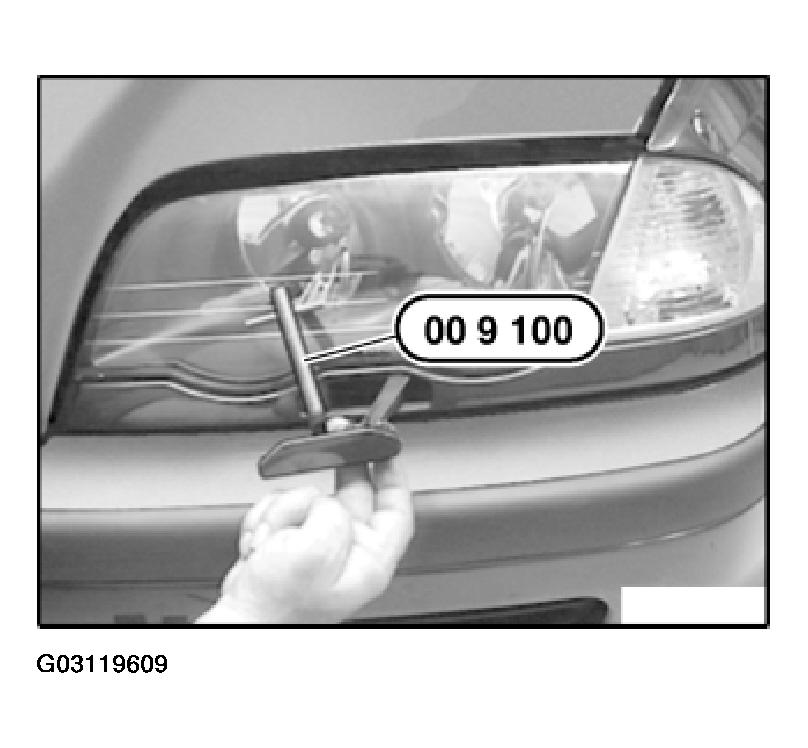

Fig 2: Adjusting High-Beam Headlamp Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

To adjust, slowly pull out spray nozzle fully with aid of special tool 64 1 020 and adjust spray contact point with special tool 00 9 100.

NOTE: After checking the contact points, turn ignition off and on again before repeating the spray procedure. The function of the headlight cleaning system is otherwise disabled for approx. 3 minutes. Refer to function description in Diagnosis and Information System.
