61 61 270 Removing and installing complete wiper console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cowl panel cover. Refer to 51 13 115 REMOVING AND INSTALLING/REPLACING COWL PANEL COVER .
Remove heater bulkhead. Refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

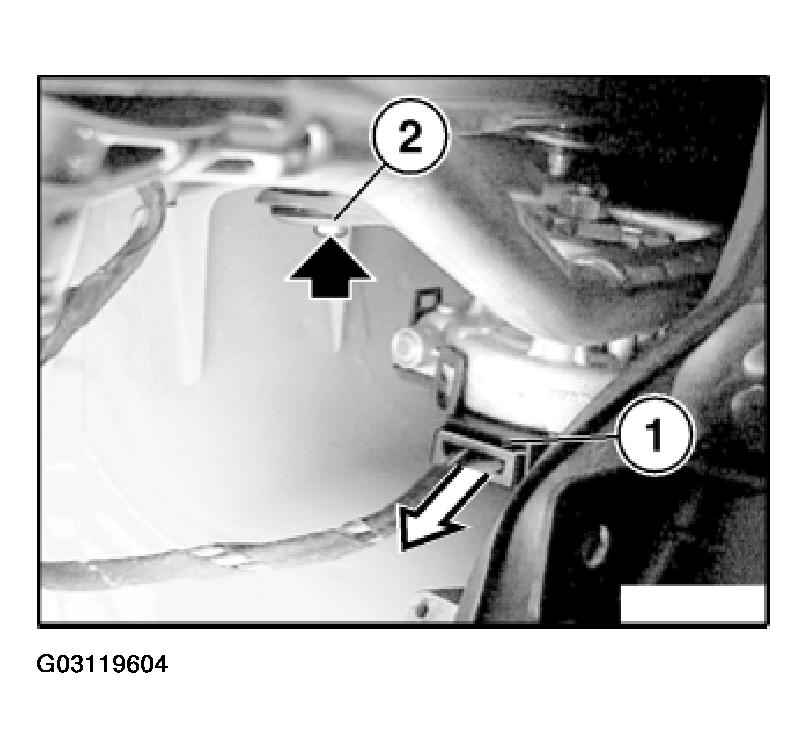

Unfasten plug connection (1) and disconnect. Unscrew bolt (2).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 61 61 6AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - 3-SERIES (E46) .

Installation:

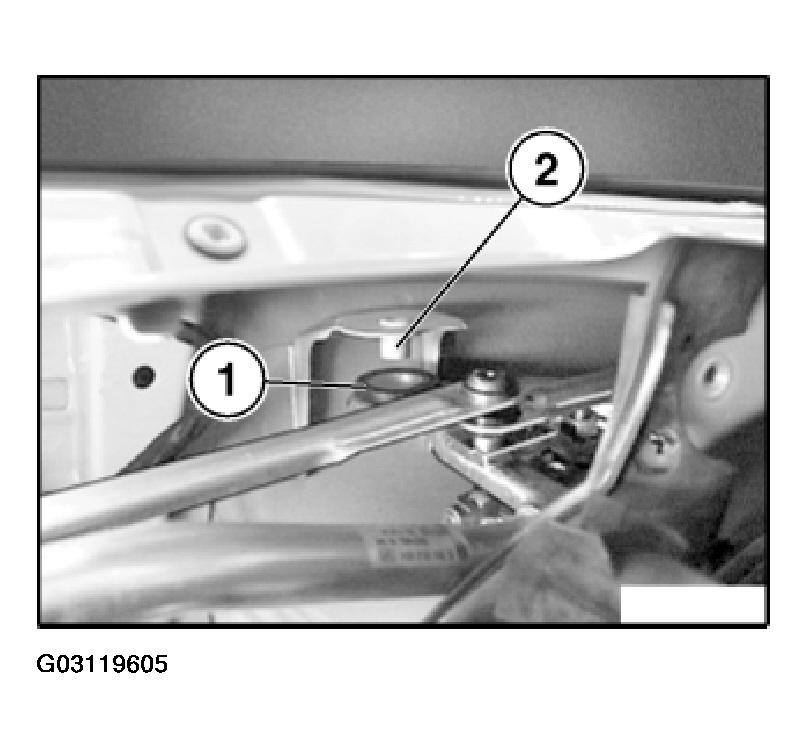

Fit rubber grommet (1) of wiper console on pin (2).

Fig 2: Fitting Rubber Grommet Of Wiper Console On Pin
Courtesy of BMW OF NORTH AMERICA, INC.

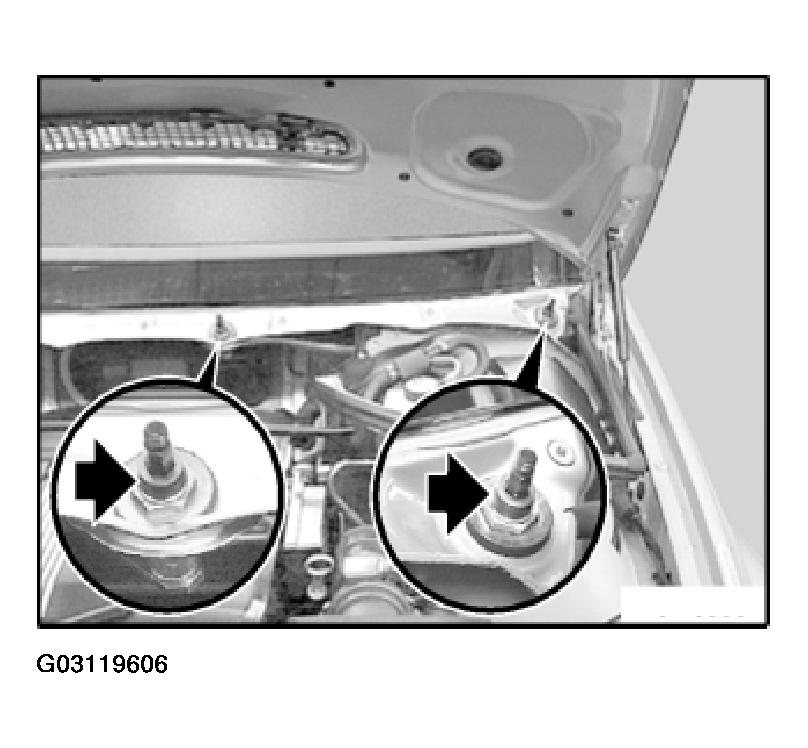

Release nuts and feed out complete wiper console through opening in heater bulkhead.

Fig 3: Feeding Out Wiper Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 61 61 5AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - 3-SERIES (E46) .
