61 61 010 Checking/adjusting approach angle of windshield wiper arms on front windscreen

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wiping quality is increased if the approach angle of the windshield wiper arms is precisely adjusted.

Place special tool 00 9 331 next to center of rotation of windshield wiper blade on windshield.

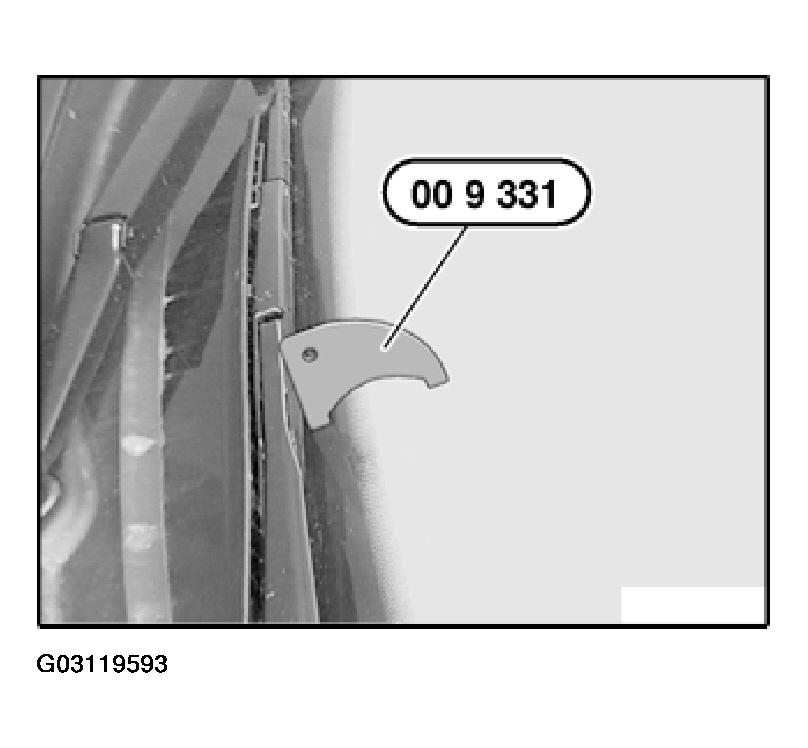

Fig 1: Placing Special Tool On Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To prevent scratching of wiper arm, cover wiper arm with fabric adhesive tape.

If the approach angle is too large (light gap at top between gauge and wiper blade), grip wiper arm special tool 00 9 332 and turn with special tool 00 9 333 in direction of arrow.

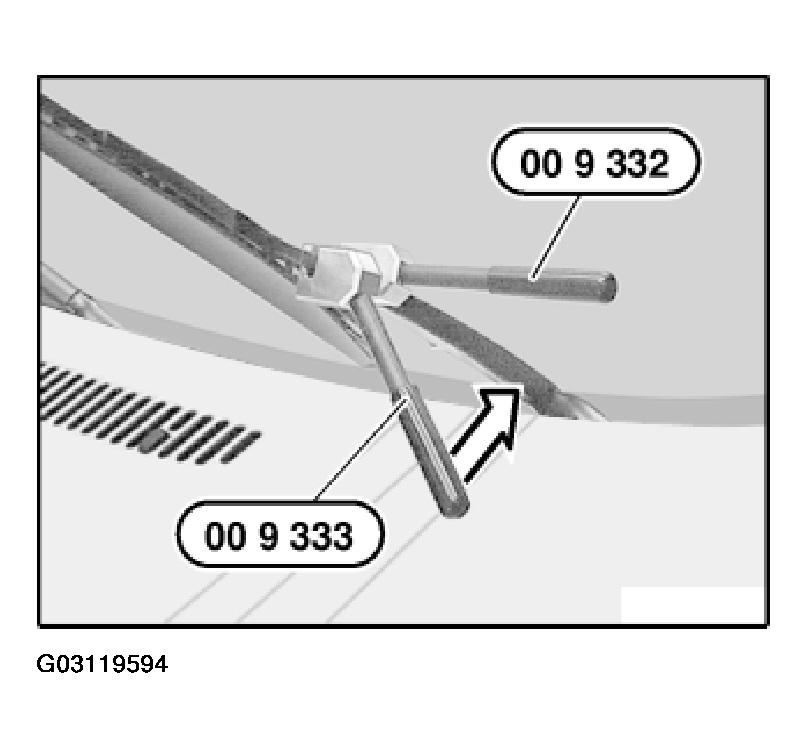

Fig 2: Gripping Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To prevent scratching of wiper arm, cover wiper arm with fabric adhesive tape.

If the approach angle is too small (light gap at bottom between gauge and wiper blade), grip wiper arm special tool 00 9 332 and turn with special tool 00 9 333 in direction of arrow.

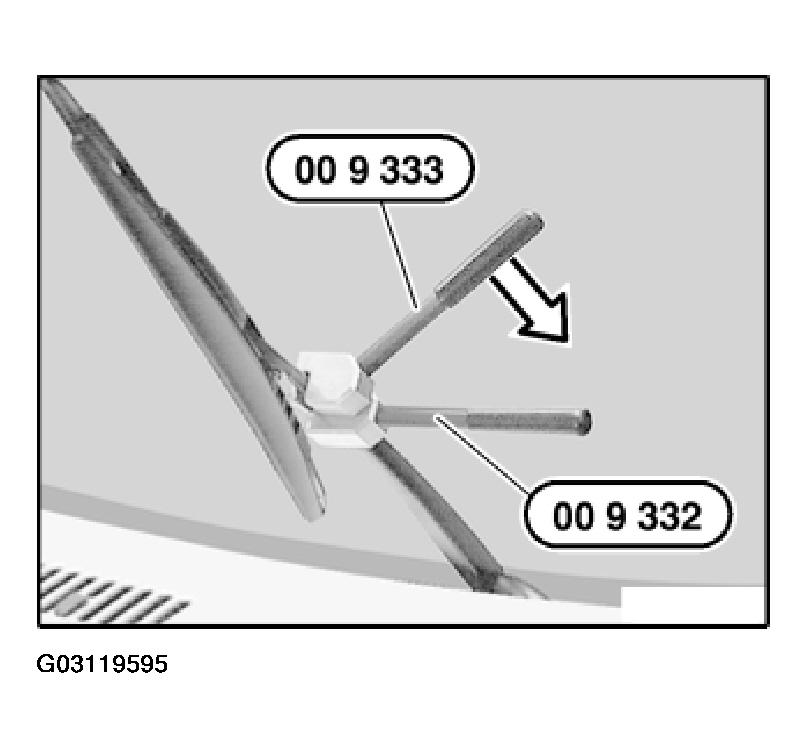

Fig 3: Turning Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.
