61 31 255 Replacing switch for door mirror

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

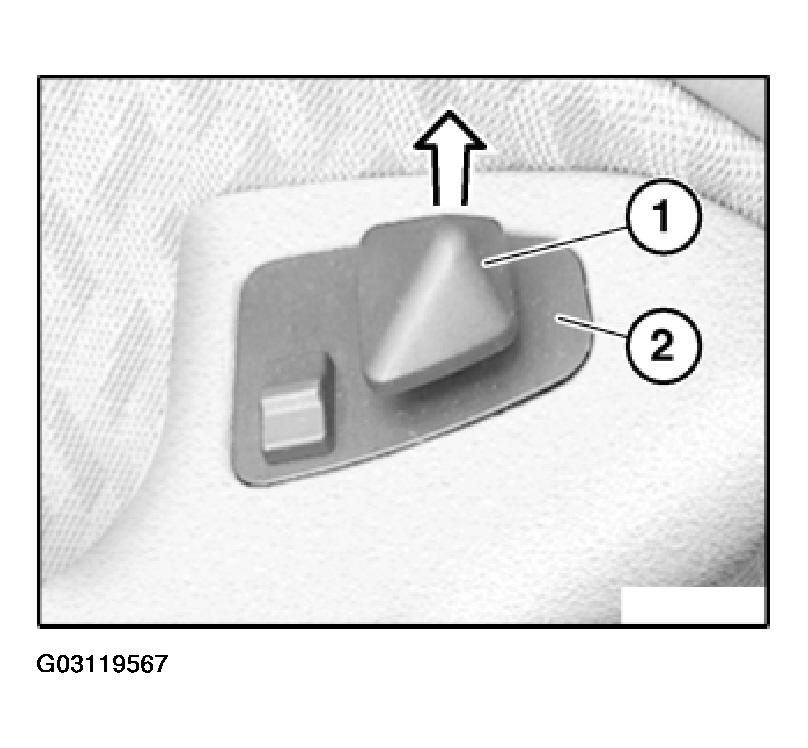

Detach control knob (1) upwards from switch for door mirror (2).

Fig 1: Detaching Control Knob

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When detaching switch for door mirror (2):
Pull upwards only, do not press sideways.

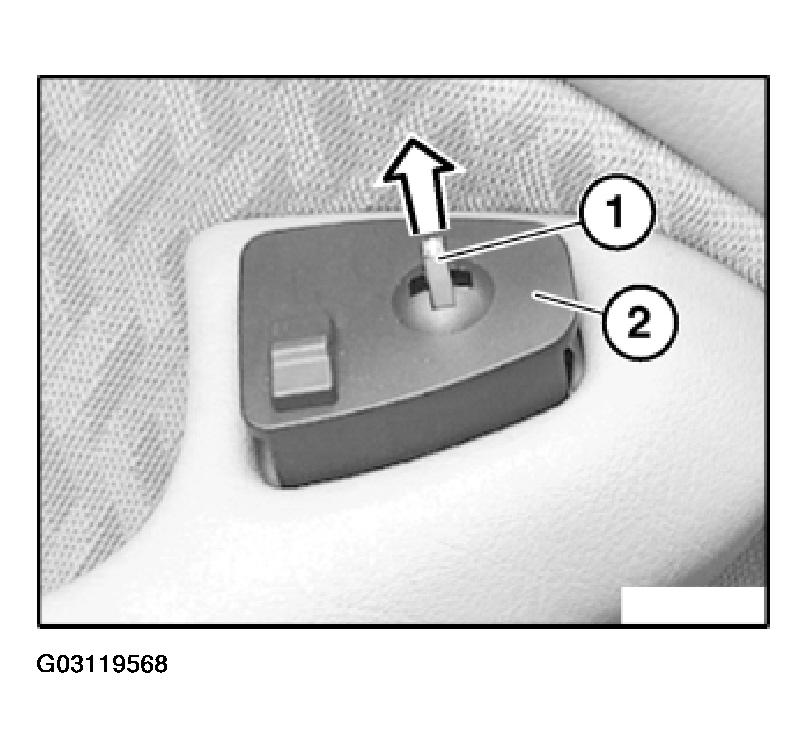

Using a pair of pointed pliers, pull door mirror switch (2) upwards slightly at rod (1) and lift out completely by hand.

Fig 2: Pulling Door Mirror Switch

Courtesy of BMW OF NORTH AMERICA, INC.

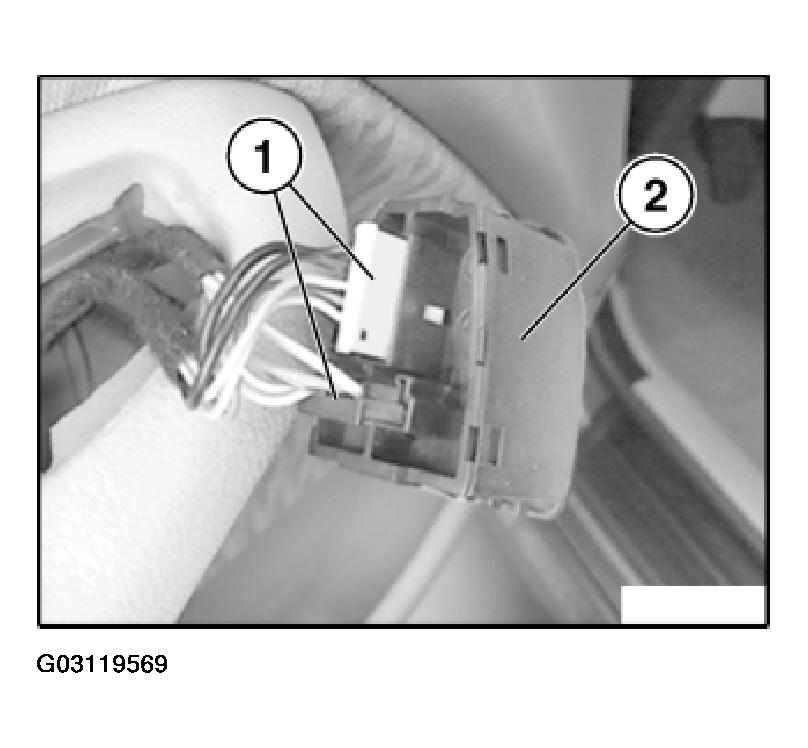

Disconnect plug connections (1) and remove switch for door mirror (2).

Fig 3: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.
