61 31 228 Replacing switch on sport steering wheel (with connected AIRBAG unit)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG unit. Refer to DRIVER-SIDE AIR BAG MODULE .

NOTE: There 2 screw variants:

Self-tapping screws
Screws with insert nuts (secure against falling out)

Release screws (1) and (2).

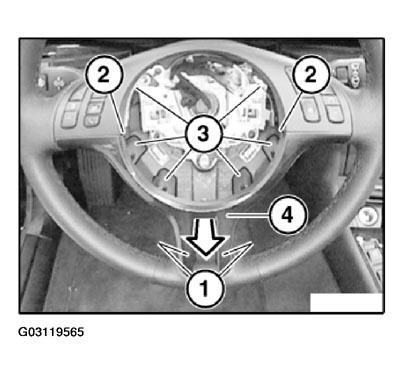

Fig 1: Removing Trim From Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip complete trim (4) in direction of arrow from fixtures (3).

Disconnect plug connection underneath.

Release screws (1).

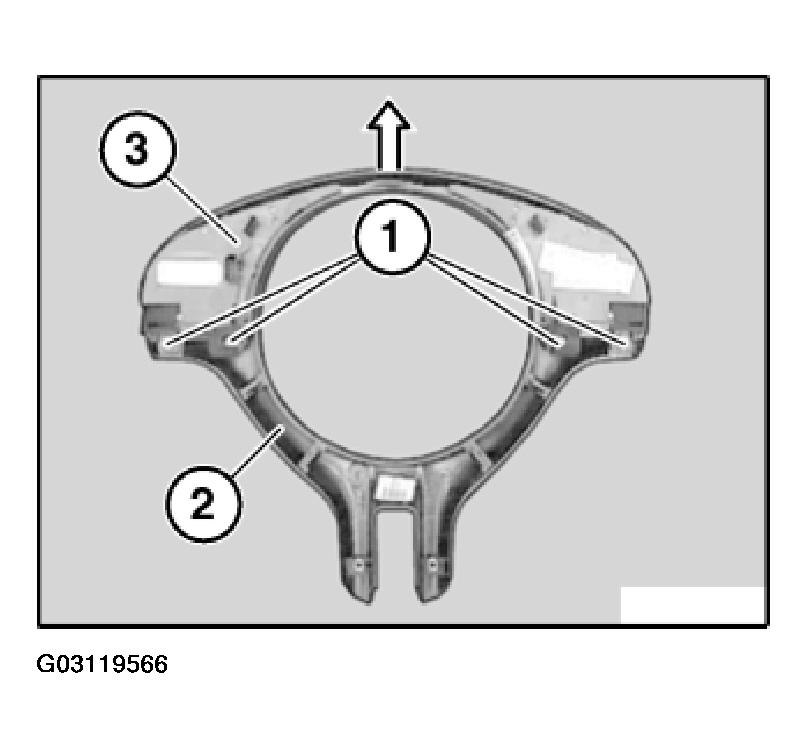

Fig 2: Detaching Switch On Sport Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Detach switch on sport steering wheel (3) in direction of arrow from trim (2).

Installation:

Ensure gap dimension is uniform between trim (2) and switch on sport steering wheel (3).
