61 31 058 Replacing switch unit in center console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install switch unit in center console. Refer to 61 31 057 REMOVING AND INSTALLING SWITCH UNIT IN CENTER CONSOLE .

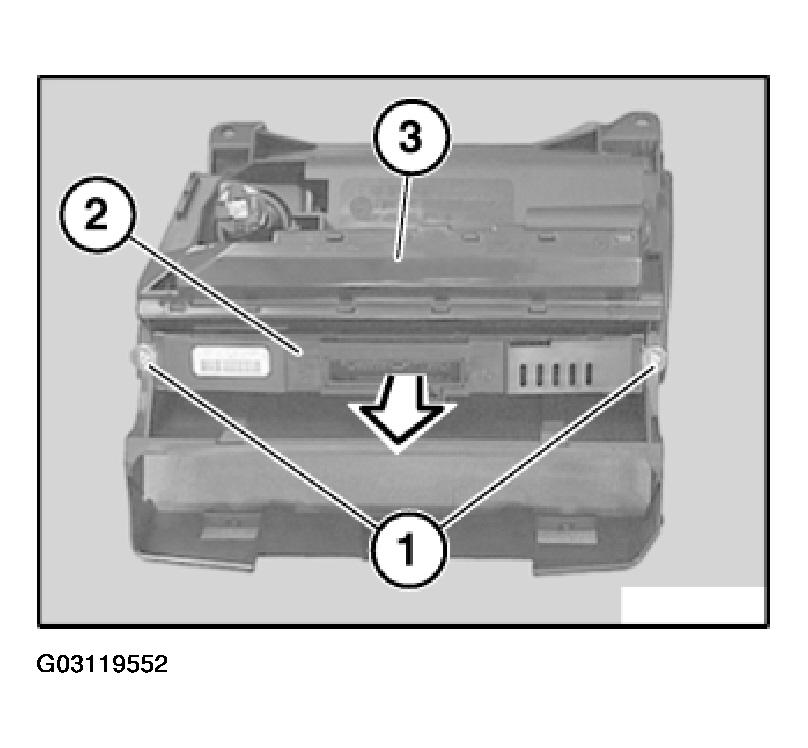

Loosen screws (1).
Remove switch unit (2) from function carrier for switch center (3) in direction of arrow.
