61 31 040 Removing and installing/replacing switch for windshield wipers

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove fixture for steering column stalk, refer to 61 31 005 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN STALK

Press locks (1) and windshield wiper stalk (2) in direction of arrow out of fixture for steering column stalk (3).

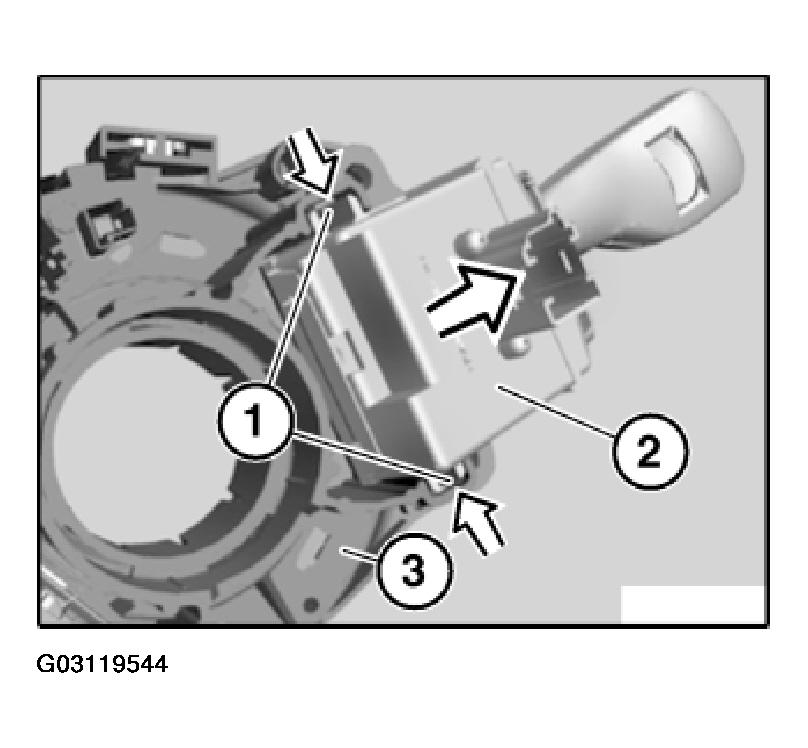

Fig 1: Removing Windshield Wiper Stalk

Courtesy of BMW OF NORTH AMERICA, INC.
