Stripping Insulation From Optical Fibre

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Open pliers (1).

Open lever (2) in direction of arrow.

Fig 1: Stripping Insulation From Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

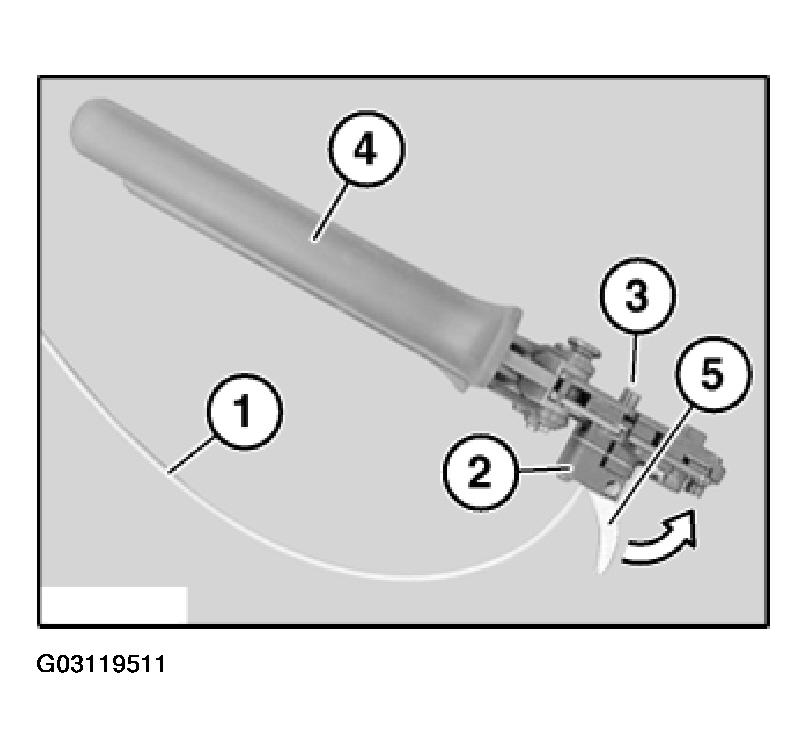

Fig 2: Stripping Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.
