61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 613 300
For further information on special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3-Series (M54/E46) .
Necessary preliminary tasks:
- Remove upper section of steering column trim. Refer to STEERING COLUMN UPPER TRIM .
- E46 only: Remove lower section of steering column trim. Refer to STEERING COLUMN LOWER TRIM .

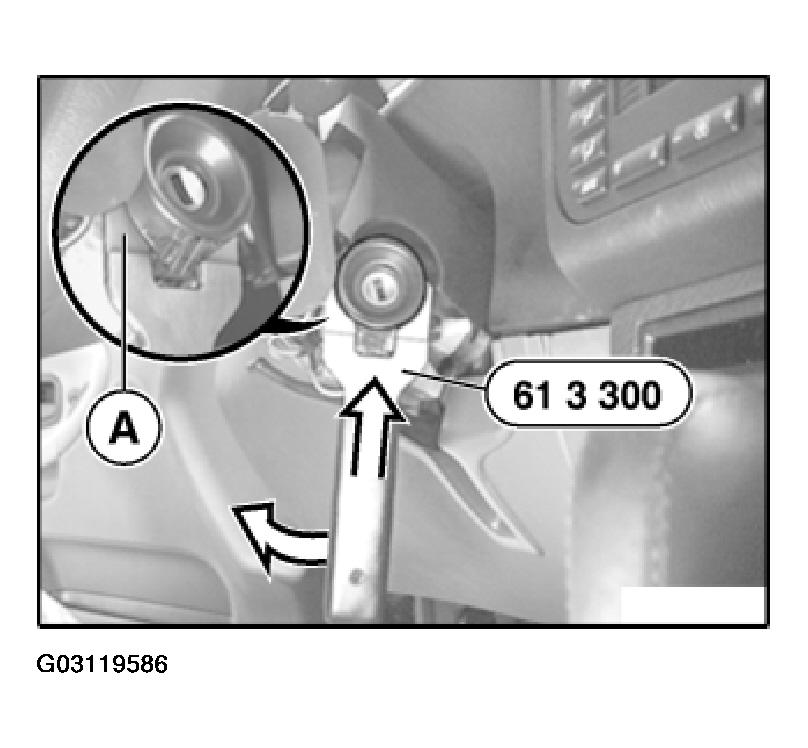

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.
