54 12 211 Removing And Installing Complete Glass Slide/Tilt Sunroof (Frame)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove headliner. Refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF) .

NOTE:

Close glass slide/tilt sunroof lid.
Move front seats backwards/downwards as far as possible.
Remove glass slide/tilt sunroof with a second person helping.

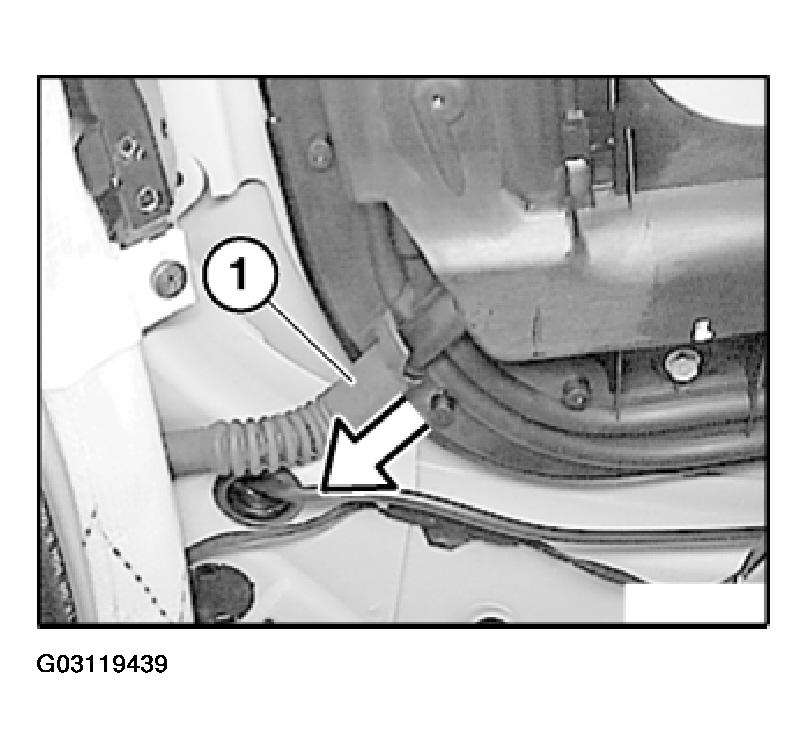

Detach all water drain hoses (1).

Fig 1: Detaching Water Drain Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection from glass sunroof drive.

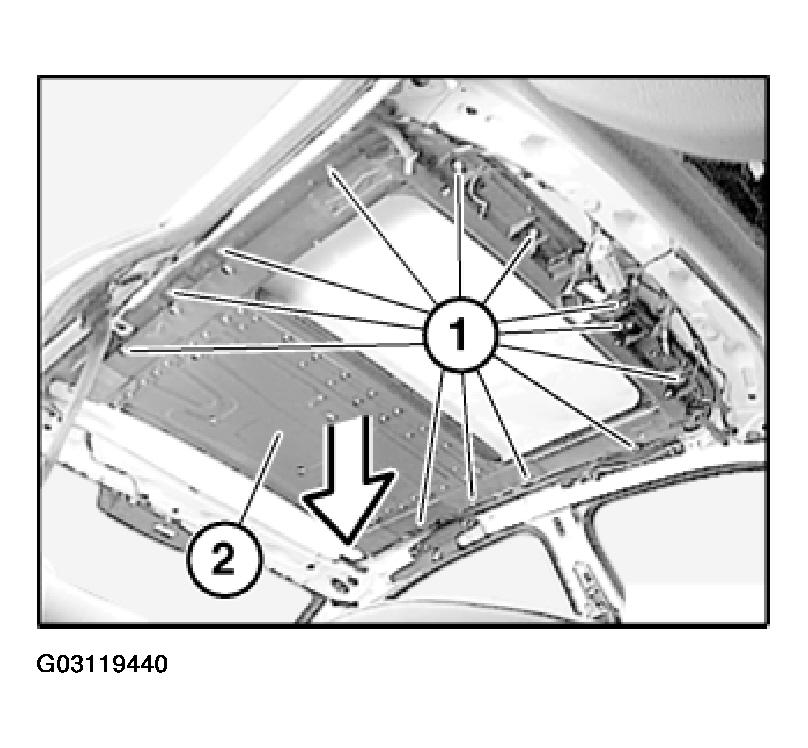

Release screws (1) and remove glass sunroof frame (2).

Fig 2: Removing Glass Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 54 12 6AZ. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES - 3-SERIES (E46) .

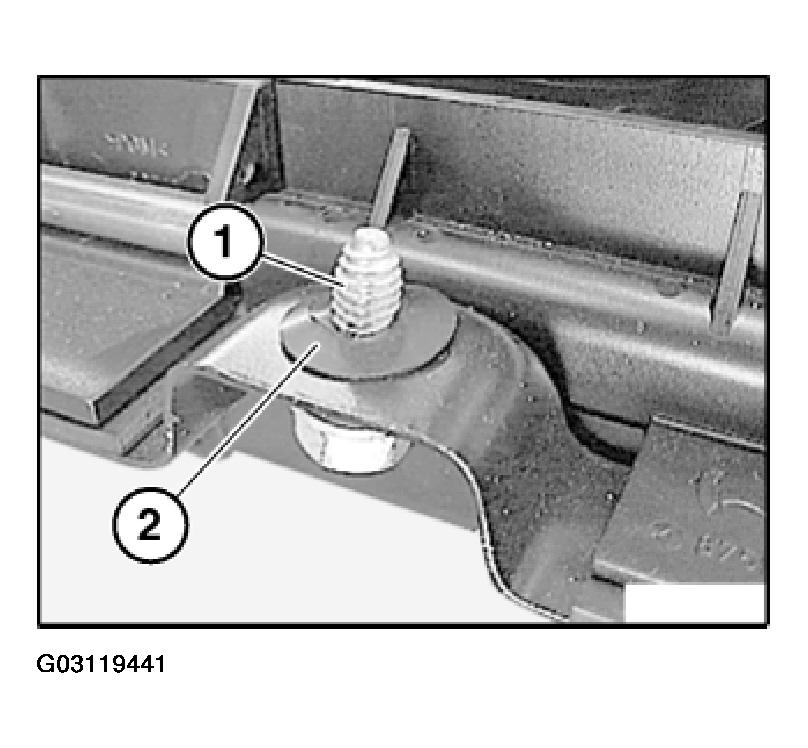

NOTE: In production, the screws (1) are secured with the washers (2) by robots.
In hand assembly, the washers (2) are not fitted.

Fig 3: Identifying Washers
