54 12 136 Removing And Installing/Replacing Headliner For Glass Slide/Tilt Sunroof Lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

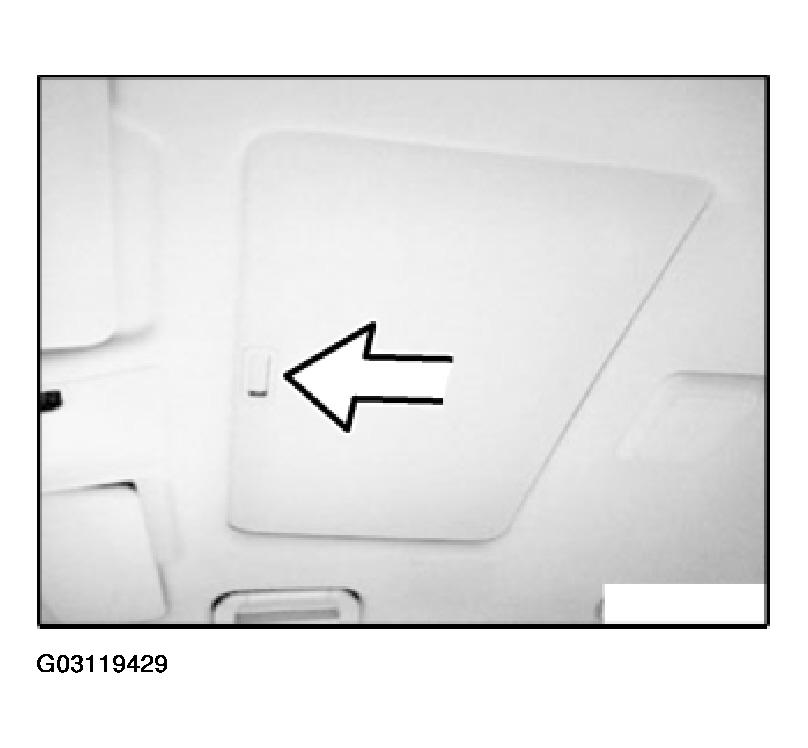

Slowly pull headliner (floating) fully towards front.

Fig 1: Identifying Headliner

G03119429

Courtesy of BMW OF NORTH AMERICA, INC.

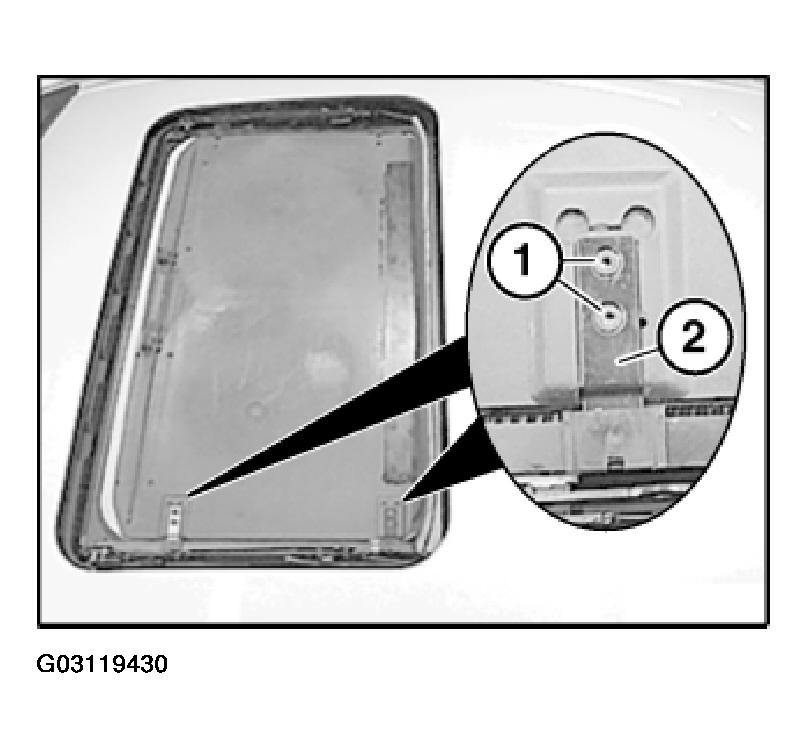

Release screws (1) from sliding member (2).

Fig 2: Releasing Screws From Sliding Member

G03119430

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 54 12 5AZ. Refer to SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES - 3-SERIES (E46) .

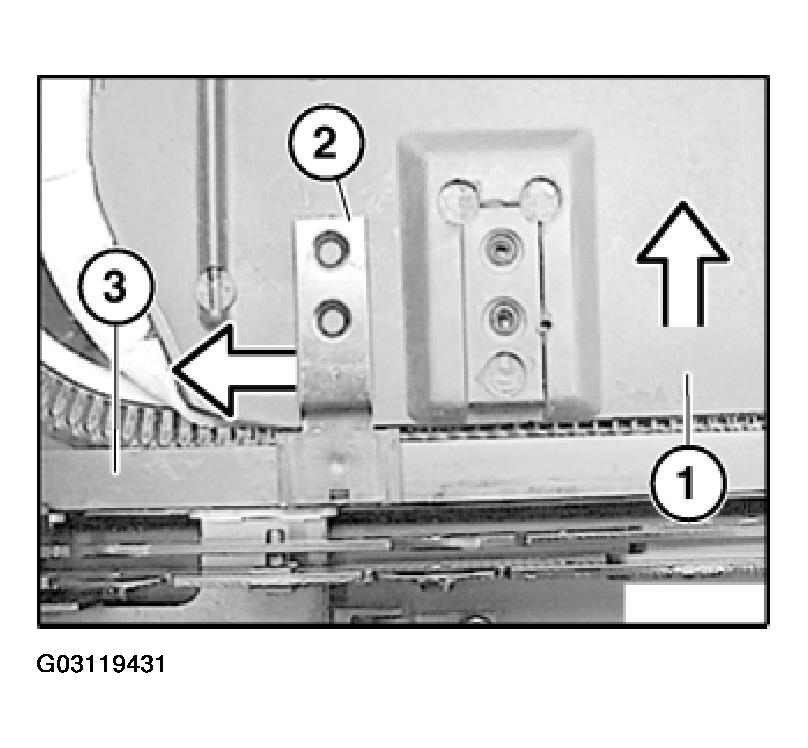

Press headliner (1) to right against springs and at same time detach sliding member (2) from guide duct (3) and headliner (1).

Fig 3: Pressing Headliner Against Springs

G03119431

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

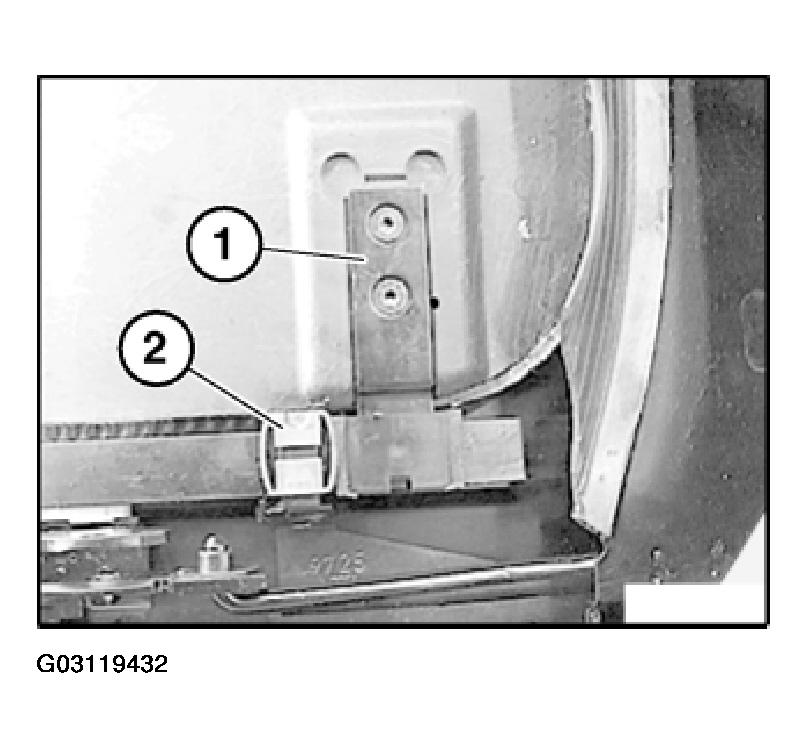

Rear sliding member (1) must be fitted behind driver (2).

Fig 4: Installing Rear Sliding Member

G03119432

Courtesy of BMW OF NORTH AMERICA, INC.

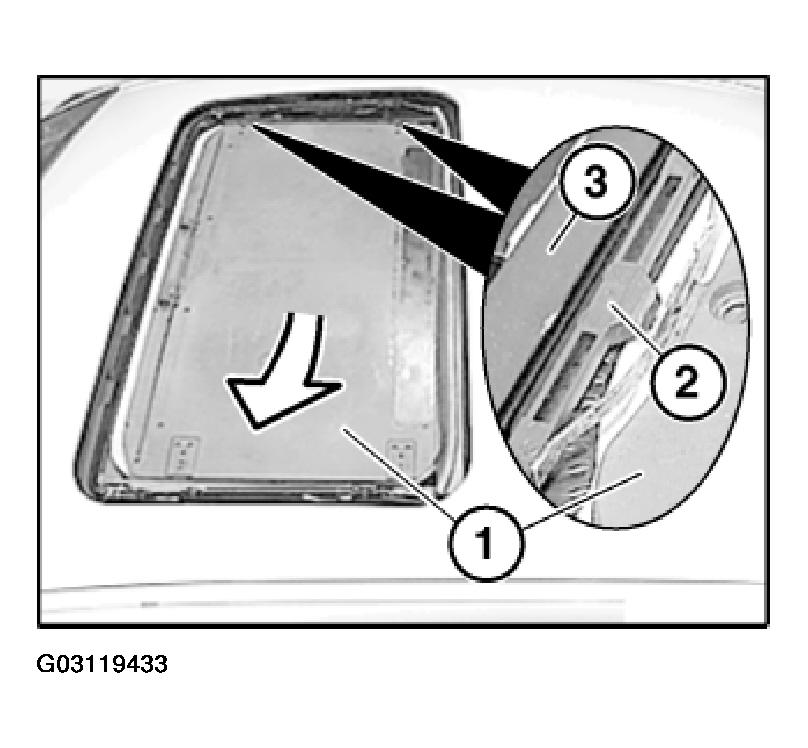

Pull headliner (1) to left/upwards with sliding members (2) out of rail (3).

Fig 5: Removing Headliner With Sliding Members From Rails

G03119433

Courtesy of BMW OF NORTH AMERICA, INC.

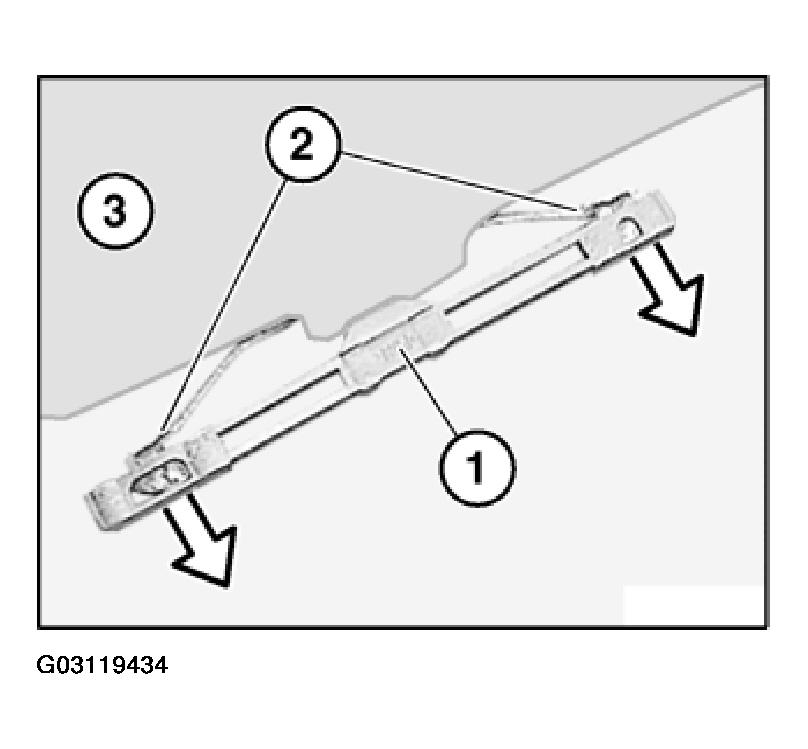

Pull sliding member (1) at front/rear off springs (2) of headliner (3).

Fig 6: Removing Sliding Member From Springs Of Headliner

G03119434

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

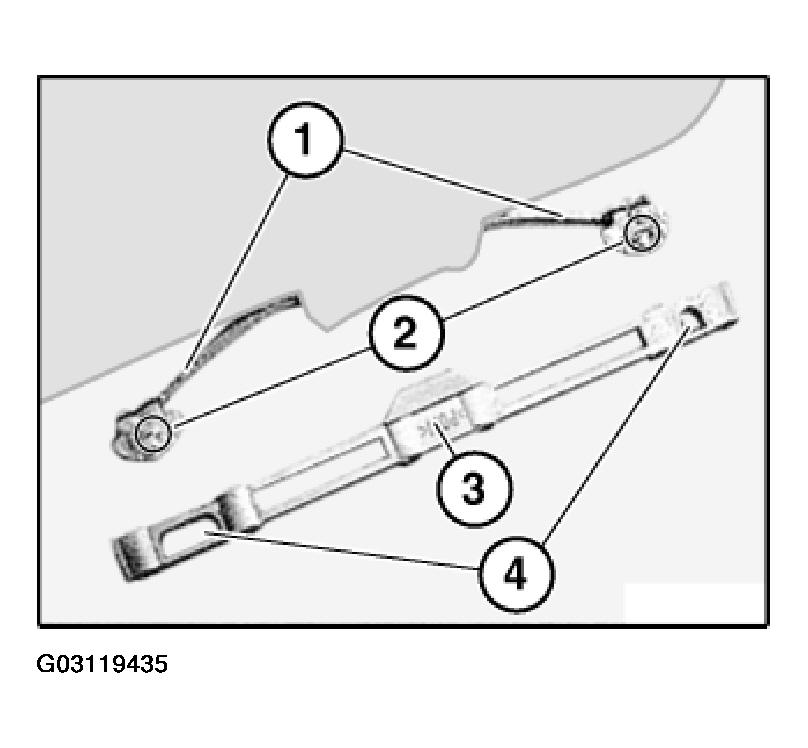

Nubs (2) of spring (1) must snap into place in guides (4) of sliding member (3).

Fig 7: Installing Nubs Of Spring

G03119435

Courtesy of BMW OF NORTH AMERICA, INC.
