52 26 400 Replacing seat cover for rear seat (through-loading system)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat, refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING SYSTEM) .

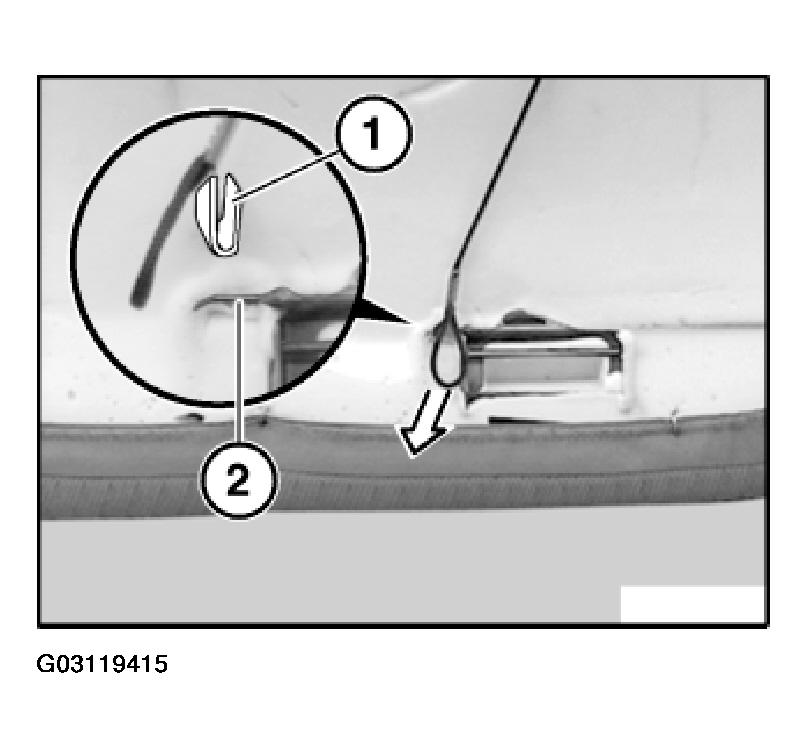

Feed tightening strap (1) out of wire (2).

Fig 1: Removing Tightening Strap

Courtesy of BMW OF NORTH AMERICA, INC.

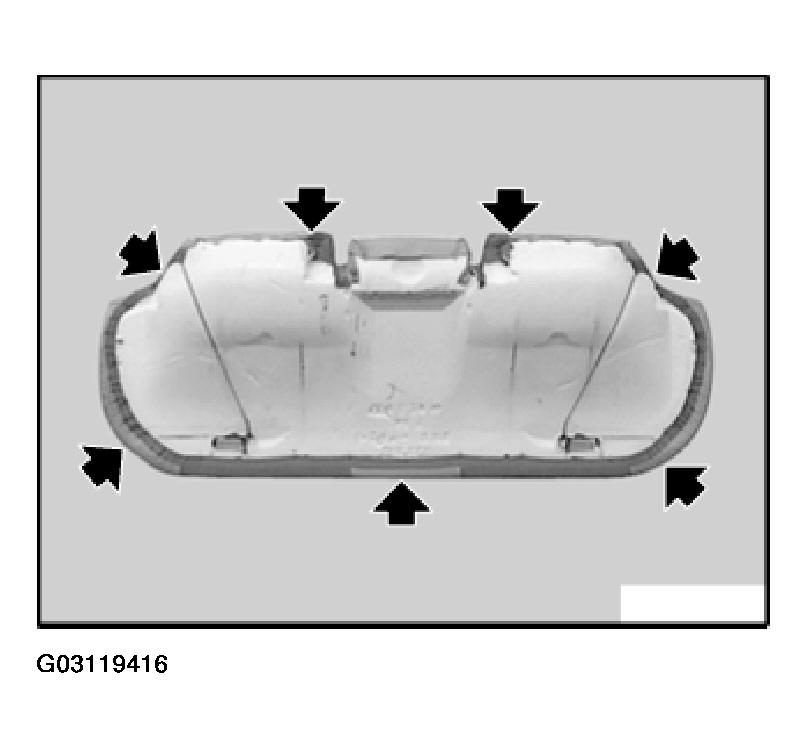

Note position of clips.

Fig 2: Identifying Position Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through or bend open all clips.

If possible, feed cover out of wire loop.

Carefully pull off cover and in so doing cut through or bend open clips of trim wires.

Remove all remnants of clips from cover and support.

Installation:

Lock new clips by bending with special tool 52 0 050. If necessary, surround existing wire in foam seat with clips.

If possible, feed trim wires into new cover.
