52 26 309 Removing and installing/replacing lock for rear seat backrest (through-loading system), left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unlock rear seat backrest and fold down.

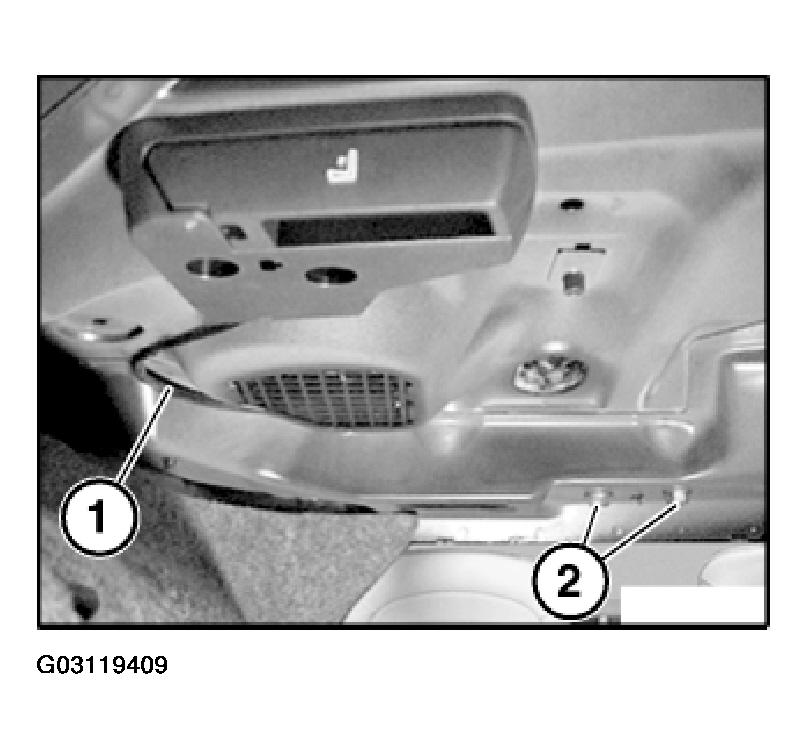

Unclip Bowden cable from mounting (1).

Fig 1: Disconnecting Bowden Cable From Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

NOTE: If rear seat backrest cannot be unlocked, release screws (2) and feed lock out of installation opening with backrest.

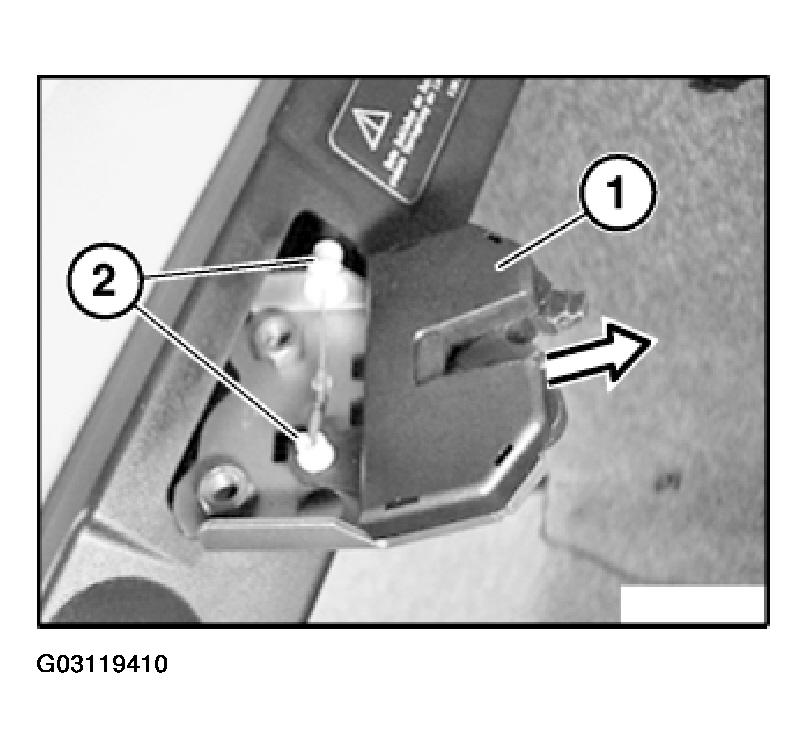

Pull lock (1) out of installation opening a little and unclip Bowden cable (2).

Fig 2: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock completely from installation opening.

Installation:

Catches (2) on lock must not be damaged.

Bowden cable must be anchored correctly in catches (2).

Installation:

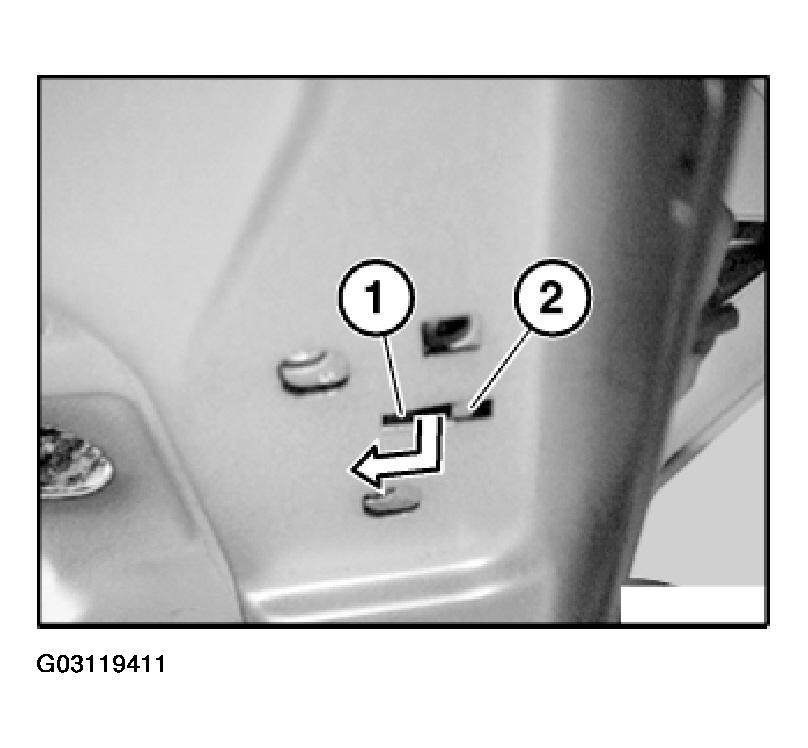

Slide guide lug (1) of lock into opening (2).

Fig 3: Sliding Guide Lug Of Lock Into Opening

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjustment of lock:

Slacken screws
Firmly push engaged backrest back
Tighten down screws
