52 15 198 ... Removing And Installing/Replacing Rear Panel On Front Left Or Right Seat Backrest (Sports/Manual)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

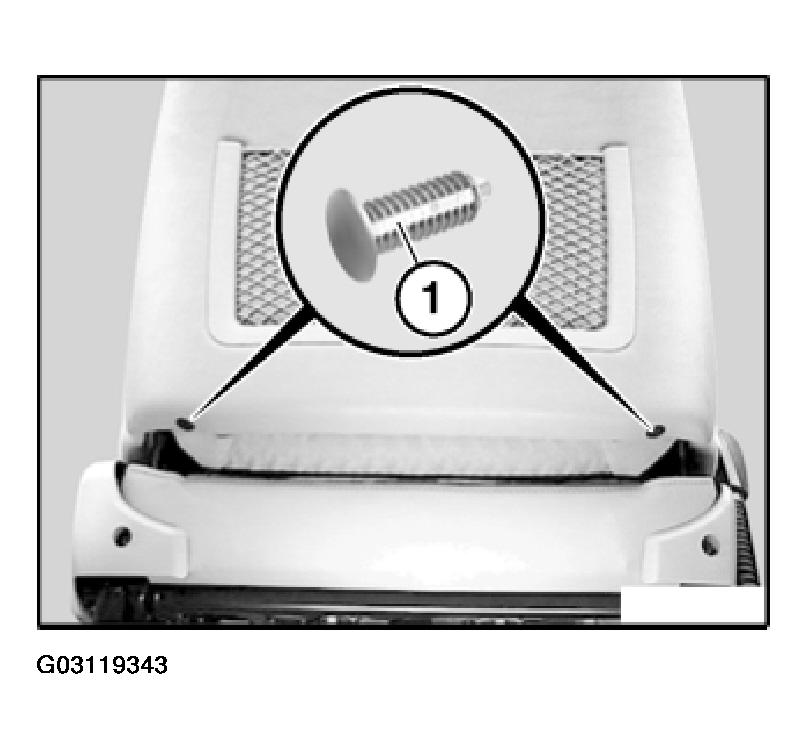

Release clips (1) with side cutting pliers.

Fig 1: Removing Clips

G03119343

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

Lever out rear panel (1) at bottom towards rear and pull out towards bottom from backrest frame (2).

Fig 2: Removing Rear Panel At Bottom

G03119344

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bores (1) and fastening set (2) of rear panel (3) must not be damaged.

Fig 3: Identifying Bores And Fastening Set Of Rear Panel

G03119345

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide backrest cover (1) on left/right over clip mount (2).

Fig 4: Sliding Backrest Cover Over Clip Mount

G03119346

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounts (1) on backrest frame (2) must not be damaged. To install rear panel, first slide into mounts (1) and then slide in at sides at bottom, refer to next work step.

Fig 5: Installing Backrest Frame

G03119347

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After installing rear panel in upper mounts, refer to previous work step:

Feed rear panel at sides into opening in backrest cover and insert into mounts (1) on left/right on backrest frame (2) and snap into place.

Fig 6: Inserting Rear Panel Into Mounts

G03119348

Courtesy of BMW OF NORTH AMERICA, INC.
