52 13 041 Removing And Installing / Replacing Inner Cover On Left Or Right Front Seat Backrest (Normal/ Manual)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Shown removed for purposes of clarity.

Release screw (1) and remove trim (2).

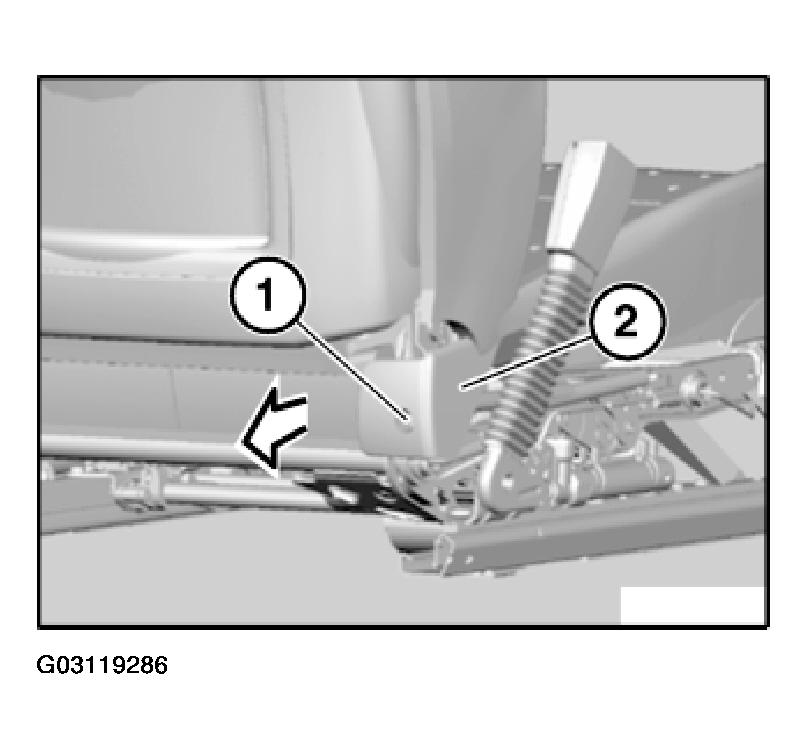

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
