51 24 130 Removing And Installing/Replacing Locking Bracket For Trunk Lid Lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

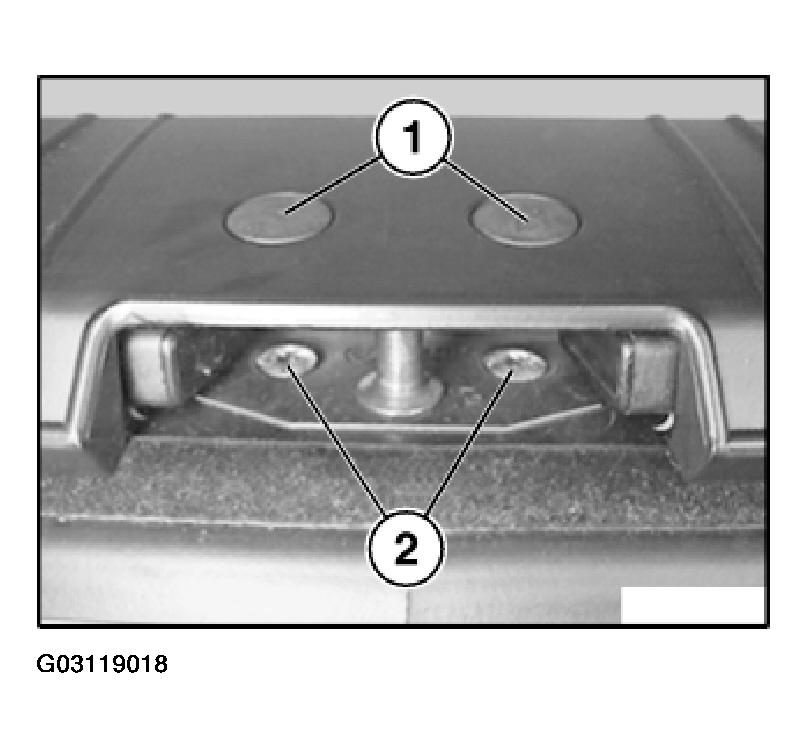

Lever out trims (1) above cutout.

Unfasten screws (2).

Fig 1: Removing Trims

Courtesy of BMW OF NORTH AMERICA, INC.

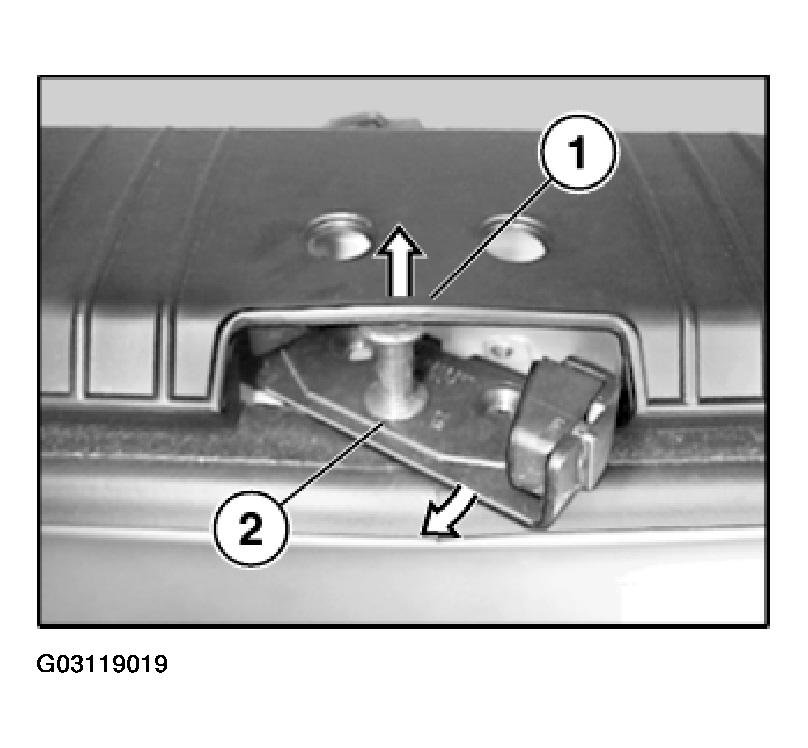

Raise trim for tail panel (1) and remove rear lid lock (2) (lower section).

Installation:

Adjust lower section of rear lid lock.

Fig 2: Adjusting Lower Section Of Rear Lid Lock
Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Closing bracket and rear lid lock must not be greased.
