51 24 100 Removing And Installing/Replacing Rear Lid Lock (Upper Section)

Remove panel for rear lid. Refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR TRUNK LID .

Convertible Only:

Remove additional brake light.

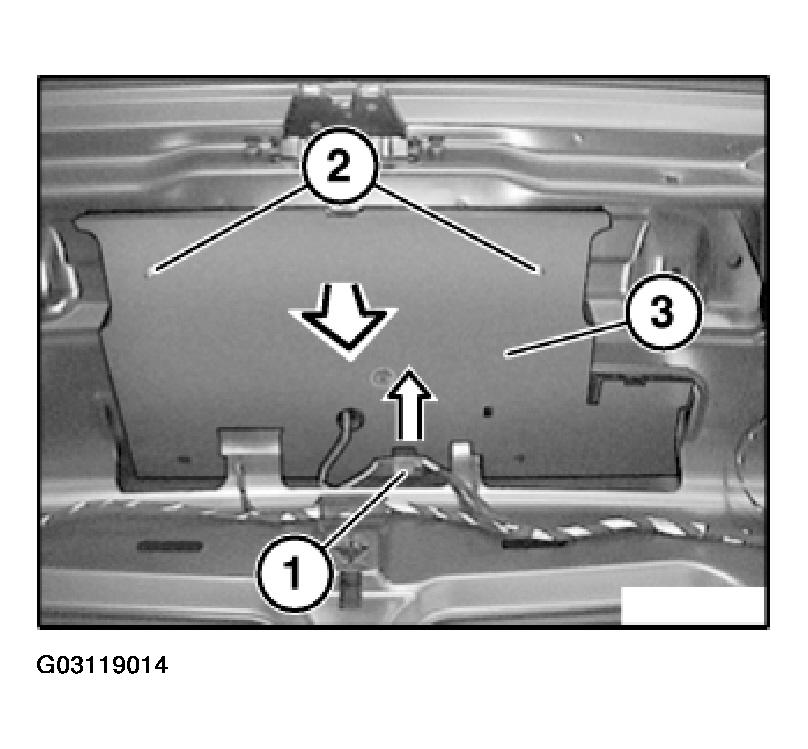

Unclip plug connection (1) in direction of arrow from cover fastener and disconnect.

Loosen screws (2).

Unclip cover fastener (3) in direction of arrow.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

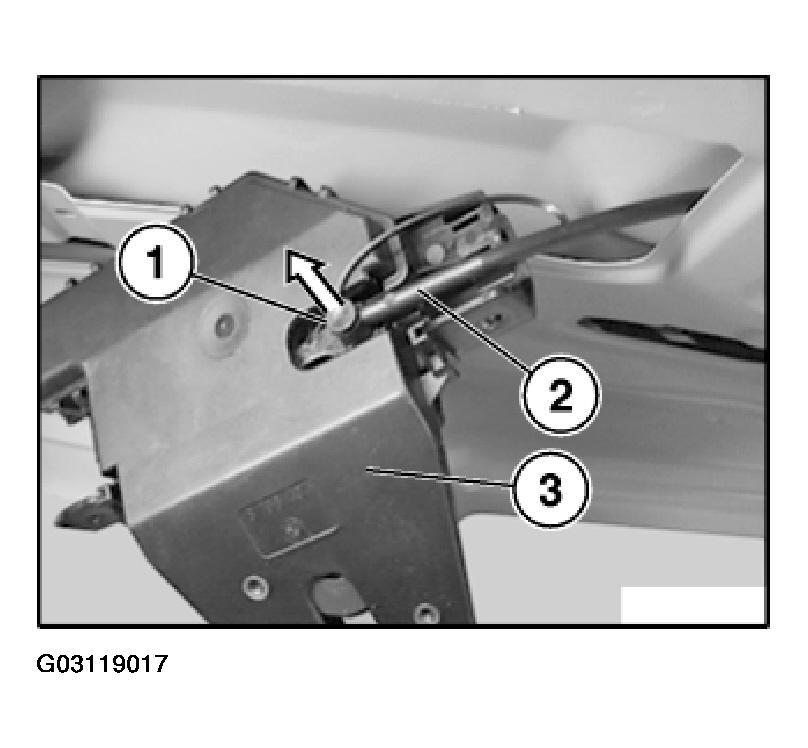

Ensure retaining lugs (1) are correctly seated.

Place Bowden cable (2) in mount (3).

Feed plug (4) as illustrated through opening.

Ensure catches (5) are correctly seated.

Fig 2: Locating Bowden Cable In Mount

Courtesy of BMW OF NORTH AMERICA, INC.

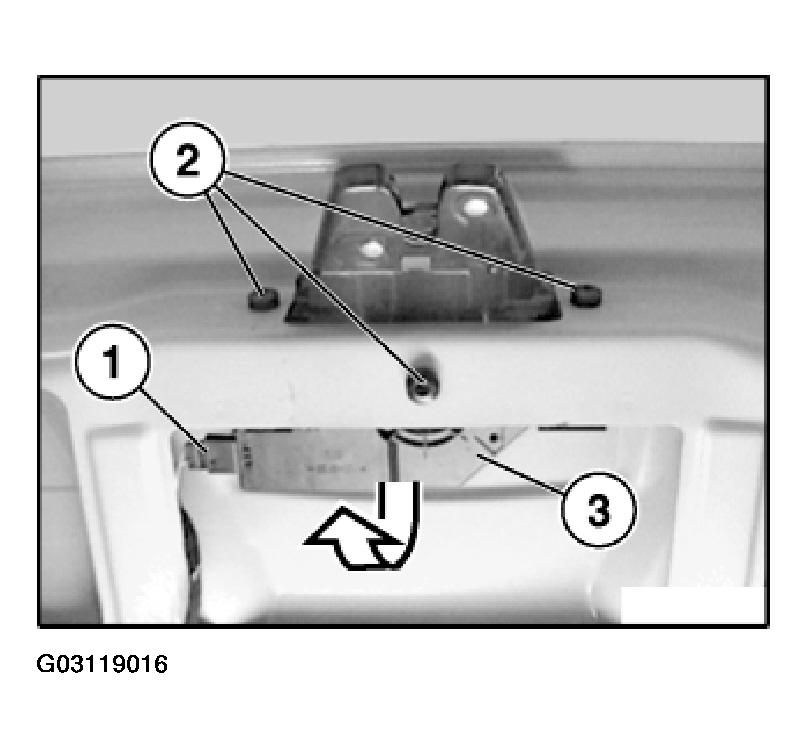

Unfasten plug connection (1).

Release screws (2) and feed out upper section of rear lid lock (3).

Installation:

Use thread-tapping screws.

Fig 3: Releasing Rear Lid Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

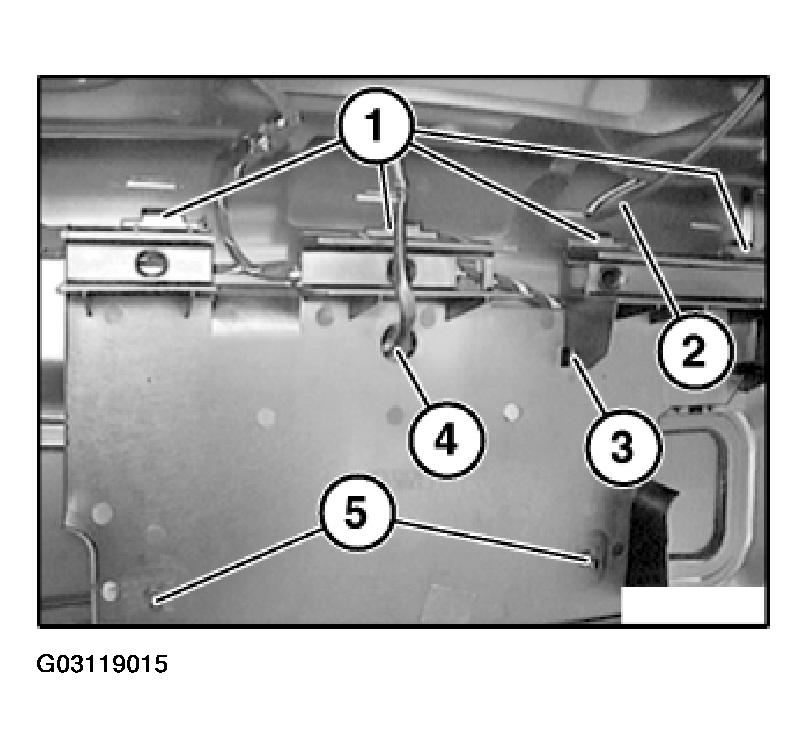

Remove lock (1).

Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Fig 4: Removing Actuating Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.
