51 24 050 Removing And Installing/Replacing Lock (Lock Cylinder) For Rear Lid

Remove panel for rear lid. Refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR TRUNK LID .

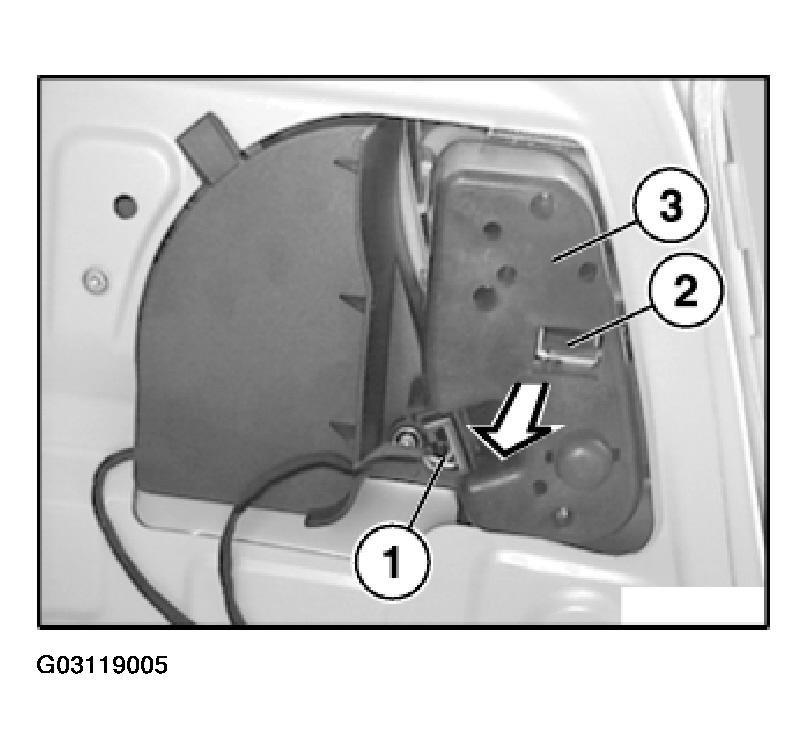

Unfasten plug connection (1).

Unlock lock (2) and remove socket housing (3) for tail light.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

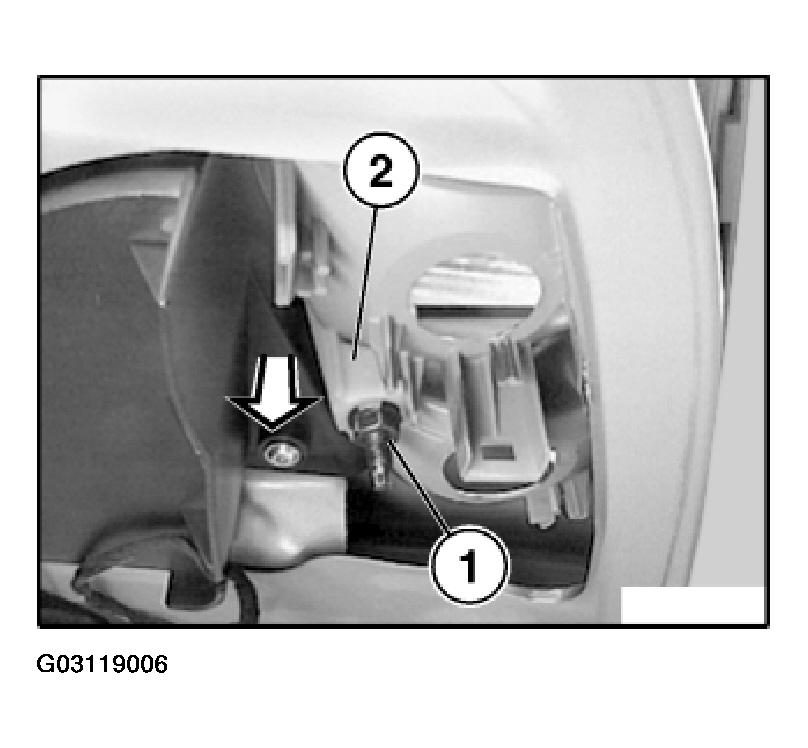

Release nut (1) and remove clamping piece (2).

Fig 2: Locating Clamping Piece

Courtesy of BMW OF NORTH AMERICA, INC.

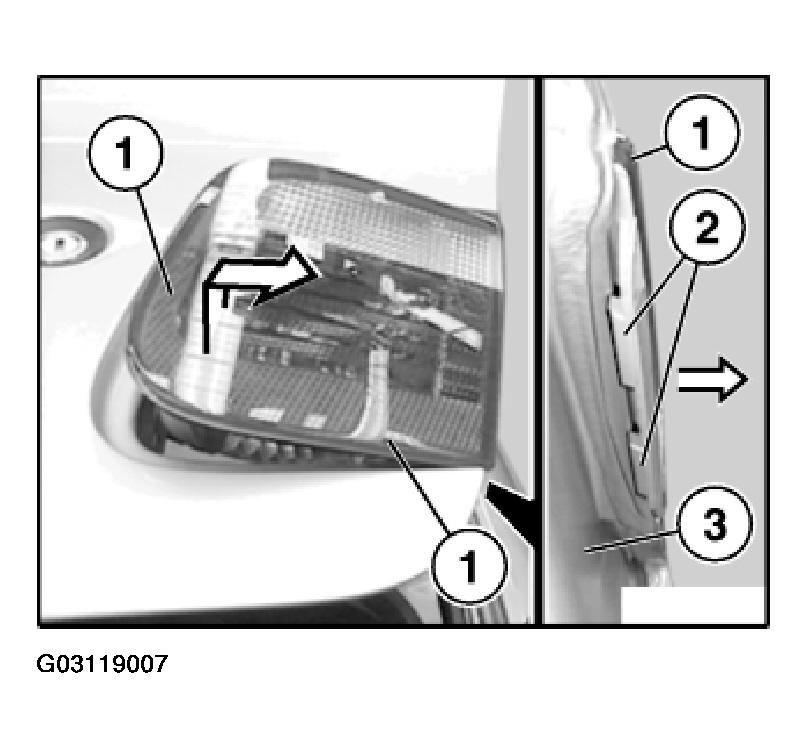

Raise tail light (1) a little and remove with guides (2) facing outwards from trunk lid (3).

Fig 3: Identifying Tail Light

Courtesy of BMW OF NORTH AMERICA, INC.

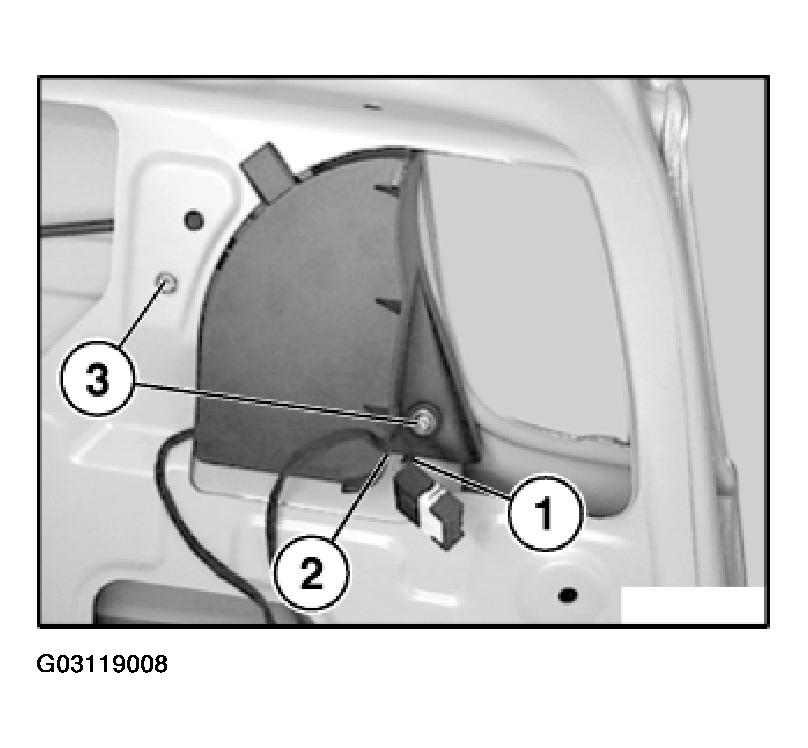

Detach cable (1) from cover (2).

Unfasten screws (3).

Fig 4: View Of Cable In Cover

Courtesy of BMW OF NORTH AMERICA, INC.

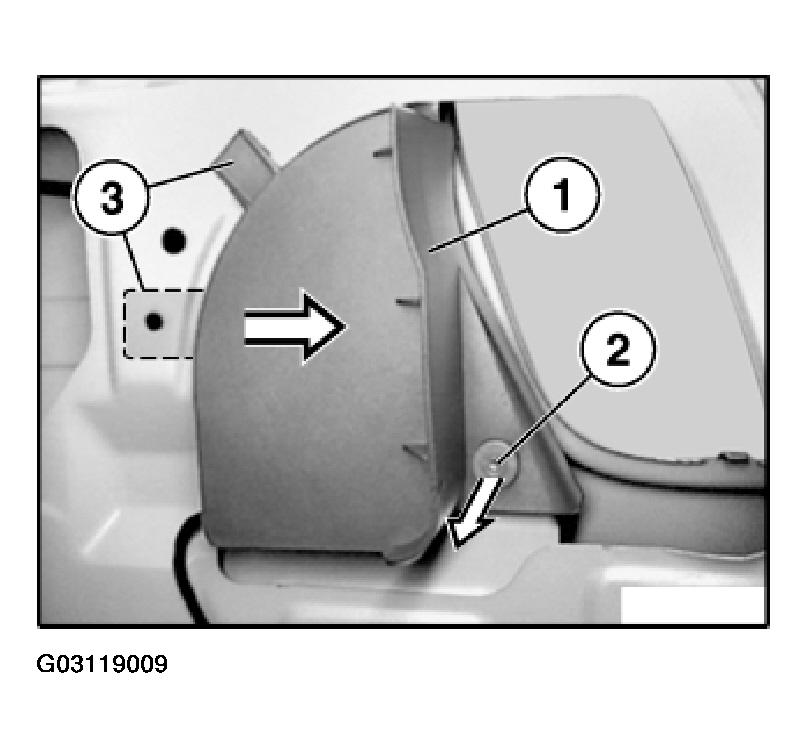

Lever cover (1) off clip (2).

Detach and remove cover (1) from guides (3) on metal.

Fig 5: Removing Cover From Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1).

Pull off lock (2) and lever actuating rod (3) out of lock (4).

Fig 6: View Of Lever Actuating Rod In Lock

Courtesy of BMW OF NORTH AMERICA, INC.

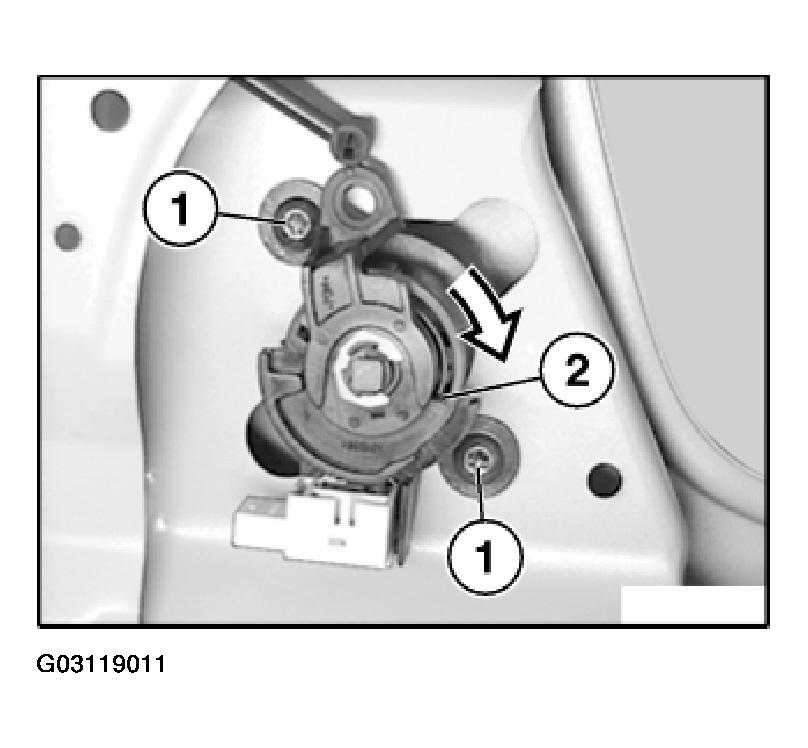

Release screws (1) and turn lock (2) to right.

Fig 7: Locating Lock Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

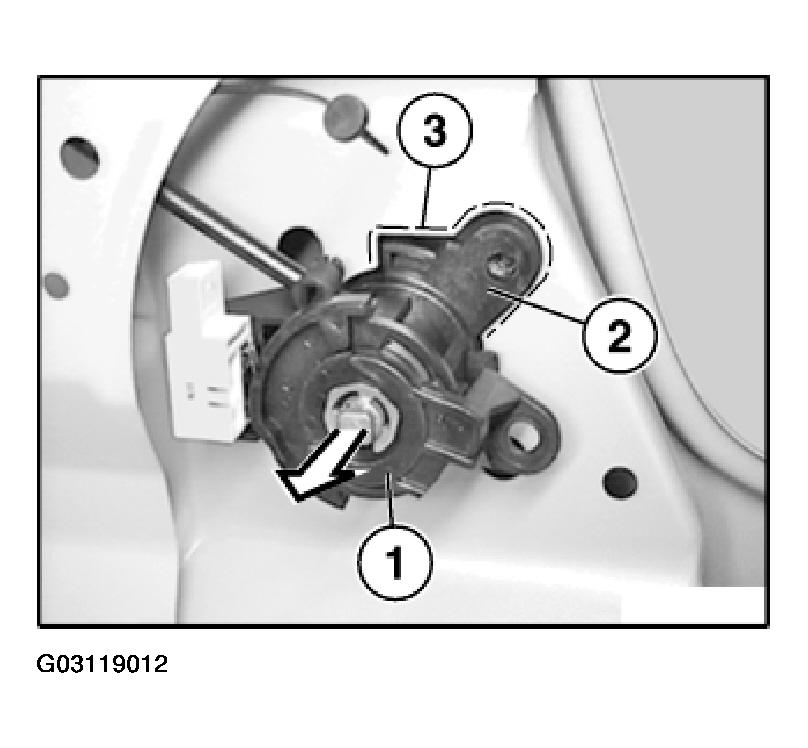

Turn lock (1) to right until guide (2) is located in metal cutout (3) and then remove towards bottom.

Fig 8: Removing Lock Through Metal Cutout

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.

Replacement only:

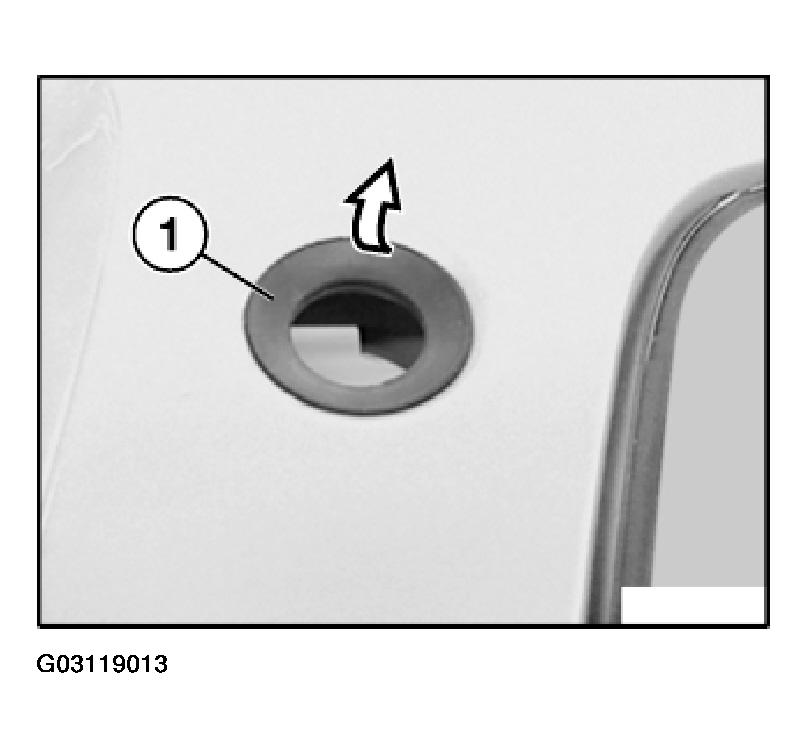

Pull off rubber grommet (1).

Fig 9: Identifying Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
