51 24 ... Removing And Installing/Replacing Trim On Shaft Bearing For Rear Window Wiper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Lever out covers (1).

Installation:

Catches (2) of covers (1) must not be damaged.

Fig 1: Locating Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove trim (2).

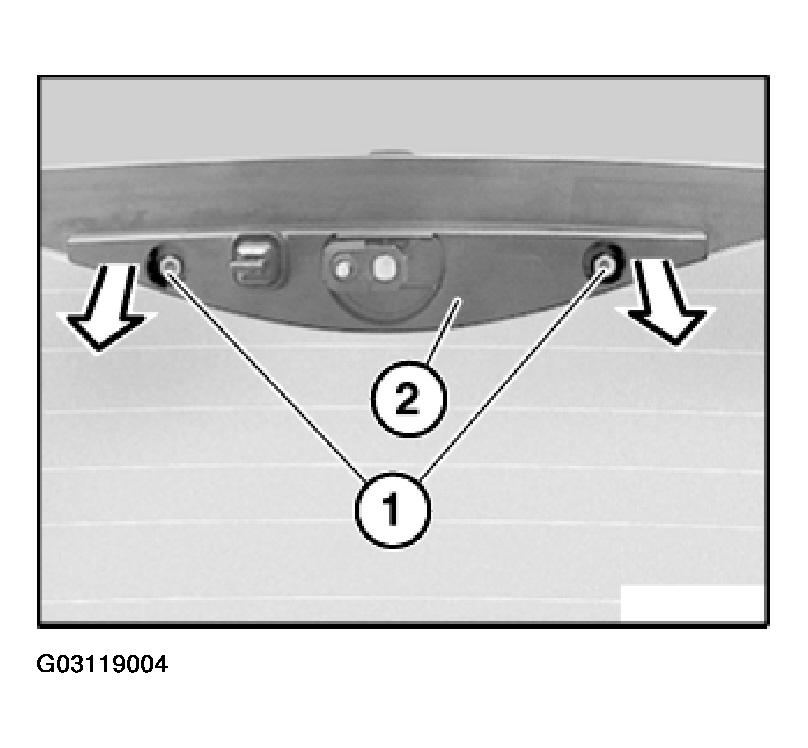

Fig 2: Releasing Trim Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
