51 13 ... Replacing Bracket For Roof Luggage Rack On Left Or Right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install trim strip on roof frame on left or right, refer to REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT .

Remove body sealing compound (1) with special tool 00 9 322 and unfasten threaded pin (2).

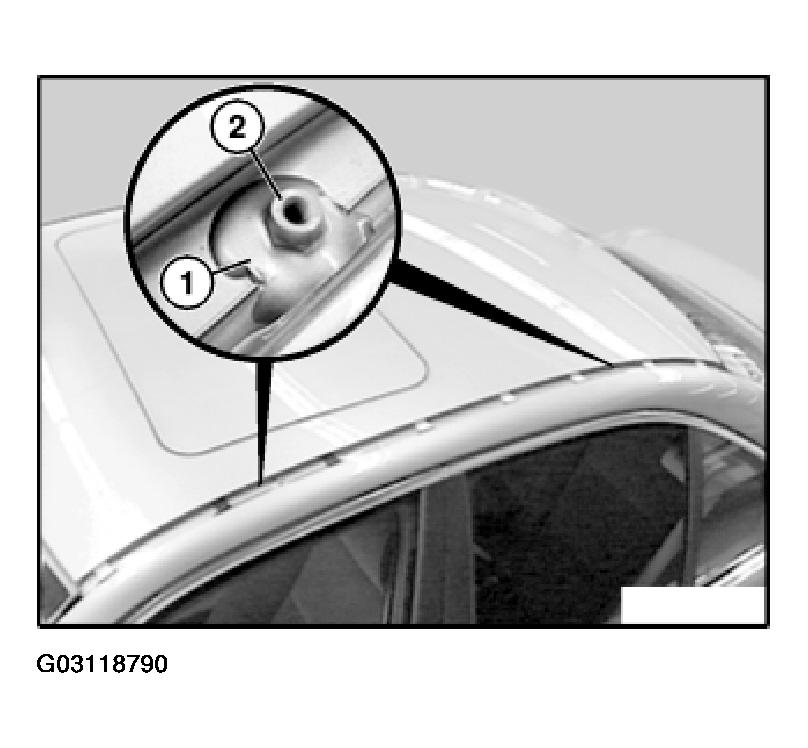

Fig 1: Removing Body Sealing Compound With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threaded pin may not be wetted with screw securing adhesive on screw-in thread (1).
Before installing threaded pin, protect body against corrosion (e.g. apply zinc dust paint).
Tightening Torque, refer to 51 13 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

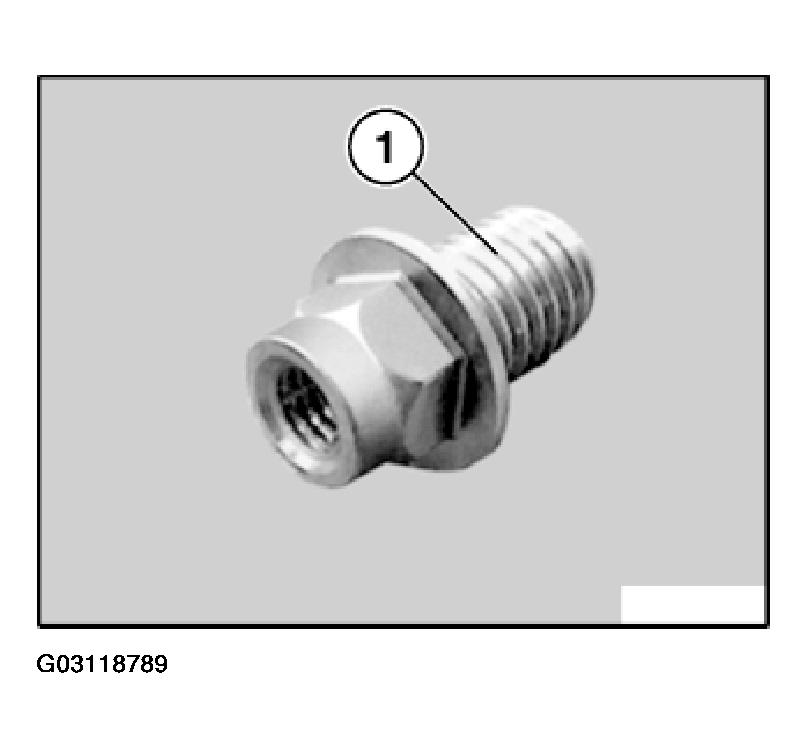

Fig 2: Identifying Threaded Pin
Courtesy of BMW OF NORTH AMERICA, INC.

Apply body sealing compound (1) (Terostat 9320).

After hardening time of body sealing compound (1) (see manufacturer's instructions), use a paint pencil of corresponding car color to paint over body sealing compound (1) and threaded bolt (2).

Fig 3: Locating Threaded Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
