51 43 201 Removing And Installing Or Replacing Trim For Front Left Or Right Roof

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with head airbag: Follow safety instructions for working on cars with airbag systems, refer to SERVICE POSITION OF ENGINE HOOD .

CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head airbag).

Remove mucket from front roof pillar (A-pillar finisher).

Remove plate (1).

Fig 1: Removing Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lift out trim (2) at top (3) and remove towards inside/top.

Installation:

Install screws (1) with washers.
Tightening Torque, refer to 51 43 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

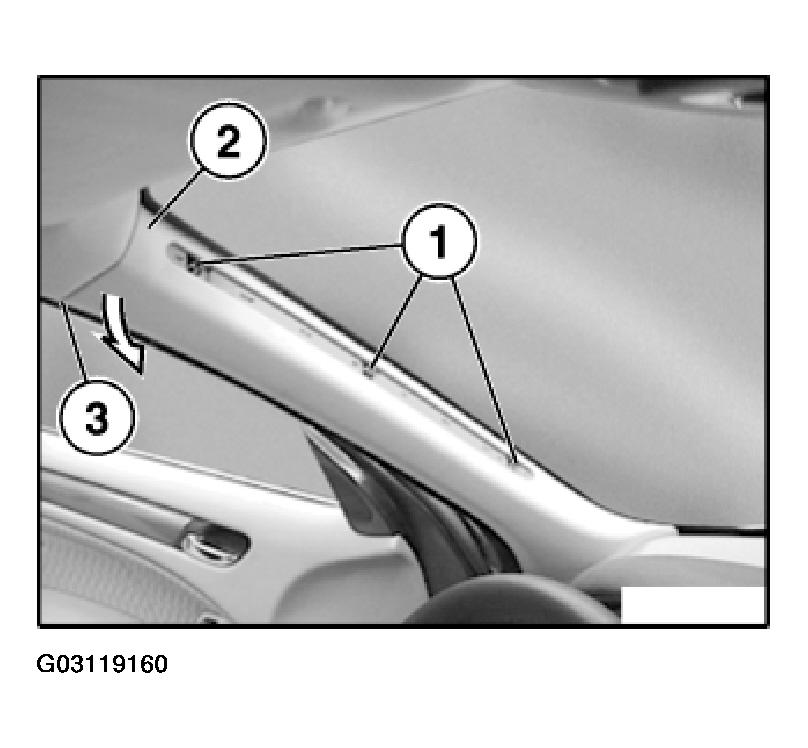

Fig 2: Releasing Trim Retaining Screws
Courtesy of BMW OF NORTH AMERICA, INC.
