51 12 ... Checking Shock (Impact) Absorber For Rear Bumper
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove a shock absorber for rear bumper. Refer to 51 12 742 REPLACING ONE SHOCK ABSORBER FOR REAR BUMPER .
NOTE:

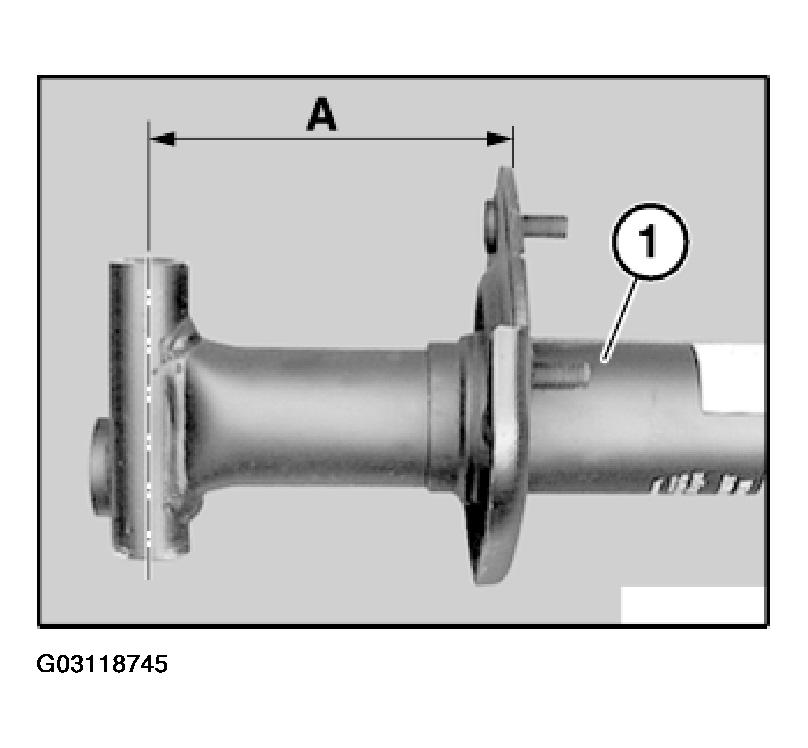

The impact absorber shown in the illustration is for viewing purposes only and may differ from the removed impact absorber.
Measurement (A) is measured from the center of the pin eye to the contract surface to the body without the seal.
Impact absorber (1) must be replaced if measurement (A) drops below specified value.
Check measurement (A). Refer to BODY EQUIPMENT - TECHNICAL DATA - 325I, 325CI .
