51 16 480 Removing And Installing Or Replacing Front Grab Handle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Lift out and remove trims (1).

Fig 1: Removing Trims

Courtesy of BMW OF NORTH AMERICA, INC.

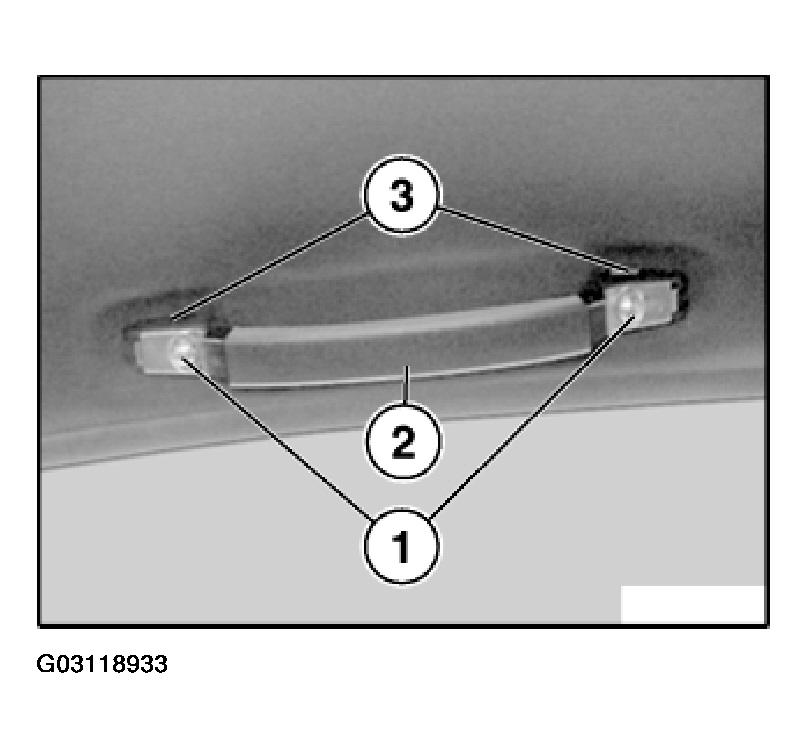

Release screws (1) and remove grab handle (2) with carrier (3).

Fig 2: Removing Grab Handle With Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
