51 16 195 Removing And Installing Center Armrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove storage tray, refer to REMOVING AND INSTALLING STORAGE TRAY .

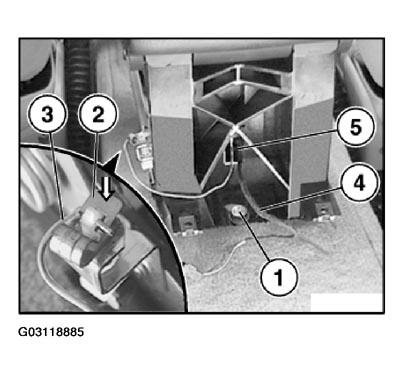

Slacken screw (1), do not release.

Press down spring (2) and remove cable (3).

Feed out cables (3) and (4) through hole (5) in center armrest.

Fig 1: Removing Cable Through Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1).

Installation:

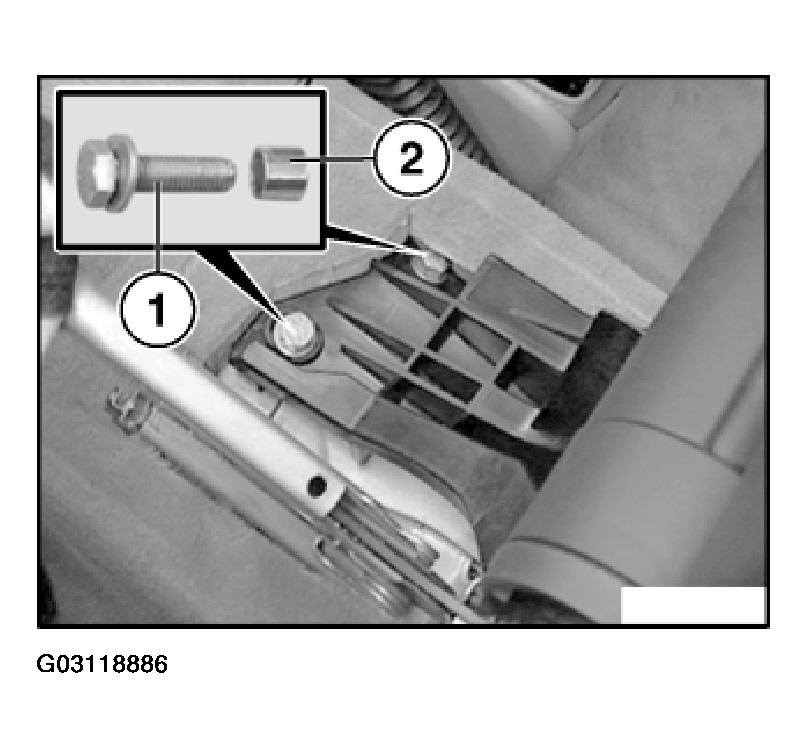

Fit screws (1) with space bushings (2).

Fig 2: View Of Screws With Space Bushings
Courtesy of BMW OF NORTH AMERICA, INC.

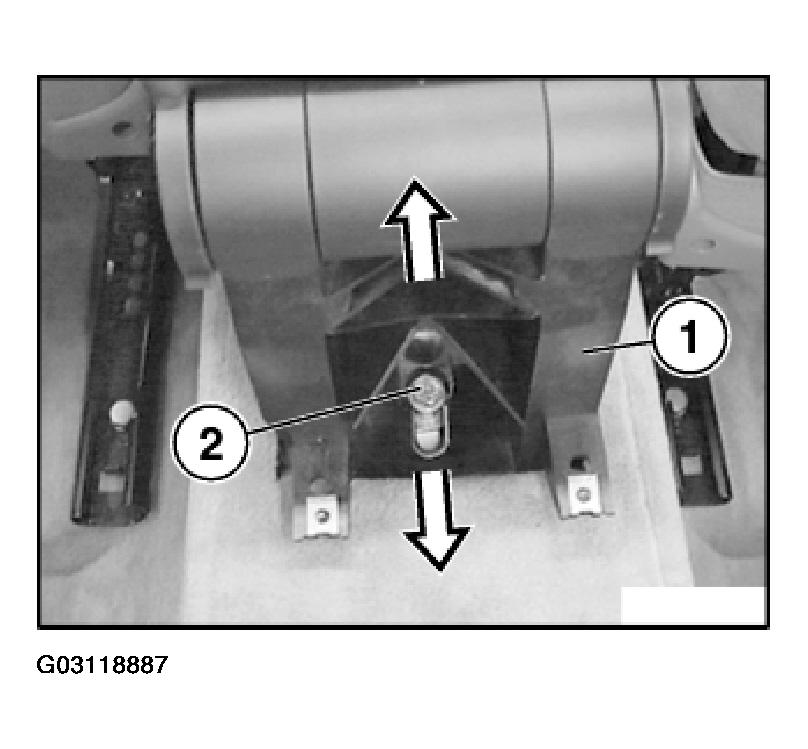

Push center armrest (1) towards rear until screw (2) is located in assembly hole and remove armrest (1) towards top.

Fig 3: Removing Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

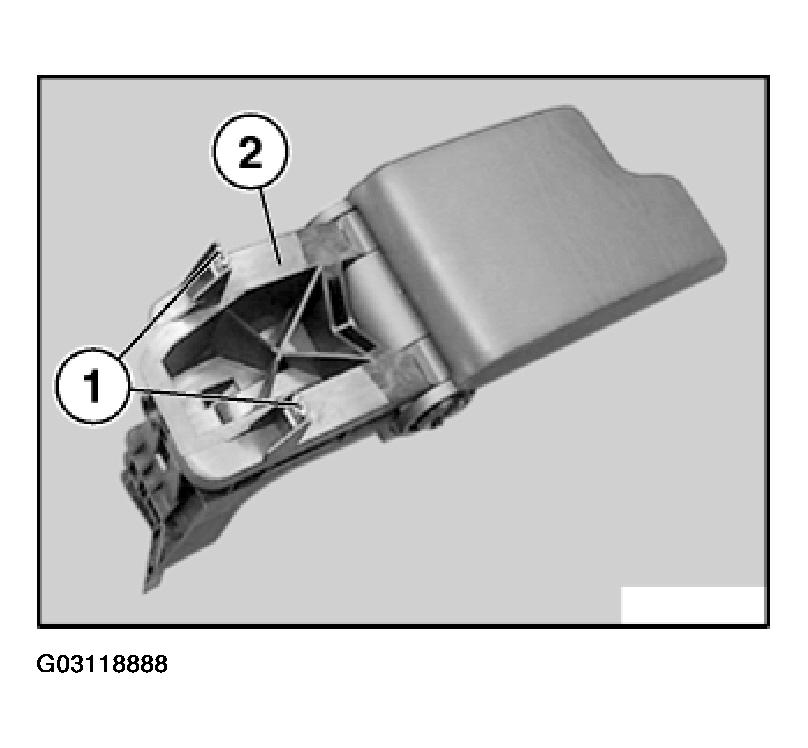

If necessary, replace faulty metal nuts (1) in center armrest (2).

Fig 4: Locating Metal Nuts In Center Armrest
Courtesy of BMW OF NORTH AMERICA, INC.
