51 13 115 Removing And Installing/Replacing Cowl Panel Cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove both windshield wiper arms, refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .
Remove microfilter for interior ventilation, refer to 64 31 010 REPLACING MICROFILTER FOR INTERIOR VENTILATION .

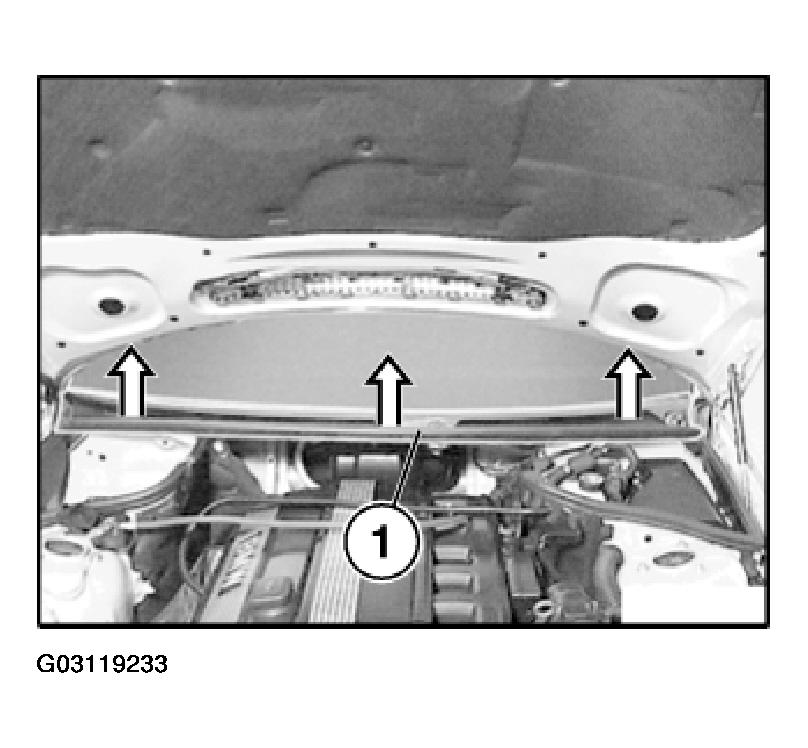

Unclip cover (1) on cowl panel.

Fig 1: Unclipping Cover On Cowl Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

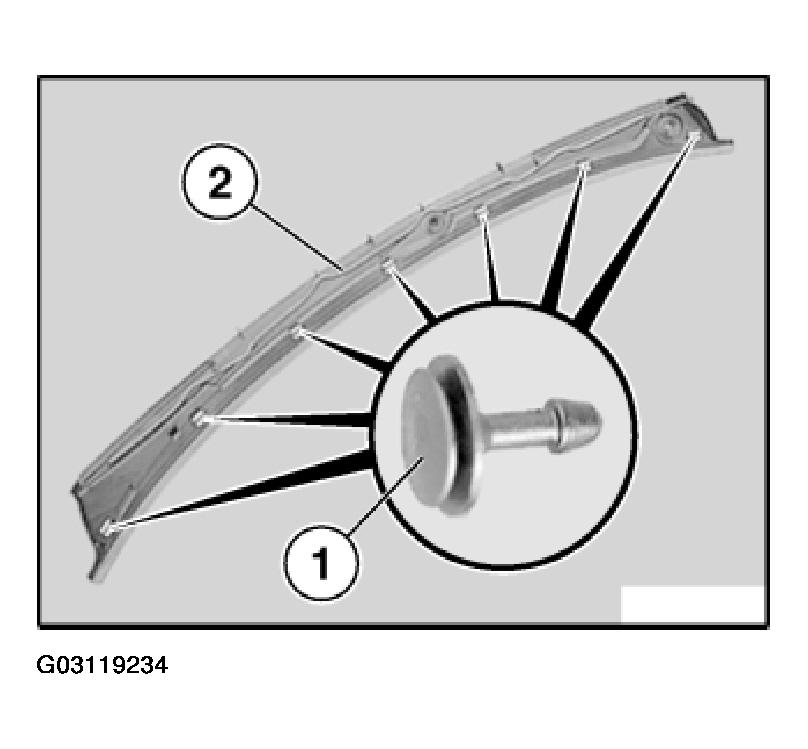

If necessary, replace faulty clips (1) in cover (2).

Fig 2: Locating Clips In Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

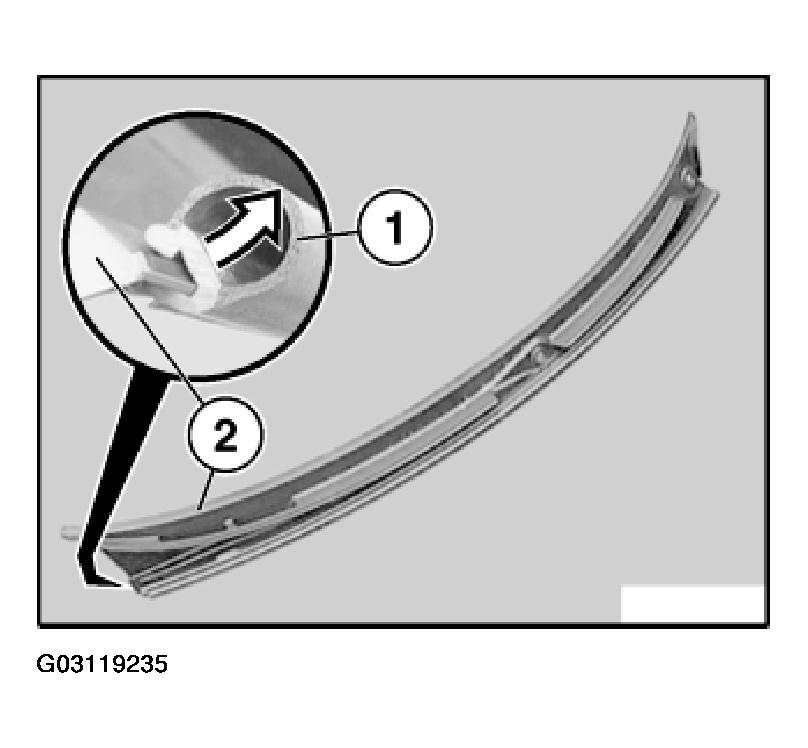

If necessary, remove seal (1) from cover (2) for cowl panel.

Fig 3: Identifying Seal In Cover For Cowl Panel

Courtesy of BMW OF NORTH AMERICA, INC.
