51 23 265 Removing And Installing/Replacing Left Or Right Gas Strut For Engine Bonnet/Hood
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury and damage! For the following tasks, you must take the appropriate measures to support the engine bonnet/hood. As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
Raise bonnet/hood lid.

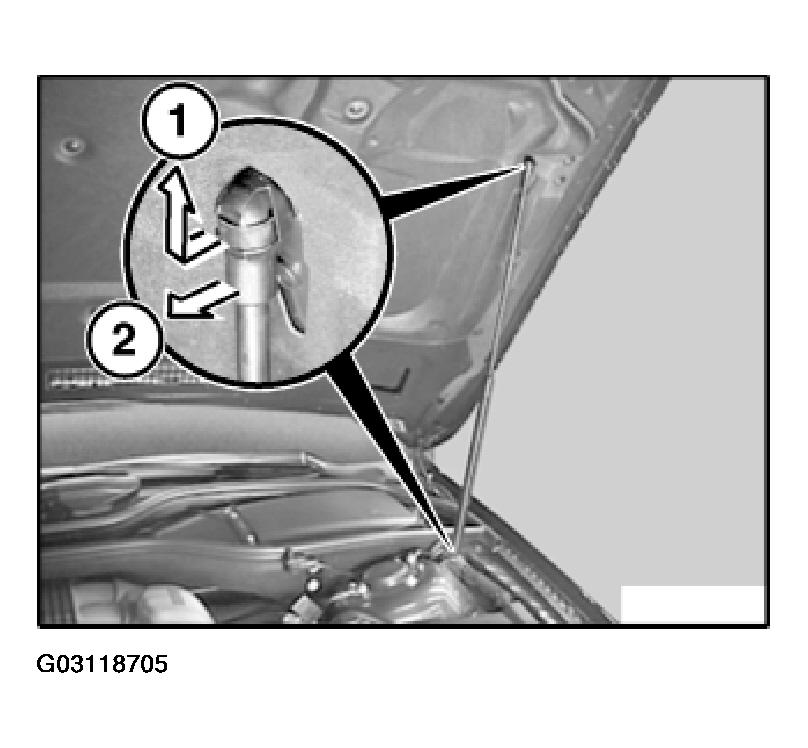

Removing gas spring strut at top and bottom:
- Push retainer spring to end of gas spring strut.
- Remove gas spring strut from ball head.
