51 21 180 Removing And Installing/Replacing Cover On Outside Handle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Coupe:

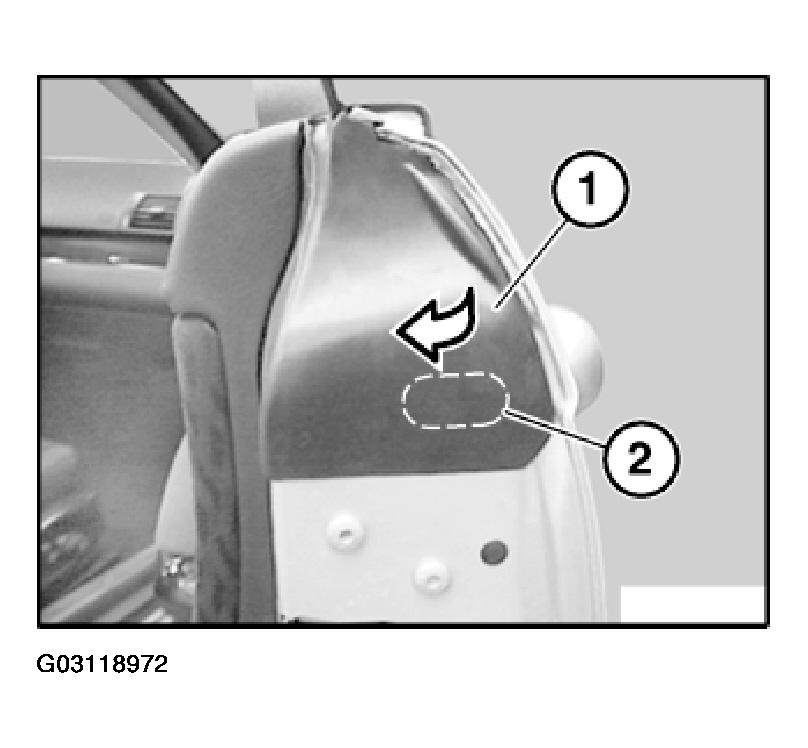

Lever out cover (1) only until bore (2) is accessible.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Sedan:

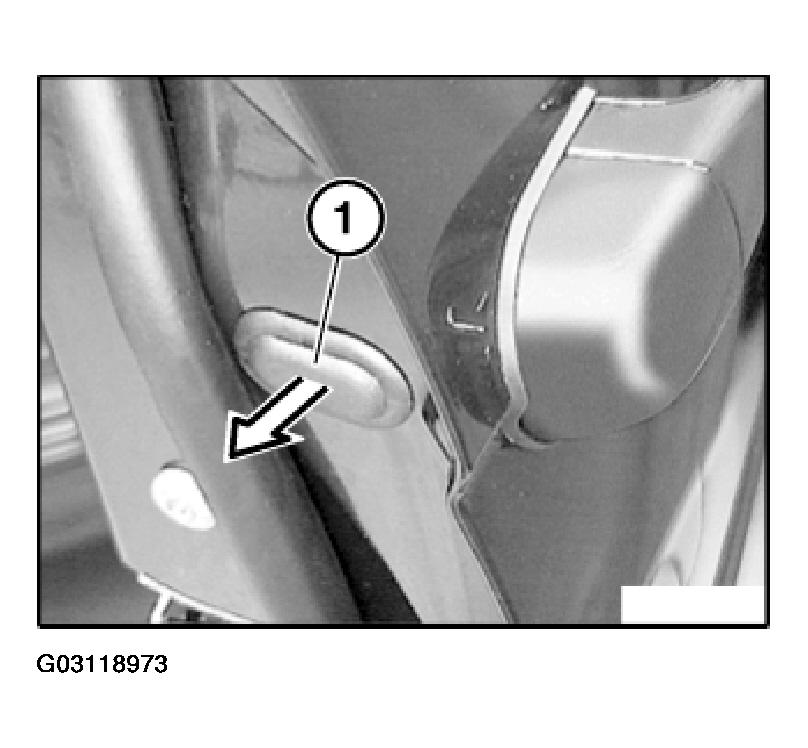

Remove plate (1).

Installation:

Fit new plate (1).

Fig 2: Removing Plate
Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Detach cover (2).

Fig 3: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

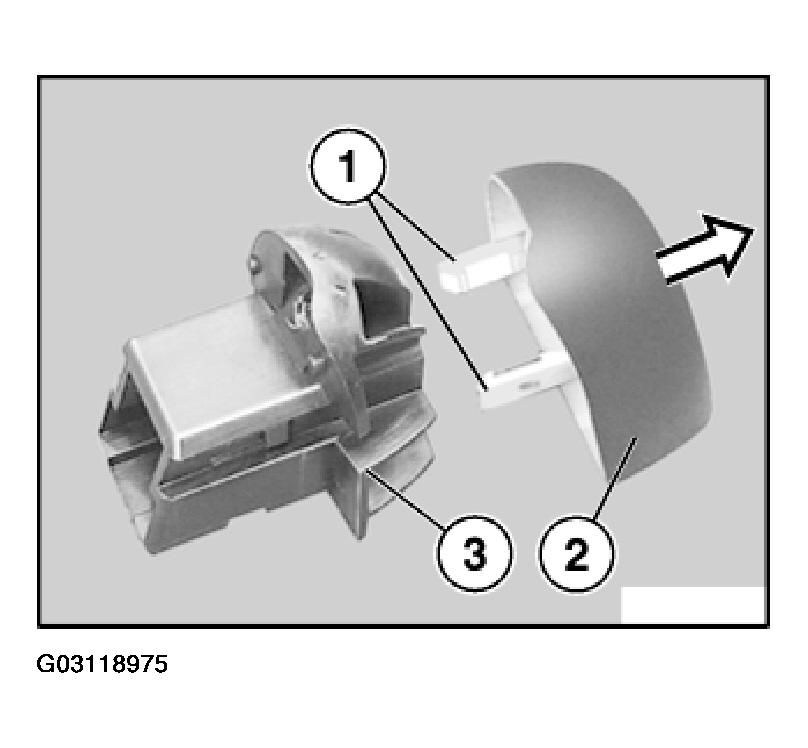

Lever out catches (1) and detach cover (2) from filler element (3).

Installation:

Catches (1) on cover (2) must not be damaged.

Fig 4: Identifying Catches On Filler Element
Courtesy of BMW OF NORTH AMERICA, INC.
