51 2. ... Removing Window Cavity Cover Strip With Special Tool 00 9 324 At Front Or Rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 318
00 9 324

Open complete door window glass.

Front door:

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (letters TOP pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (letters TOP pointing upwards).

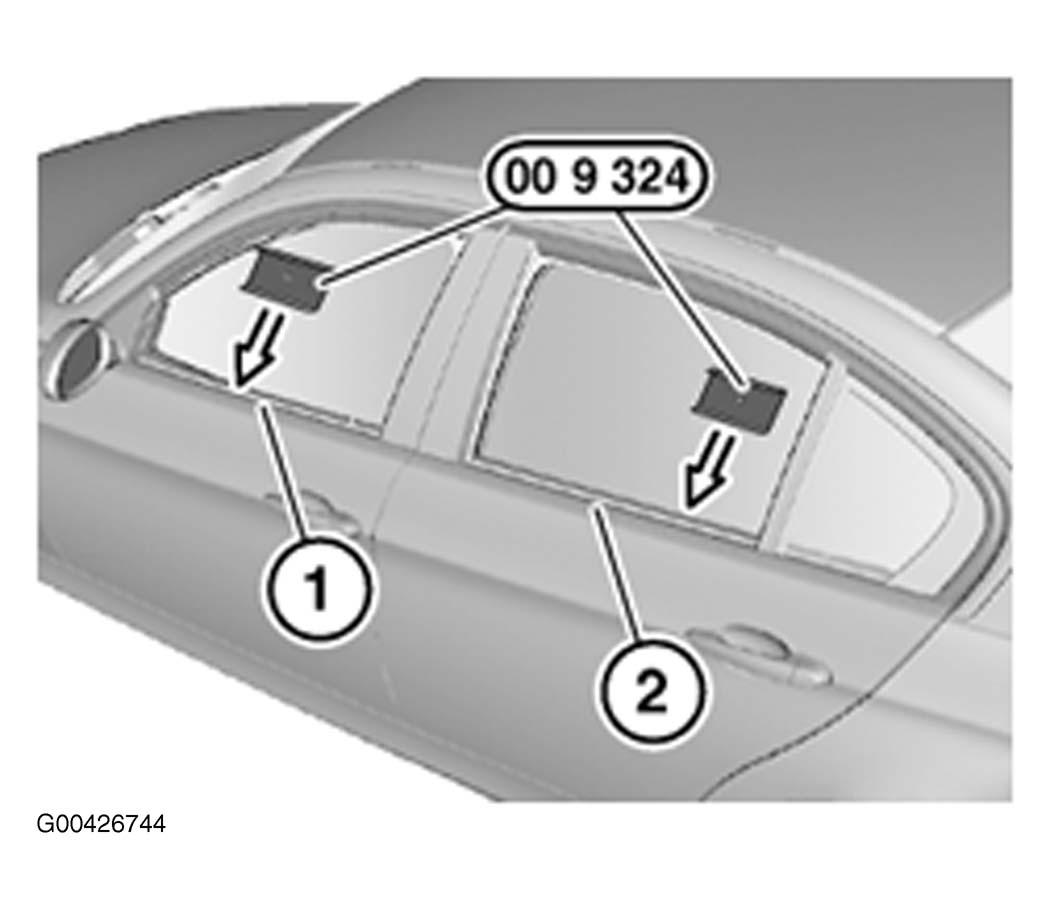

Fig 1: Inserting Special Tool Into Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows inner door panel and door window glass removed.

Special tool 00 9 324 must be correctly guided under window cavity cover strip (1).

2 Short leg, bottom.
3 Long leg, top (TOP).

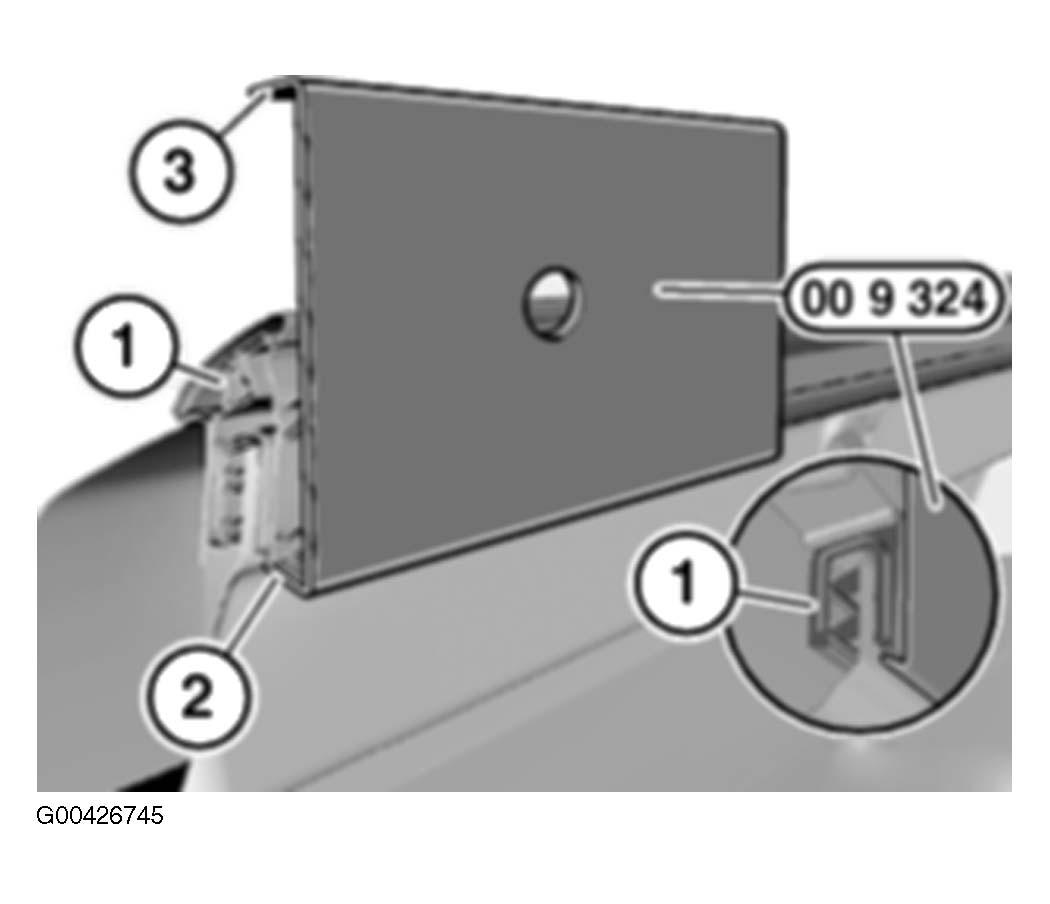

Fig 2: Aligning Assembly Wedge Under Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage! Raise window cavity cover strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

Position special tool 00 9 318 on door trim panel (1).

Slide screwdriver (2) into special tool 00 9 324 and lever window cavity cover strip (3) upwards no more than 5 mm.

Guide special tools 00 9 324 and 00 9 318 towards front/rear and lever out window cavity cover strip (3) in the process.

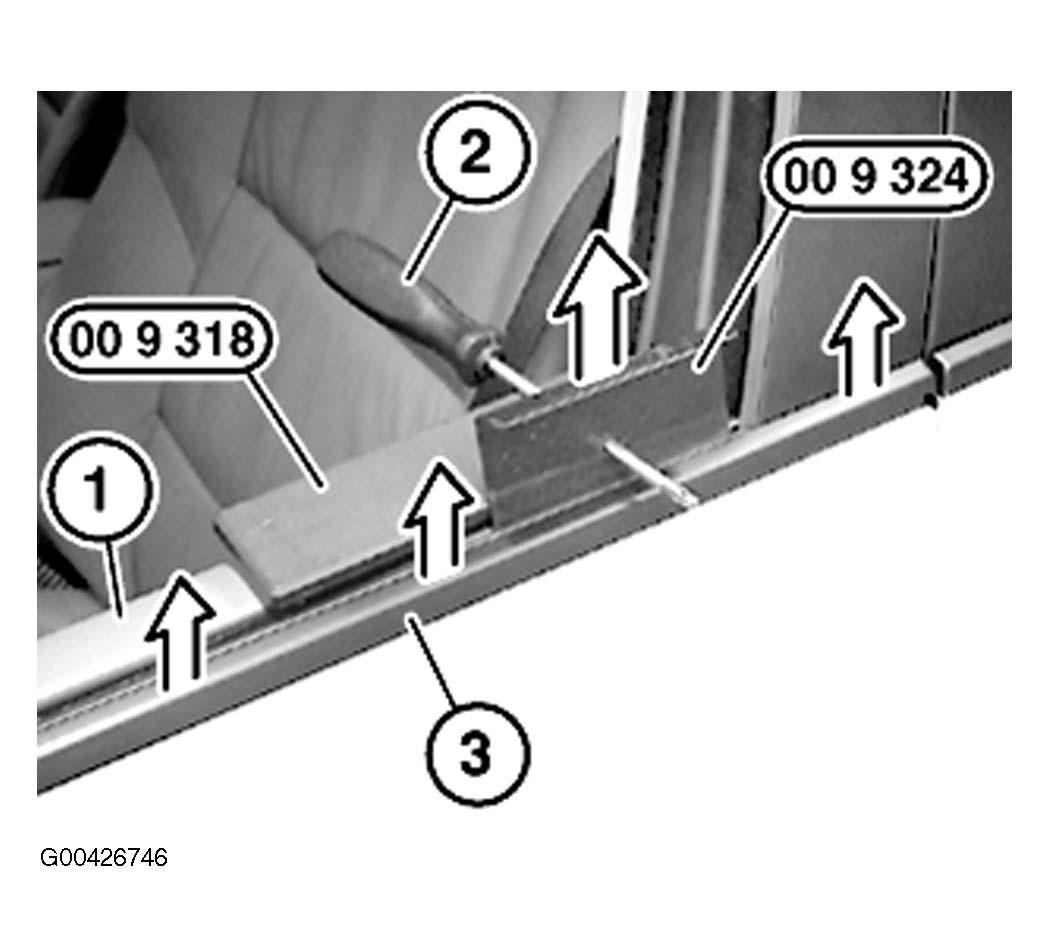

Fig 3: Raising Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
