51 11 158 Replacing Base Frame For License Plate (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove license plate.

Release screws (1).

Unlock catch (2) towards top and pull forwards a little.

Unhook base frame (3) for license plate sideways from bumper and remove.

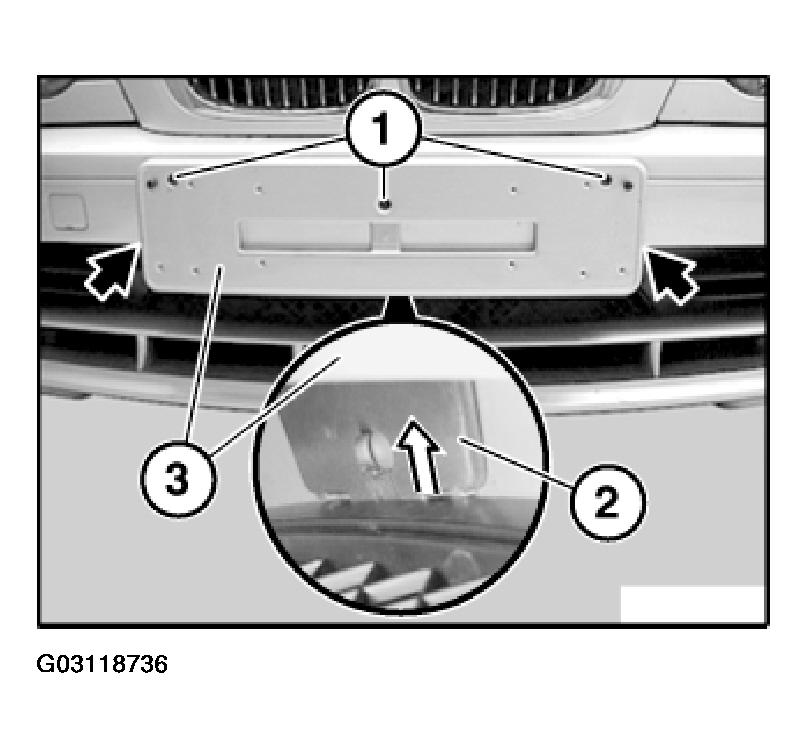

Fig 1: Releasing Screws For Base Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and (2) of base frame (3) for license plate must not be damaged.

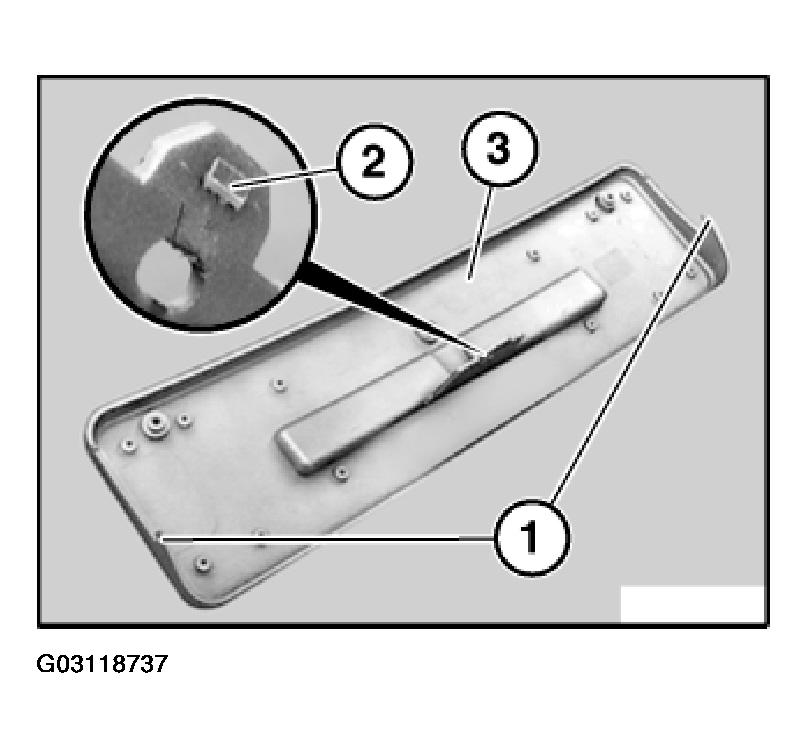

Fig 2: Identifying Catches On Base Frame For License Plate
Courtesy of BMW OF NORTH AMERICA, INC.
